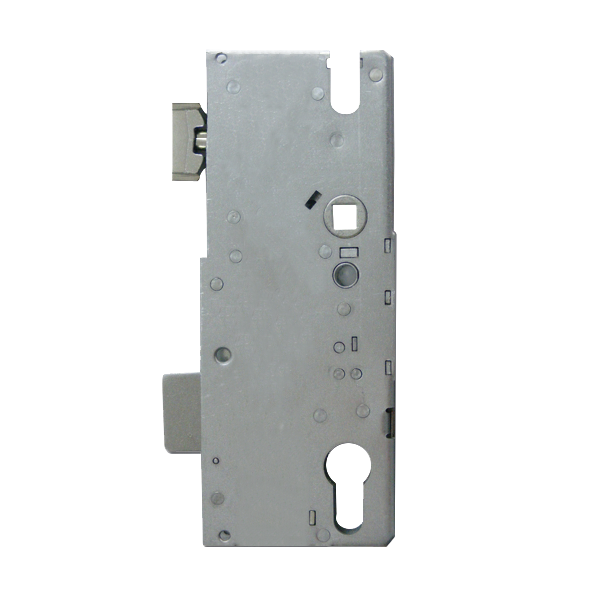

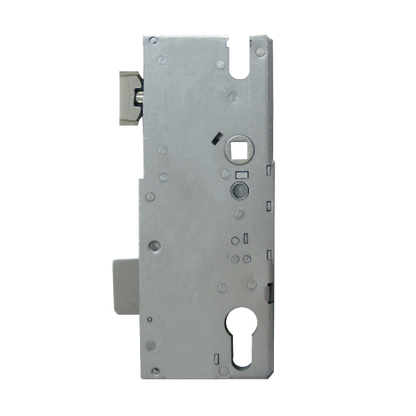

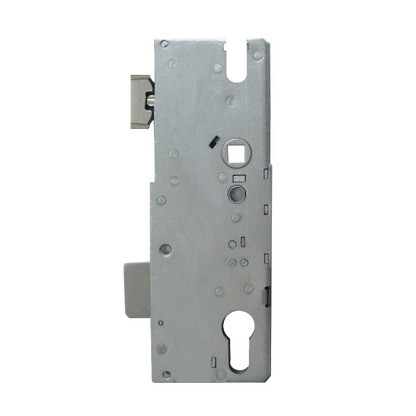

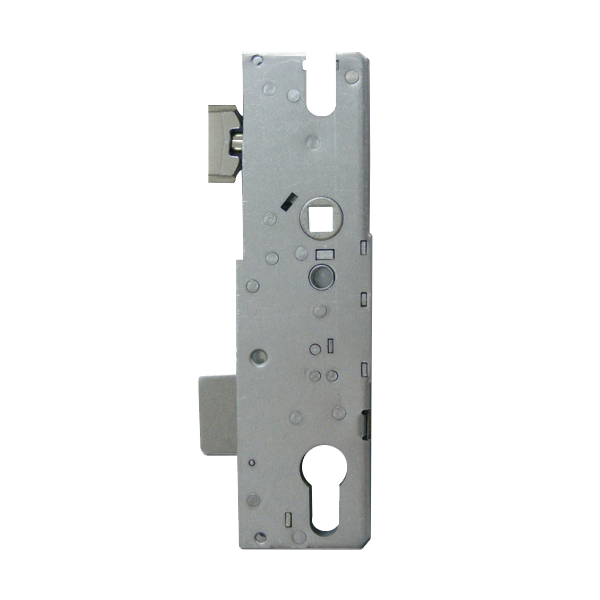

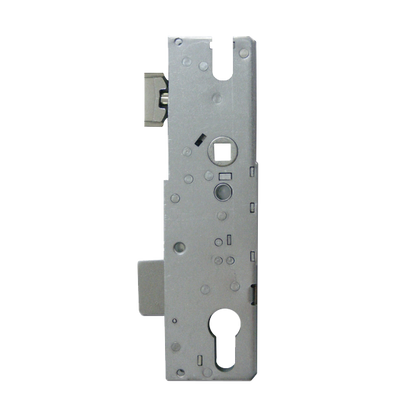

Lever Operated Latch & Deadbolt Gearbox

The WINKHAUS Lever Operated Latch & Deadbolt Gearbox is designed for versatility and ease of use, making it an excellent choice for both locksmiths and trade professionals. With options for 35mm, 45mm, or 55mm backsets and 92mm centres, this gearbox accommodates a variety of door configurations.

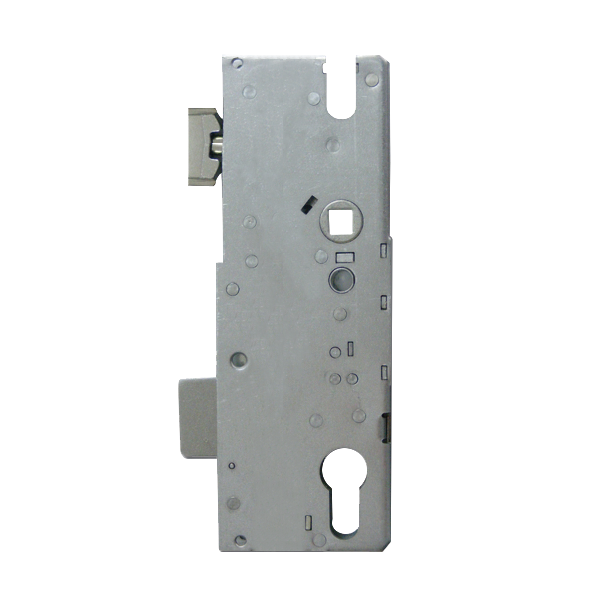

Its split spindle design, combined with a latch and deadbolt centre case, ensures robust security while maintaining a sleek profile. The 185mm case height and available case widths of 50mm, 60mm, or 70mm provide flexibility for different installations.

One of the standout features of Winkhaus gearboxes is their unique rivet fixation to the faceplate. This innovative design not only simplifies the process of swapping out gearboxes but also enhances product identification, making it easier for professionals to recognize and work with Winkhaus products.

Identification

Winkhaus gearboxes are easily identifiable due to their rivet fixation, which sets them apart from traditional screw-mounted options.

Handing

Reversing the latch is straightforward: simply insert a screwdriver into the rear of the case behind the latch, push it forward, and rotate to the desired hand.

Operation

Locking Method:

• Lift the lever to engage the locking mechanisms.
• Turn the cylinder one full turn to lock.
• To unlock, turn the key one full turn and push down on the lever.

Features

• 92mm centres
• Centre Gearbox Only
• Latch & deadbolt functionality
• Euro profile lock case

This gearbox offers a cost-effective solution for repairing or refurbishing existing door systems, allowing professionals to maintain security without the need for a complete replacement.
