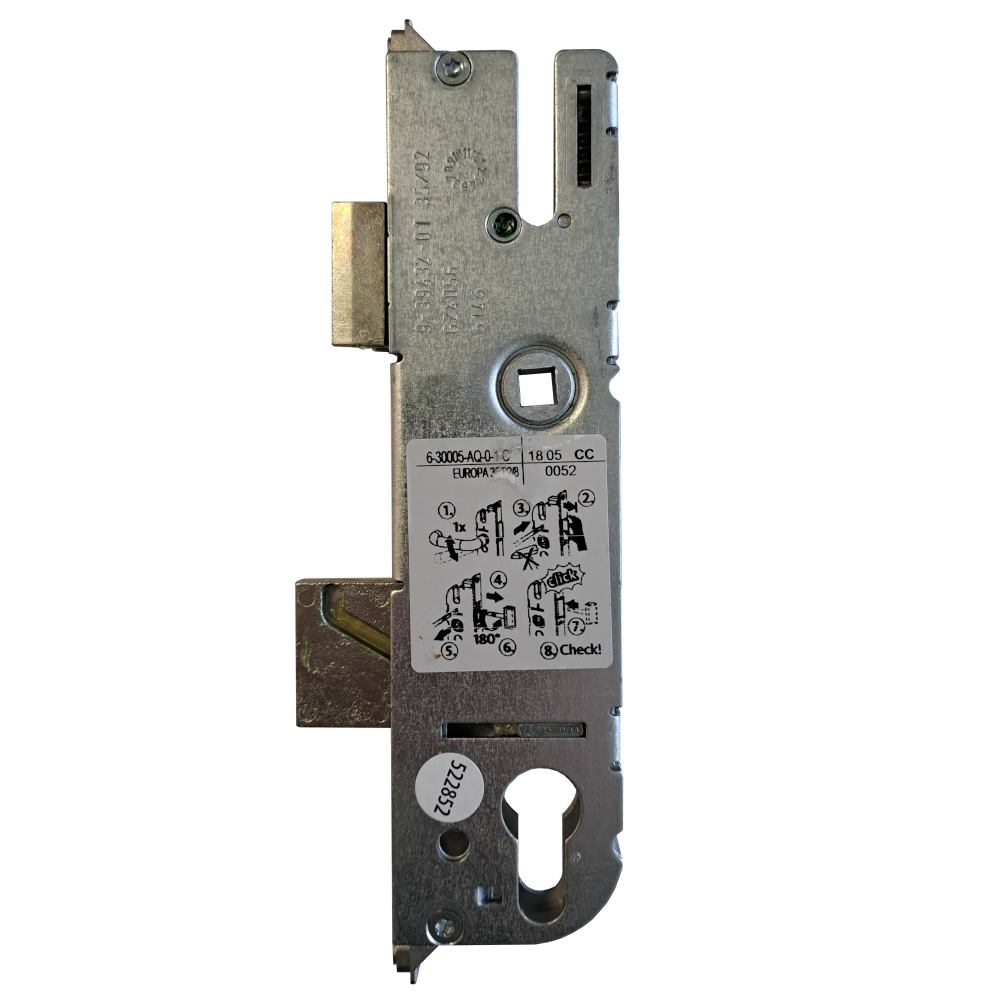

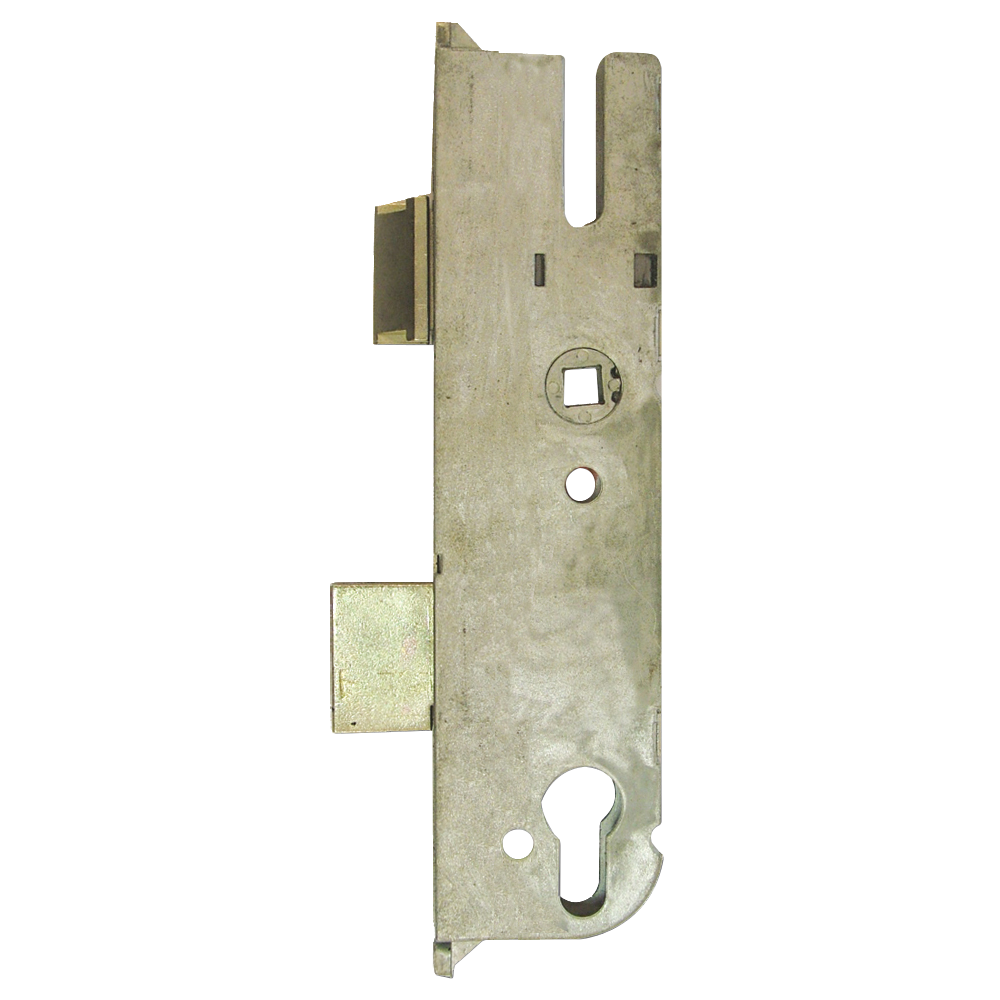

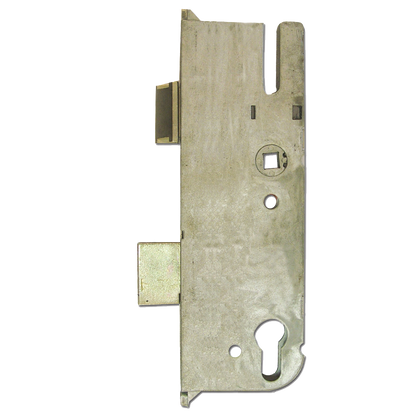

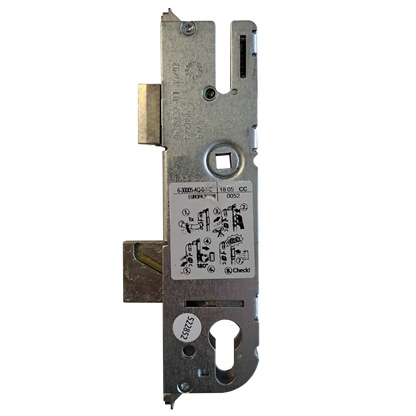

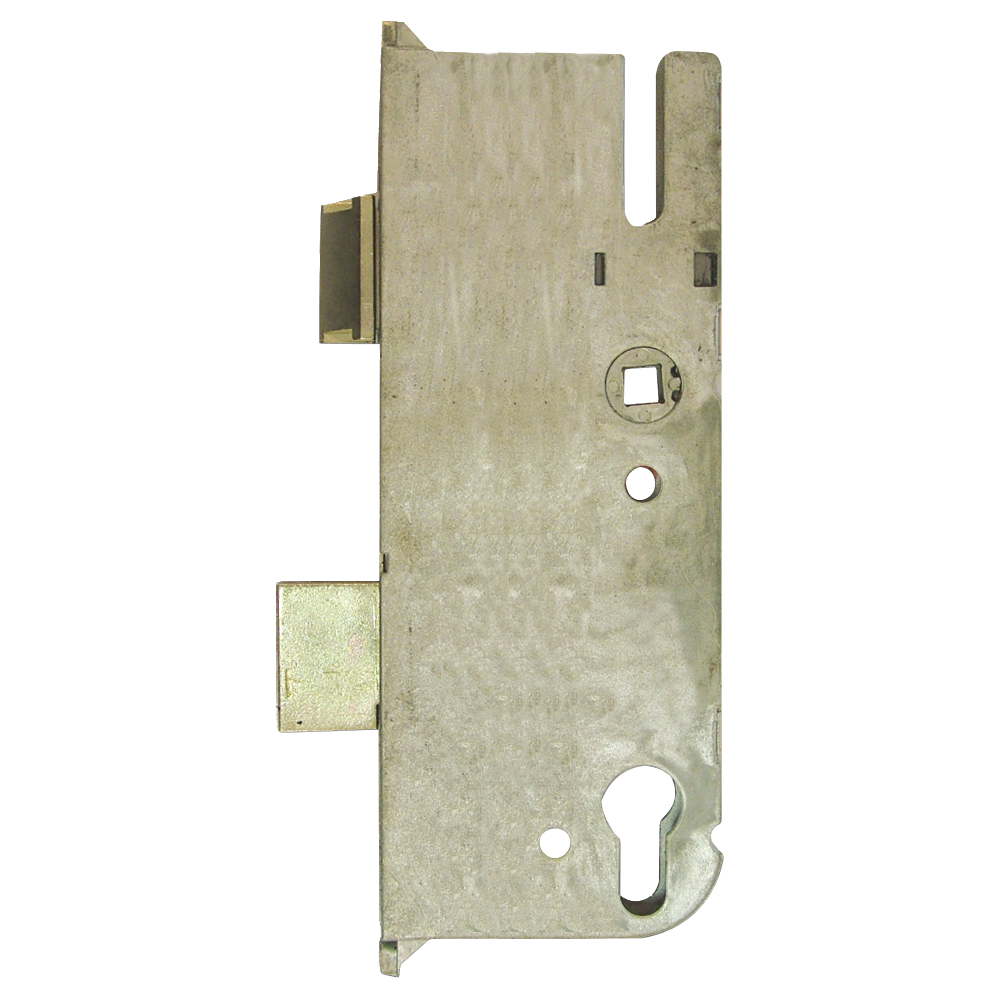

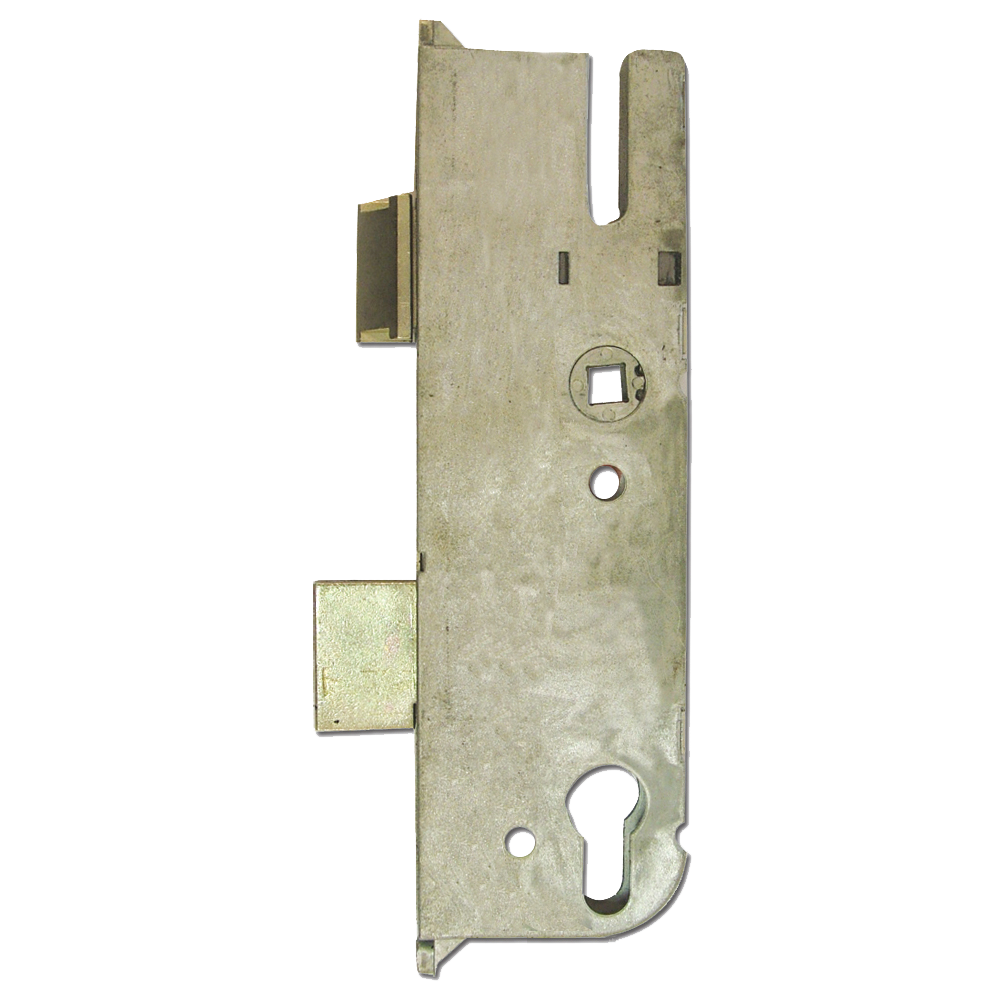

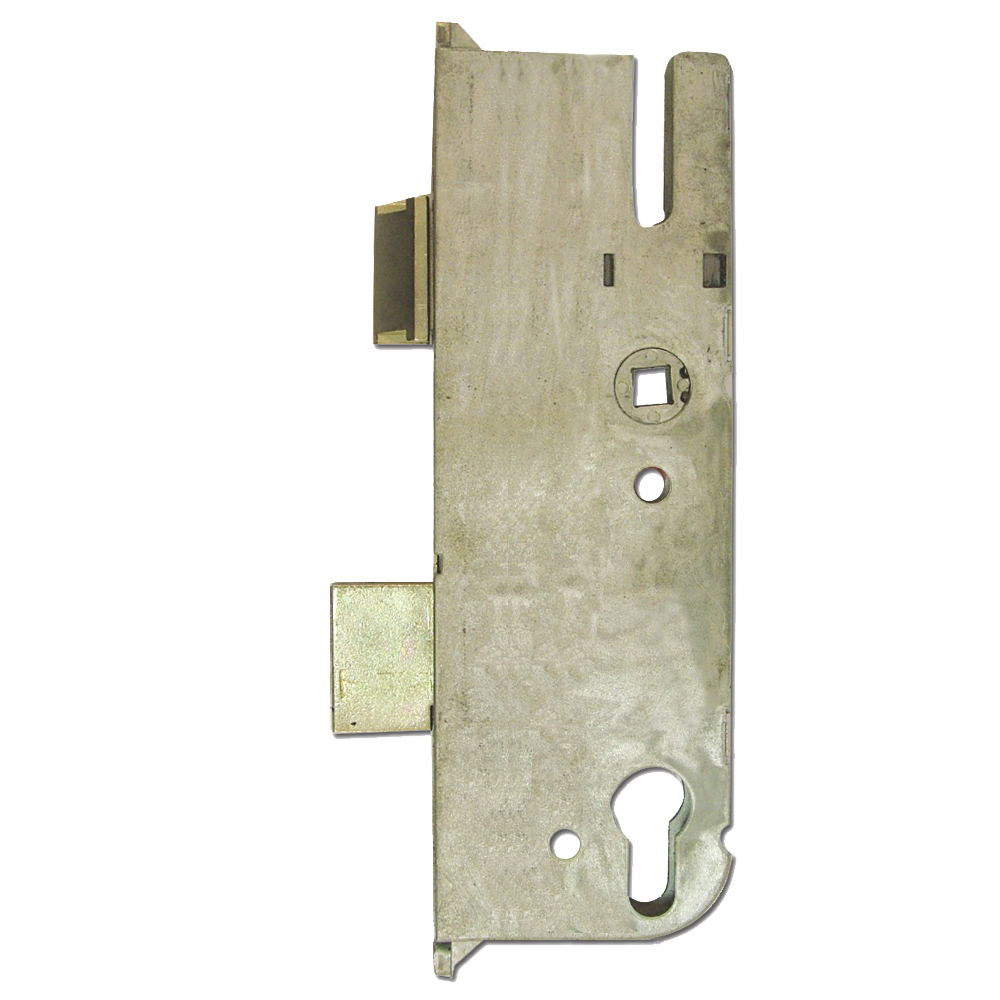

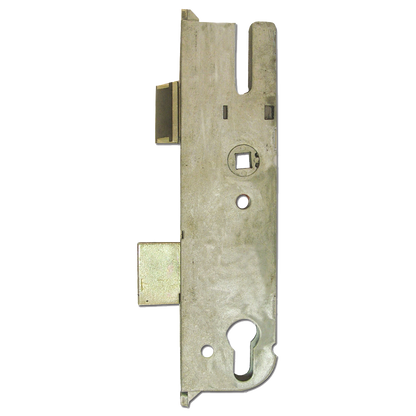

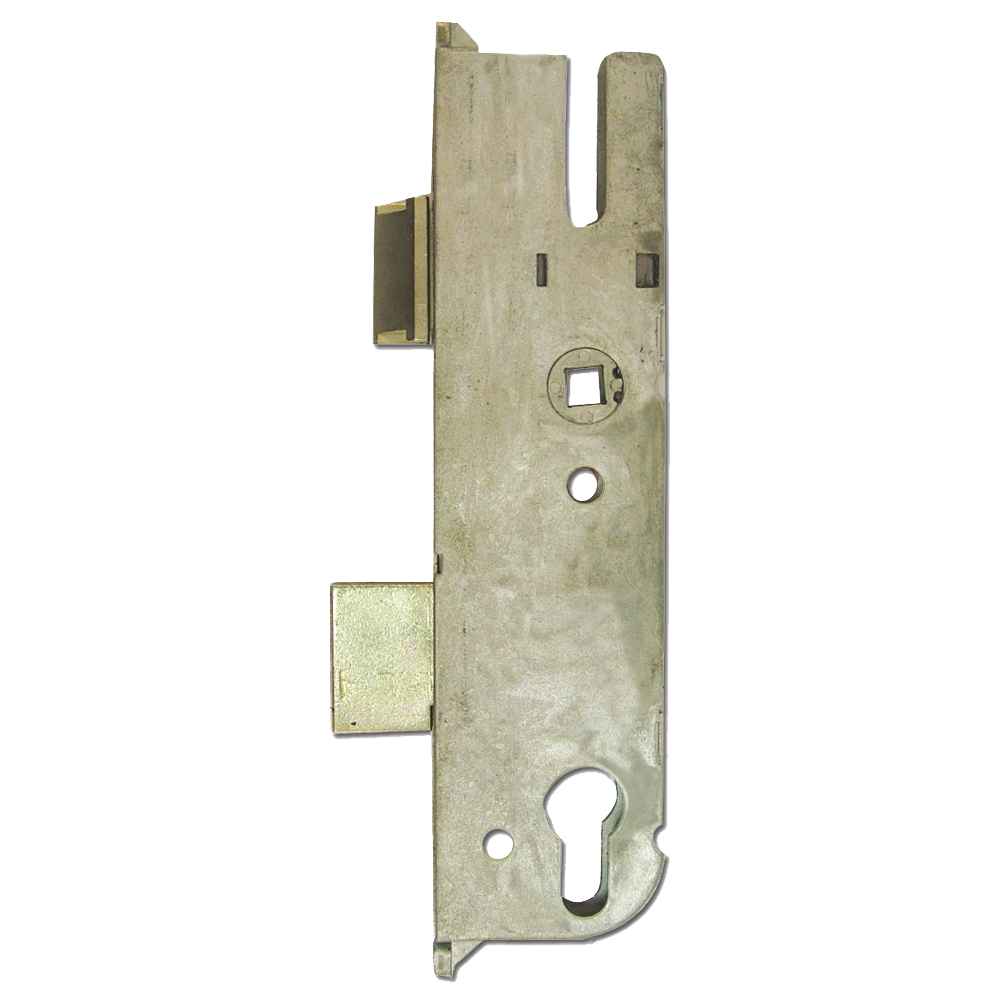

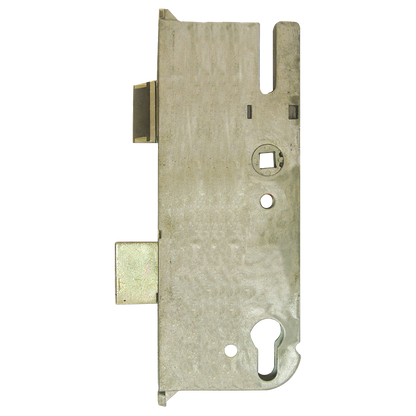

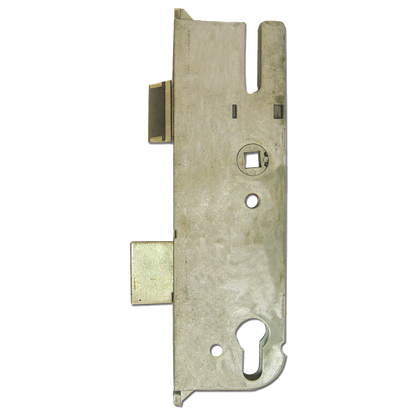

The GU Lever Operated Latch & Deadbolt Centre Case is designed for versatility and ease of use, featuring a range of backsets including 28mm, 30mm, 35mm, 40mm, 45mm, and 55mm, all with 92mm centres. This single spindle latch and deadbolt centre case boasts a compact design with a case height of 195mm and width options of 45mm, 50mm, 55mm, or 70mm.
This product serves as an economical repair solution for common lock failures, especially when the existing locking strip is still functional.
Handing Reversing the latch is straightforward. Simply insert a flat-bladed screwdriver into the vertical slit on the side of the lockcase, remove the latch, reverse it, and reinsert it into the case. You’ll hear a click when it’s properly engaged.
Operation
Locking Method: Lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to secure the lock. To unlock, turn the key one full turn and push the lever down.
Features
Single spindle
Centre gearbox only
Latch & deadbolt
Euro profile lock case
This centre case is an ideal choice for those looking to enhance security without the need for a complete lock replacement.
