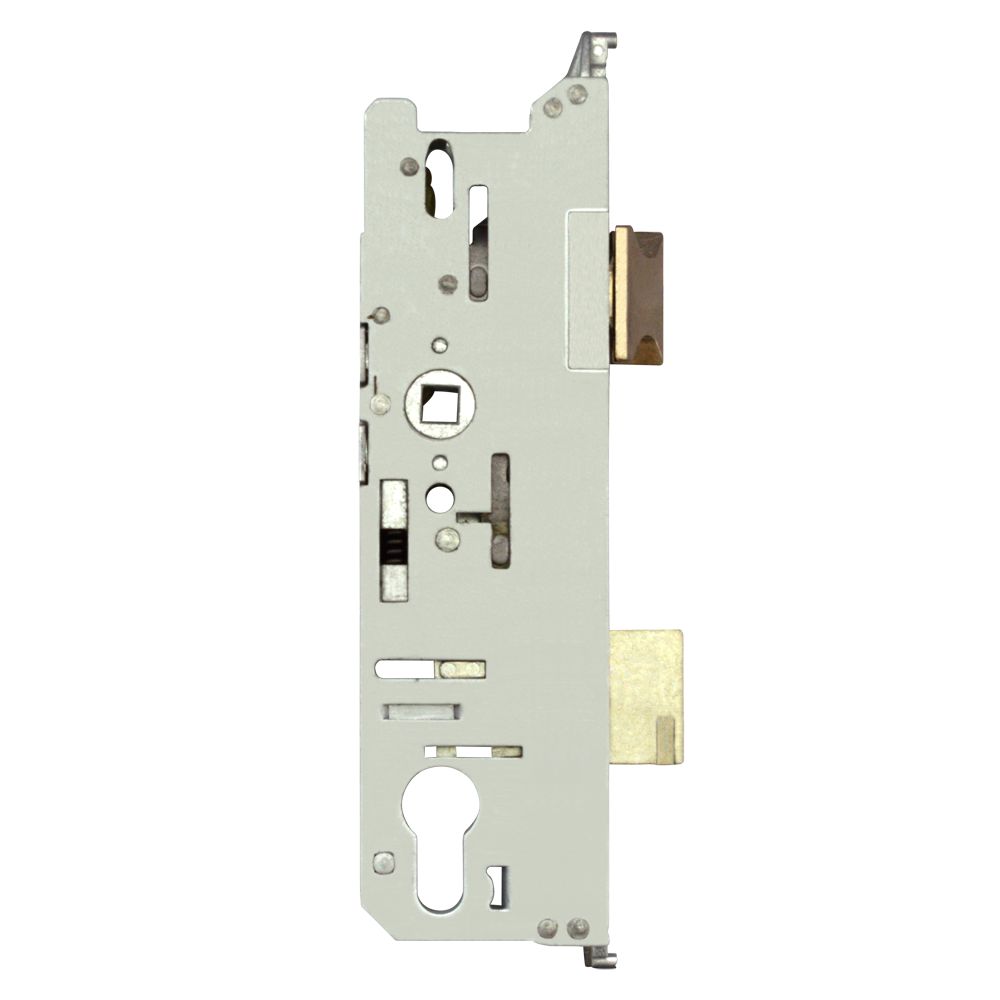

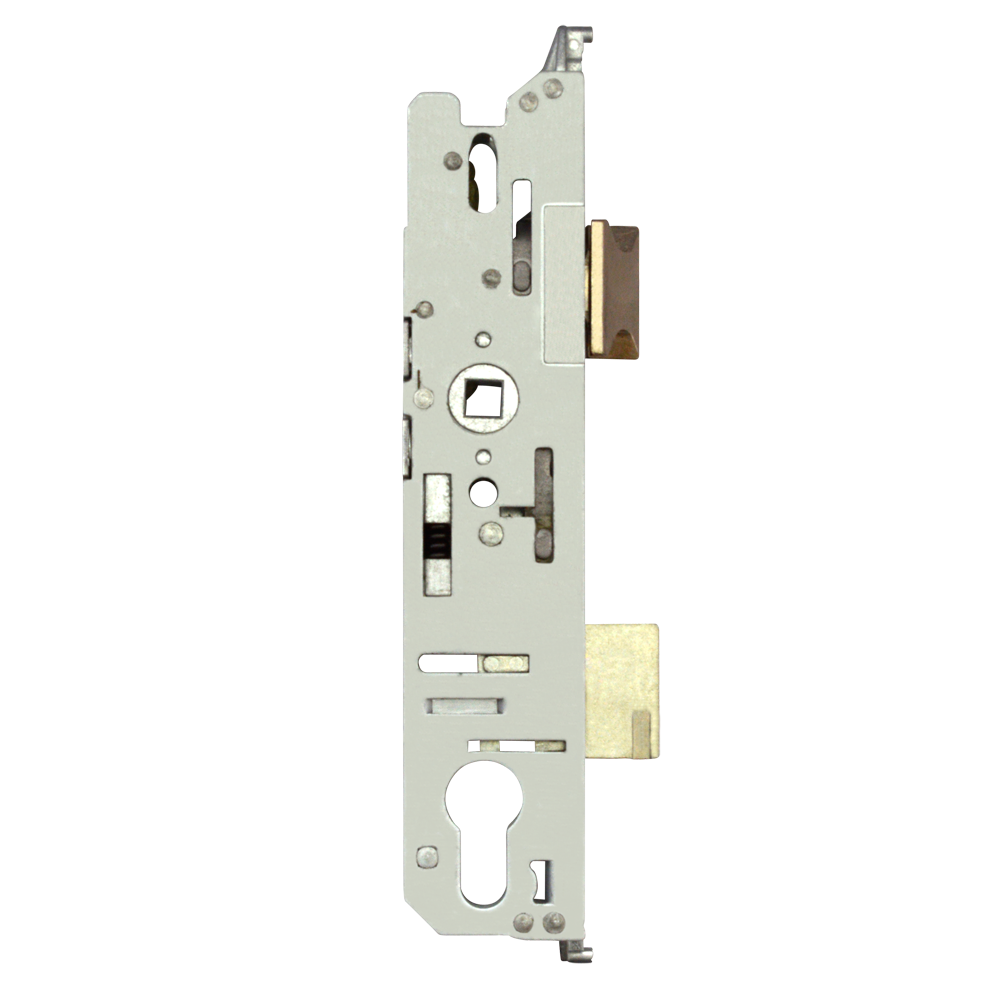

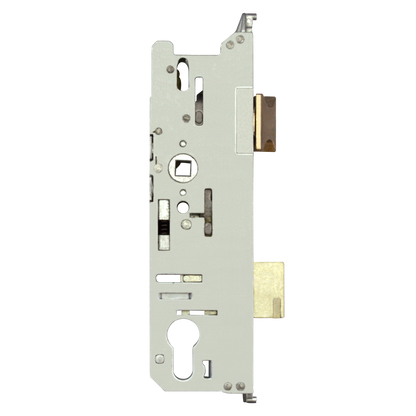

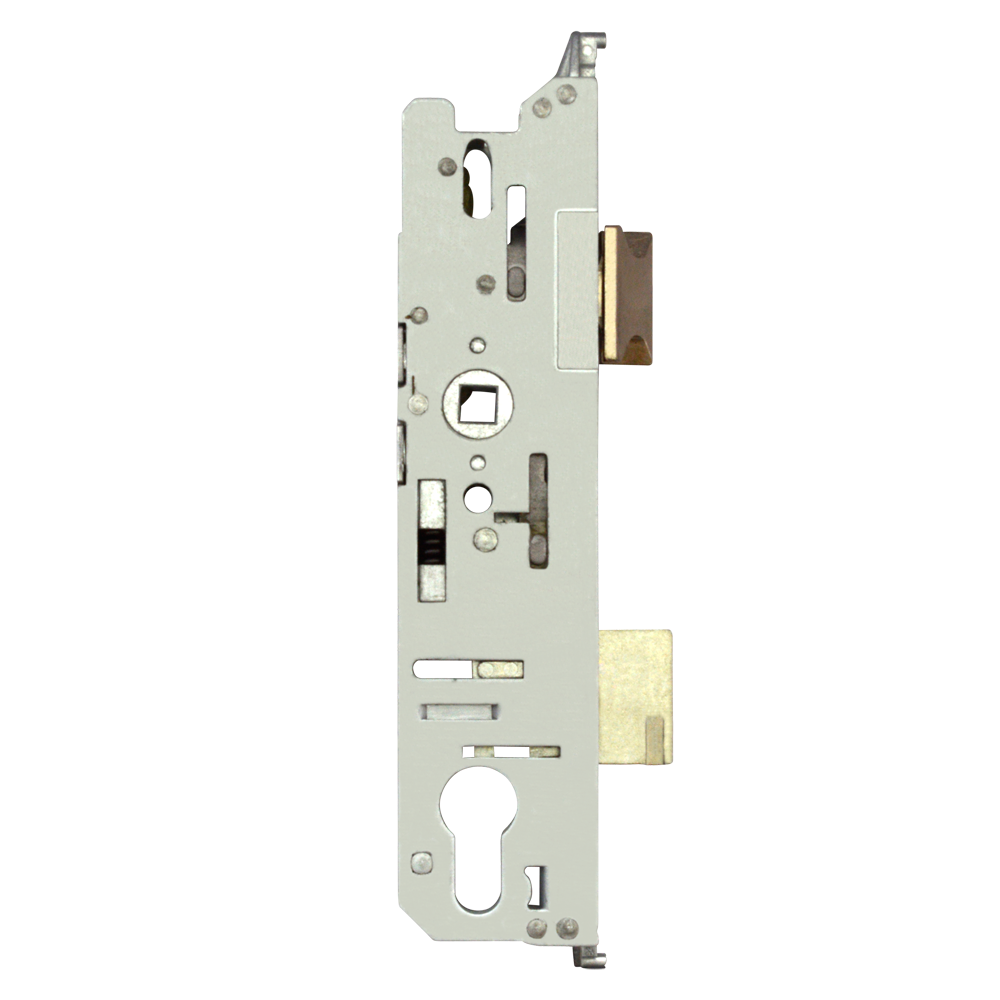

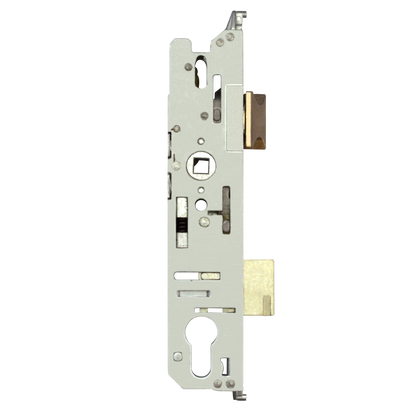

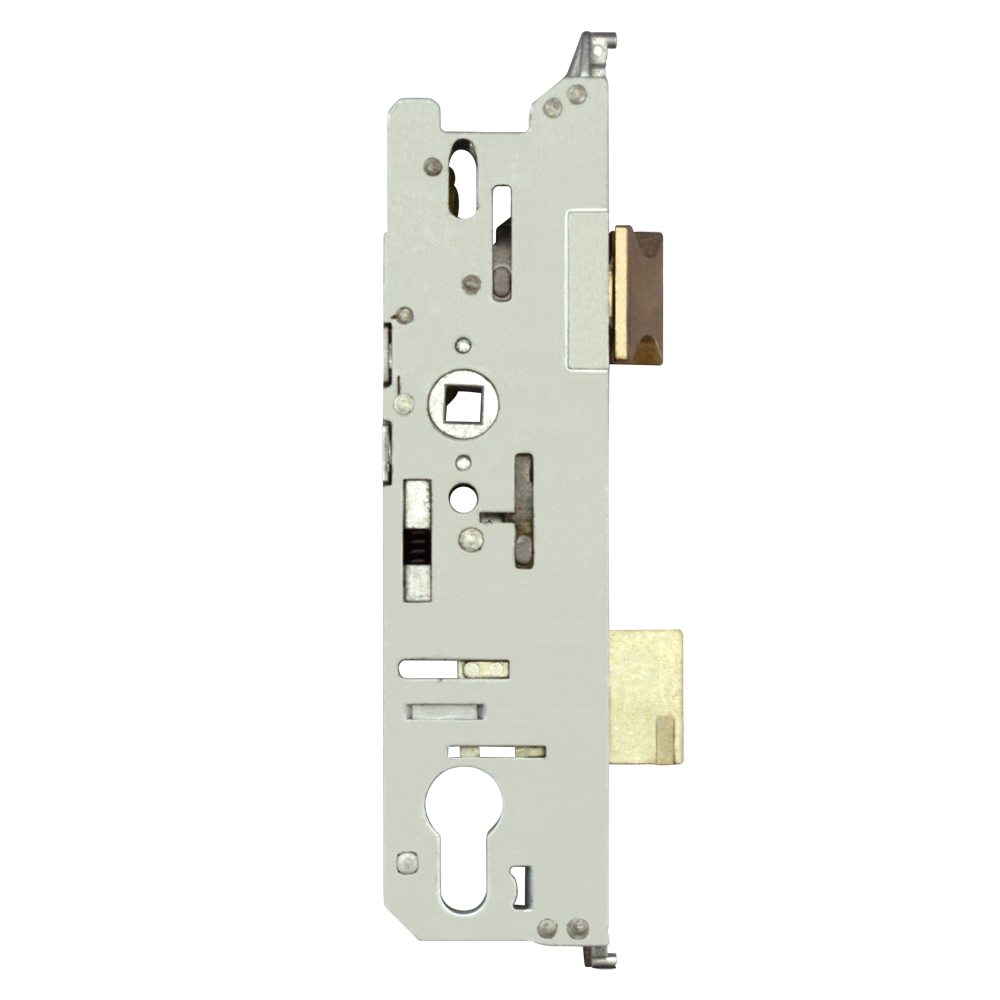

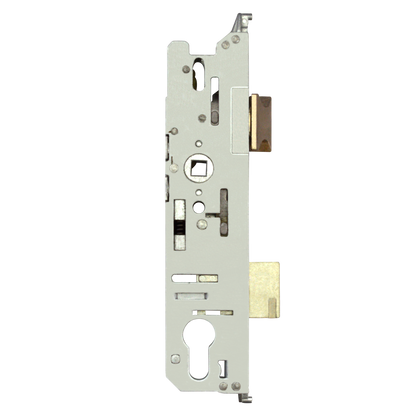

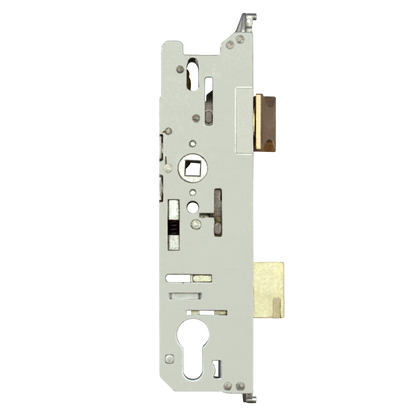

The FUHR Lever Operated Latch & Deadbolt Centre Case is engineered for versatility and reliability, accommodating various backsets from 25mm to 65mm with 92mm centres. This single spindle centre case, measuring 200mm in height, offers multiple case width options ranging from 40mm to 80mm, making it an ideal choice for diverse installations.
Designed specifically for FUHR multipoint locks, this centre case features a robust latch and deadbolt configuration, ensuring enhanced security for UPVC and composite doors. It serves as a direct replacement for failed gearboxes, allowing installers to maintain the existing locking strip, thus simplifying the replacement process.
Handing
To reverse the latch, locate the Allen screw on the side of the lockcase aligned with the latch. Simply remove the screw, reverse the latch, and reinsert the screw to complete the process.
Operation
Locking Method:
To Lock: Lift the lever to engage the locking mechanisms, then turn the cylinder one full turn.
To Unlock: Turn the key one full turn and push the lever down.
Important Notes
The necessary ball bearing, screw, and spring for operation must be purchased separately. The corresponding Aldridge product codes are L23669, L23670, and L23671.
Features
Ball bearing, spring, and screw must be purchased separately (L23669, L23670 & L23671)
Single spindle design
Centre gearbox only
Latch and deadbolt configuration
Compatible with Euro profile lock cases
This centre case combines functionality with ease of installation, making it a reliable choice for securing your doors effectively.
