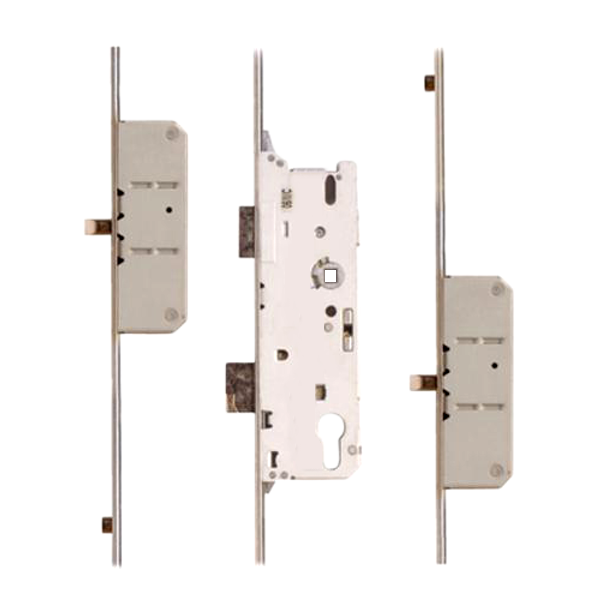

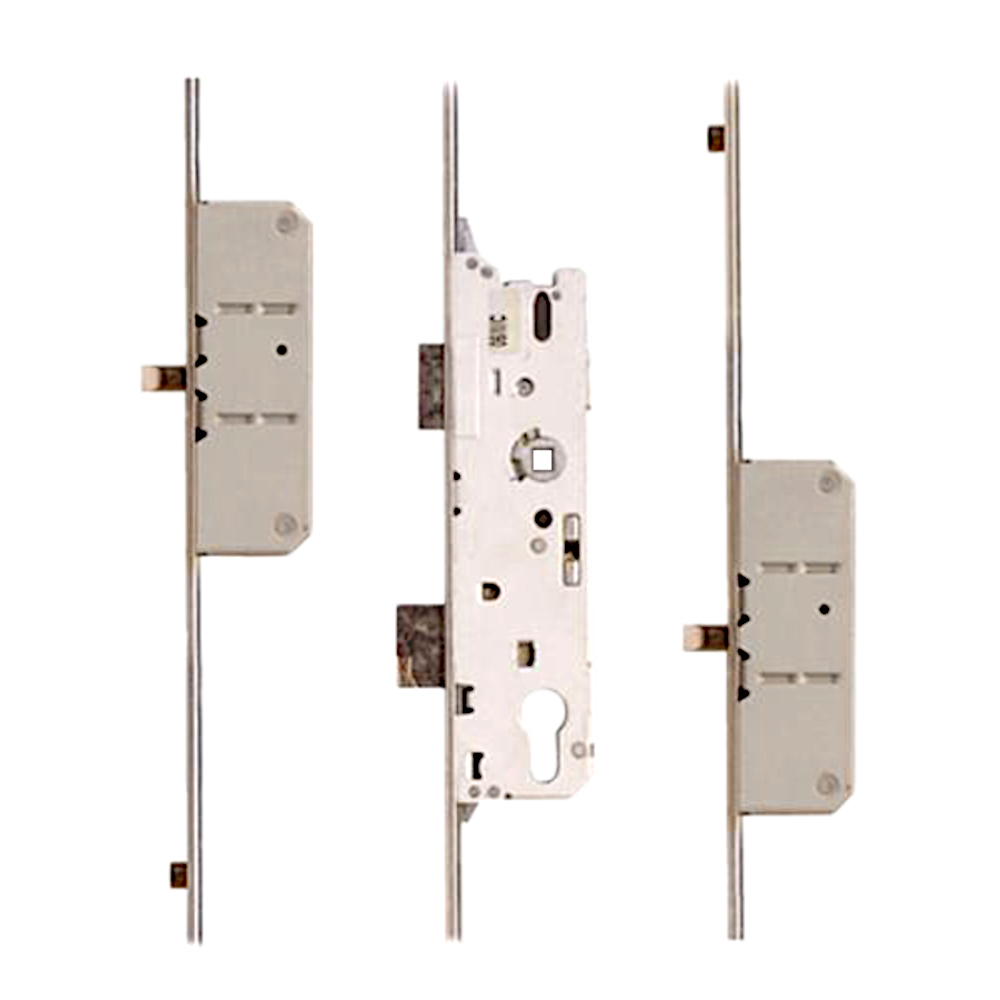

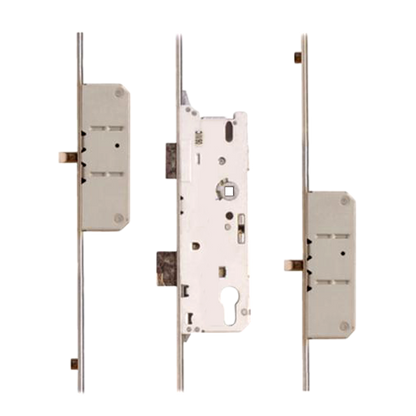

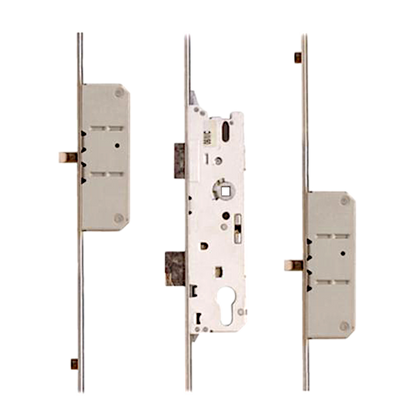

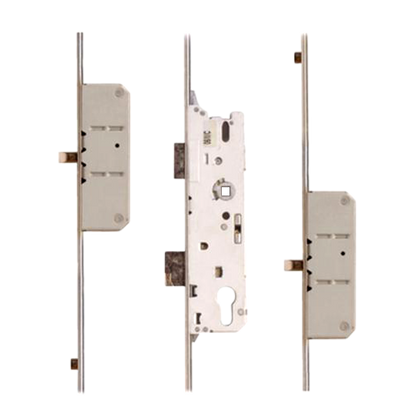

Lever Operated Latch & Deadbolt - 2 Round Bolt 2 Roller

The FUHR Lever Operated Latch & Deadbolt is designed for optimal security and ease of use, featuring a robust construction with a 30mm or 35mm backset and 92mm centres. With a case height of 200mm and a width of either 45mm or 50mm, this unit is versatile for various door applications.

The internal mechanism includes a single spindle and a latch & deadbolt centre case, ensuring reliable performance. If components like the ball bearing, screw, and spring are not retained from your existing unit, they can be purchased separately (refer to Associated Products for details). The sliding strip is ingeniously designed with a notch that allows the spring-loaded ball bearing to engage, providing a secure and defined locking action when the handle is operated.

Identification

Look for the "FUHR" stamp on the faceplate, which also features two distinctive round bolt locking points for added security.

Gearbox Specifications

• Single Spindle: Ensures smooth operation.
• Case Height: 200mm
• Case Width: Available in 45mm or 50mm

Additional Locking Points

Beyond the gearbox, the full-length strip includes:

• 2 round bolt locking points
• 2 roller locking points

Faceplate Details

The 16mm wide faceplate is specifically designed for UPVC applications, with an overall length of 2170mm, making it suitable for various door sizes.

Locking Point Distances

• Distance A: 358mm
• Distance B: 342mm
• Distance C: 729mm
• Distance D: 762mm

Croppable Feature

This full-length unit can be cropped to fit the specific height of your door, providing flexibility during installation.

Handing Instructions

To reverse the latch, locate the Allen screw on the side of the lockcase aligned with the latch. Remove the screw, pull out and reverse the latch, then reinsert the Allen screw.

Sprung/Unsprung Mechanism

The gearbox is sprung, featuring an internal spring mechanism that aids in lever return, eliminating the need for sprung handles or a separate spring cassette.

Operation Instructions

Locking Method:

1. Lift the lever to engage the locking mechanisms.
2. Turn the key one full turn to lock.
3. To unlock, turn the key one full turn and push down on the lever to disengage the locking mechanisms.

Key Features

• Locking Method: Lift lever to engage, then one full turn of the cylinder to lock.
• Faceplate Width: 16mm
• Single Spindle Design: Ensures reliability.
• Latch & Deadbolt Functionality: Provides enhanced security.

This comprehensive locking solution is ideal for those seeking a reliable and efficient locking mechanism for their doors.
