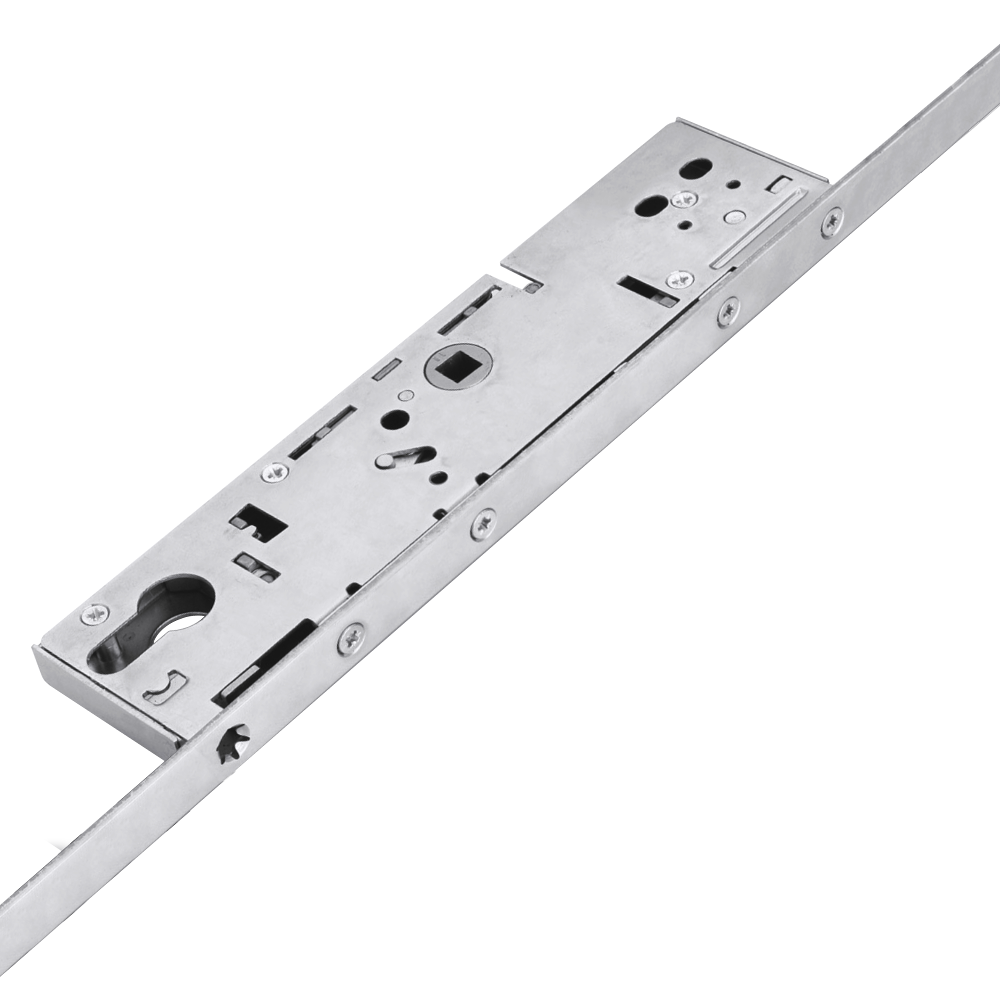

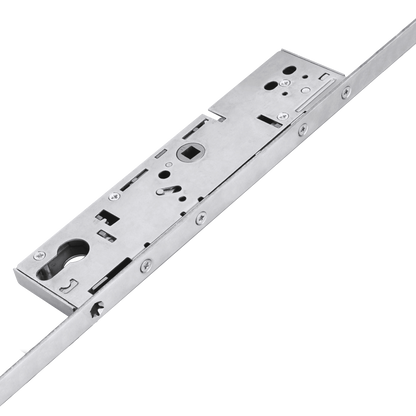

Lever Operated Euro Profile Slave Lock

The ERA Lever Operated Euro Profile Slave Lock is designed for versatility and security, making it an ideal choice for various door types. Here’s a detailed overview of its specifications and features:

Specifications

• Backset Options: Available in 30mm, 35mm, or 45mm
• Centres: 92mm
• Case Height: 220mm
• Case Width: 48mm, 53mm, or 63mm
• Overall Length: 1800mm
• Single Spindle Operation: The slave centre case operates with a single spindle.

Suitable Applications

This lock is perfect for the slave leaf of:

• French doors
• Patio doors
• Sliding doors

Installation Notes

• Shootbolt Extensions: To form a complete unit, it should be fitted with shootbolt extensions. An additional extension piece can be added for extra length if needed.
• Faceplate Identification: The faceplate is stamped with "ERA" and does not include integral locking points.

Gearbox Details

• Gearbox Type: Features a single spindle
• Case Dimensions: Height of 220mm and width options of 48mm, 53mm, or 63mm based on the selected backset.

Locking Mechanism

• Additional Locking Points: This unit does not have locking points unless equipped with top and bottom shootbolts.
• Shootbolts Requirement: It is essential to fit optional top and bottom shootbolts to create a complete locking system.

Faceplate Features

• Width: 16mm, suitable for UPVC and composite door applications
• Length: Overall faceplate length is 1800mm
• Croppable: The full-length unit can be cropped to adjust the strip height for specific door installations.

Handing and Operation

• Handing: Not applicable, as the mechanism is non-handed.
• Sprung Mechanism: The gearbox is sprung, featuring an internal spring mechanism that aids in lever return, eliminating the need for sprung handles or a separate spring cassette.

Operation Instructions

1. To Lock: Lift the lever to engage the shootbolt locking mechanisms, then turn the cylinder one full turn.
2. To Unlock: Turn the key one full turn and push the lever down.

Additional Notes

• This unit requires the installation of top and bottom shotbolts for optimal security. Please refer to related items for purchasing shoot bolts.

Key Features

• Euro cylinder profile
• Accepts standard 92mm unsprung handles
• Shootbolts sold separately
• Easy-fit packer system for alternative profiles
• Non-handed mechanism
• 16mm faceplate

This comprehensive overview ensures you have all the necessary information to effectively utilize the ERA Lever Operated Euro Profile Slave Lock in your projects.
