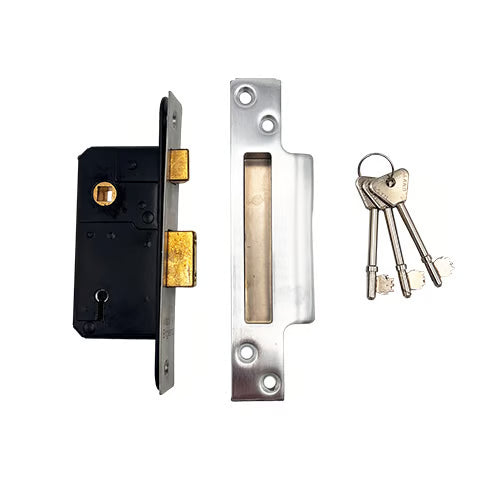

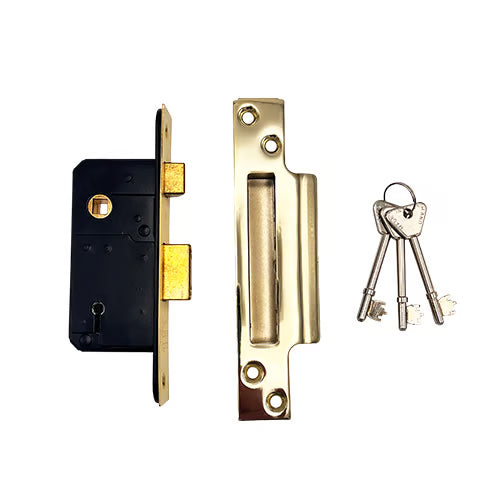

Legge Replacement 5512 Non British Standard 5 Lever 2" Mortice Sashlock

Product Overview

Introducing our 2" 5 Lever Mortice Sash Lock, a reliable and efficient solution for securing your internal and external wooden hinged doors. Originally manufactured by Legge, this lock serves as a direct replacement for the original model. Please note that it does not meet the requirements of BS3621.

Key Features

• Compact Design: Ideal for narrow stiles, accommodating doors where a 2.5" or 3" lock cannot fit.

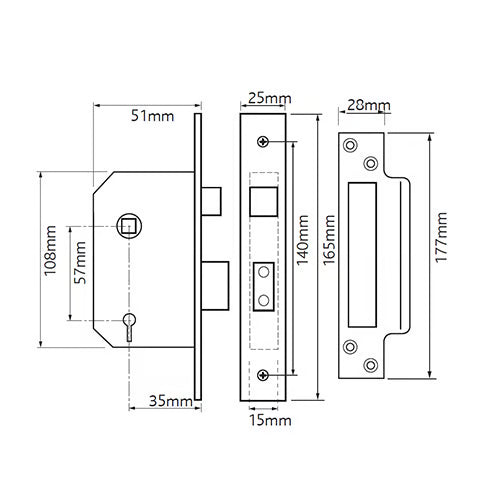

• Unique Measurements: Each lock features a black case with specific measurements. Refer to the line drawing for precise details.
• Deadbolt Specifications: The deadbolt throws 14mm and can be locked/unlocked from either side using a key. The latch is easily withdrawn by moving the handle from either side.
• Security Striking Box: Supplied with a matching security striking box for enhanced protection.
• Versatile Fit: Suitable for doors up to 54mm thick. For thicker doors, we can provide extra-long keys upon request.
• Non-Handed Design: This lock can be used on doors hinged on either side, opening inwards or outwards.
• Key Supply: Comes with 3 nickel-plated steel keys. Additional keys can be cut upon selection of genuine or copy key blanks.
• Associated Parts Available: We stock a variety of related components, including key blanks and rebate sets for double doors.

Installation Notes

• Mortice Lock Definition: A mortice lock is installed within the door, providing a clean and secure fit.
• Types of Lever Locks: Understand the difference between dead locks and sash locks. Sash locks feature both a deadbolt and a latch, enhancing functionality.
• Replacement Considerations: When replacing an existing lock, be aware that the new lock may differ in size. Adjustments can be made using a hammer and chisel if necessary.
• Recommended Tools: For new timber doors, we recommend using Souber’s DBB morticer for efficient installation.
• Minimum Thickness: Ensure your door meets the recommended minimum thickness of 44mm for proper lock fitting.

Security Assurance

A lever mortice lock secures a door by throwing a bolt into a metal keep or strike, preventing unauthorized access. The lock operates with a key that aligns with internal levers, ensuring only the correct key can engage or disengage the bolt.

Delivery Information

At Duffells, we offer a vast selection of mortice locks with various security levels, all available for delivery within 24 hours. Explore our express and standard delivery options on our delivery info page.

Product Specifications

• Product Category: Mortice Sashlock
• Product Type: 5 Lever
• Case Colour: Black
• Case Height: 108mm
• Centres: 57mm
• Faceplate Height: 165mm
• Faceplate Width: 25mm
• Deadbolt Throw: 14mm
• Follower Size: 8mm
• Keys Included: 3
• British Standard: No
• Handed: Non-handed
• Escutcheon Plates Supplied: No

For any further inquiries or to place an order, please contact us directly. Your security is our priority!
