Latch Hook 4 Rollers Multipoint Door Lock

Product Overview: Kenrick Excalibur Multipoint Door Lock

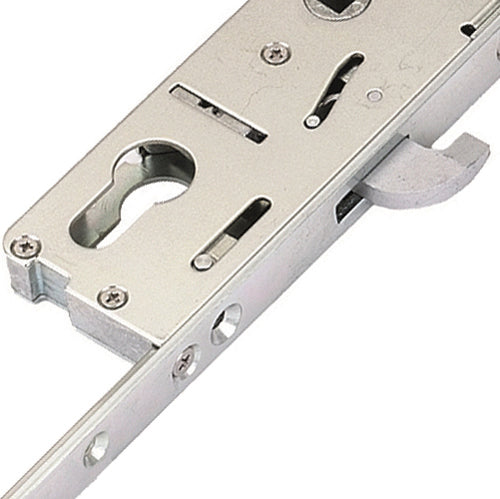

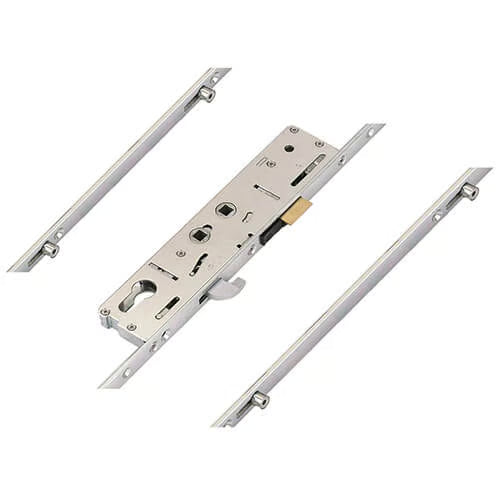

The Kenrick Excalibur multipoint door lock is engineered for security and durability, featuring a robust design with 4 rollers and 1 latch. This lock is equipped with a latch, hook, and a double spindle nightlatch function, ensuring comprehensive protection for your home.

Specifications

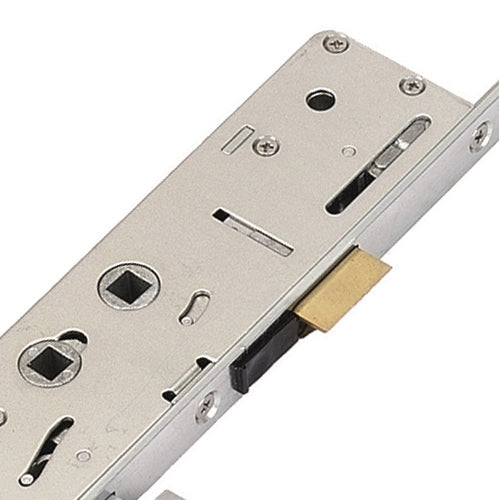

• Gearbox Options: Available in single or double spindle configurations.
• Centre Measurements: 92mm or 62mm and 92mm.
• Height: 225mm, secured with 3 screw holes on the faceplate.
• Handle Fixings: A hole above the top spindle (21mm from the top) allows for bolt-through handle fixings.
• Backset Measurement: When measuring, allow 2-3mm for the faceplate; a 35mm backset gearbox will measure 32mm when not fixed.

Functionality and Operation

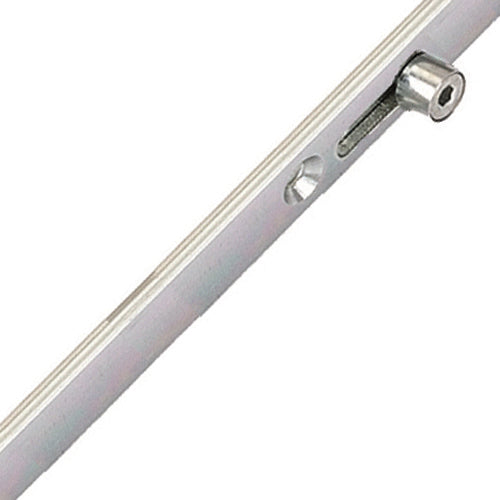

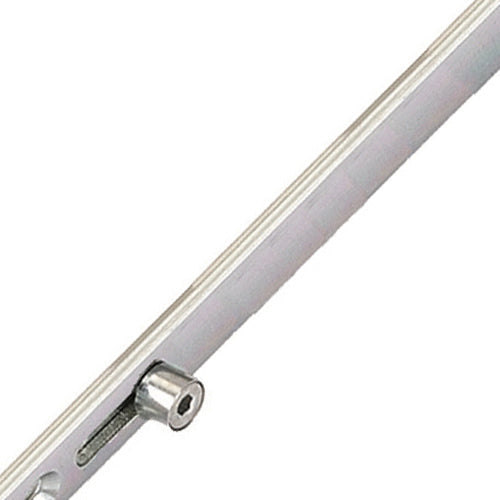

Kenrick Excalibur locks feature a small plastic snib on the faceplate for convenience, allowing the latch to be held back to prevent accidental lockouts. The rollers serve to compress the door against the frame, enhancing weather sealing and preventing warping.

Locking and Unlocking Process

To lock the door:

1. Close the door to engage the latch automatically.
2. Lift the handle to engage the locking points.
3. Turn the key to secure the system.

To unlock the door:

1. Turn the key to unlock the system.
2. Push the handle down to disengage the locking points.
3. A quarter turn of the key will retract the latch.

Quality Assurance

Kenrick Excalibur locks are recognized as an approved Secured by Design supplier, with some models compatible with PAS24 standards. They undergo rigorous testing, including 100,000 cycles and a minimum of 240 hours of salt spray testing, surpassing BS EN 1670:2007 standards.

For further information or assistance, please contact us.

Product Specification

• Manufacturer: Kenrick
• Spindle Size: 8mm
• Rollers: 4
• Latch: 1
• Main Gearbox: Latch & hookbolt

• Spindle: Double 8mm
• Handing: Non handed
• Distance Between Inner Locking: 735mm
• Distance Between Outer Locking: 1430mm
• Height: 2300mm
• Top Roller to Spindle: 700mm
• Bottom Roller to Spindle: 730mm
• Door Material: UPVC, Aluminium

For precise measurements, follow these guidelines:

Measuring the Backset: To measure the backset, take a ruler and measure the distance from the edge of the door to the center of the lock cylinder. This measurement is crucial for ensuring the lock fits correctly.

Measuring the Centres: To measure the centres (PZ), measure the distance from the center of the keyhole to the center of the handle hole. This ensures that both components align properly for optimal operation.

Measuring the Faceplate: To measure the faceplate, measure the width and height of the existing faceplate on your door. This will help you select the correct size from the drop-down options available.

If you have any further questions or need assistance with your measurements, feel free to reach out!
