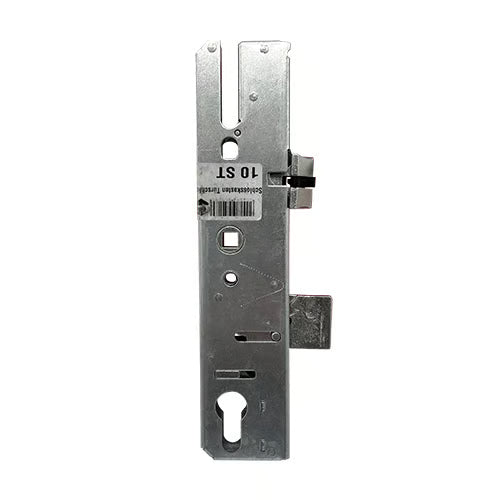

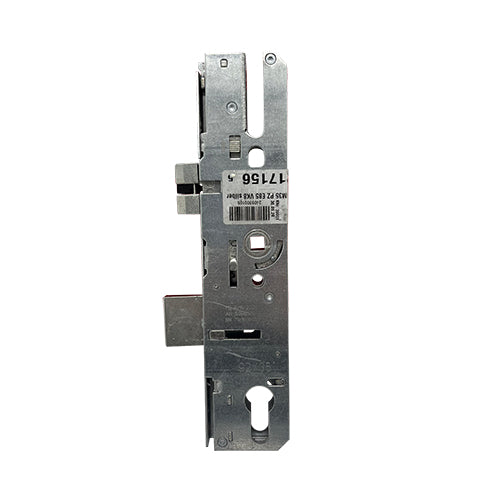

Latch & Deadbolt Multipoint Gearbox - Lift Lever

Product Information
Serrated Latch Reversal Button

Aubi gearboxes have been manufactured in various versions over the years, making it crucial to select the correct one, as they are not interchangeable. The current Aubi lock began production in 2010 and features different screw fixing positions compared to previous versions.

A quick way to identify if you have the new or old version is by checking for the square latch reversal button next to the latch on the new version.

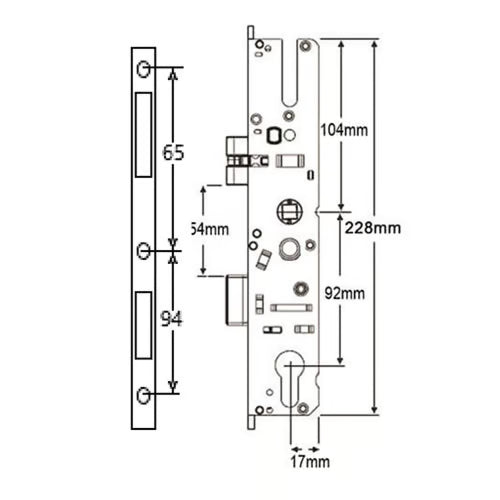

Aubi gearboxes feature lift lever functionality. They measure 228mm high by backset + 18mm wide, with the centres (PZ) at 92mm. The latch measures 29mm high, the deadbolt is 30mm high, and the distance from the bottom of the latch to the top of the deadbolt is 54mm.

These gearboxes are fixed to their faceplates with three screws. The measurement from the top screw to the middle screw is 57mm, while the distance from the middle to the bottom screw is 180mm.

We also stock a range of associated products for Maco G-TS gearboxes, including multipoint door locks, keeps, spindles, handles, and accessories.

To Lock the Door

1. Lift the handle upwards to engage the locking points.
2. Lock the locking points and main deadbolt (if present) by turning the key.

To Unlock the Door

1. Unlock the system by turning the key.
2. Push the handle downwards to disengage the locking points and retract the latch.

Product Specificatio

• Backset: 35mm - How do I measure the backset?
• Centres PZ: 92mm - How do I measure the centres?
• Case Height: 228mm
• Case Width: 53mm
• Copy/Genuine: Genuine
• Cylinder Type: Euro
• Handing: Not Handed
• Main Gearbox: Latch & deadbolt
• Spindle: Single 8mm
• Operation: Lift Lever - What is the operation?
• Packaging: Supplied in singles
