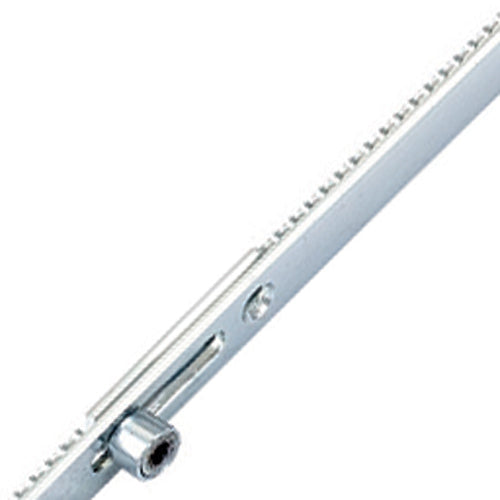

Latch Deadbolt 4 Rollers Split Spindle Multipoint Door Lock - Option 2 (top roller to spindle = 705mm)

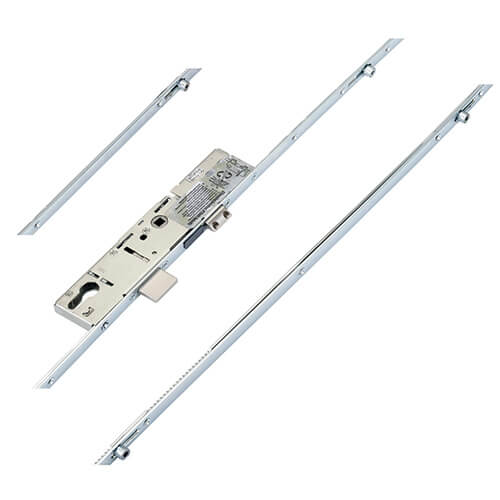

Product Overview: ERA Deadbolt Multipoint Door Lock

The ERA Deadbolt multipoint door lock is engineered for security and reliability, featuring a robust design that includes 4 rollers, 1 deadbolt, and 1 latch. This lock is a popular choice in the UK market, known for its versatility and ease of installation.

Brand Identification

ERA locks may be stamped with various brand names, including Homesafe, Surelock, Saracen, Spartan, Duraflex, Supa, Westward, or Cego. It's essential to recognize that many door and window companies rebrand these locks, which can sometimes lead to confusion.

Design and Mechanism

The multipoint locks are designed to replace GU, Lockmaster, and Winkhaus locks without requiring new routing positions. Most models feature a split spindle mechanism, simplifying replacements by focusing on a single locking function. Note that this does not apply to SureFire locks or specific automatic locking models.

Gearbox Specifications

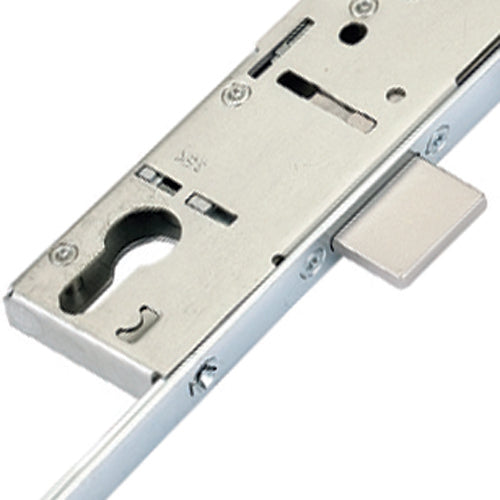

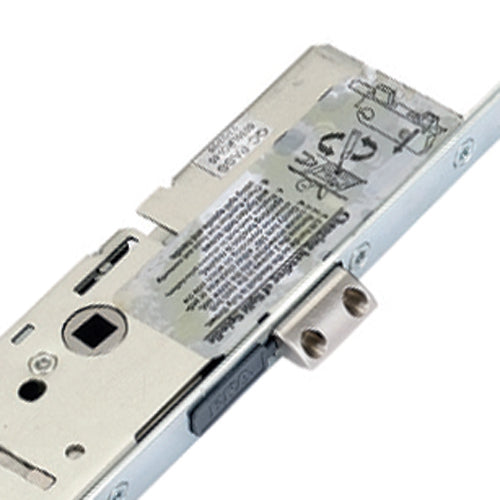

ERA gearboxes are distinctive with a square design and no corner cutouts. They come in 30mm, 35mm, or 45mm backsets, maintaining consistent dimensions across all models. The gearboxes can accommodate various locking mechanisms, including classic deadbolts and hook bolts, with the British Standard Fortress gearbox offering enhanced security features.

Installation and Measurement

For accurate identification, it's advisable to remove the multipoint lock from the door. The gearbox is secured to the faceplate with four screws, with specific measurements between screw holes that are crucial for installation. When measuring the backset, remember to account for the faceplate thickness.

Lock Operation

To operate the lock:

• To Lock: Lift the handle to engage the locking points, then turn the key to secure the deadbolt.
• To Unlock: Turn the key to disengage the system, then push the handle down to retract the latch.

Durability and Compliance

The ERA multipoint door lock meets BS EN 1670:2007 Grade 4 Corrosion Resistance standards, ensuring durability with 240 hours of testing. It has also been endurance tested for 50,000 cycles and is designed to comply with PAS24:2012 standards for enhanced security.

This lock not only provides peace of mind but also contributes to the overall integrity of your door system, making it an excellent choice for both residential and commercial applications.

Product Specification

• Manufacturer: ERA
• Spindle Size: 8mm

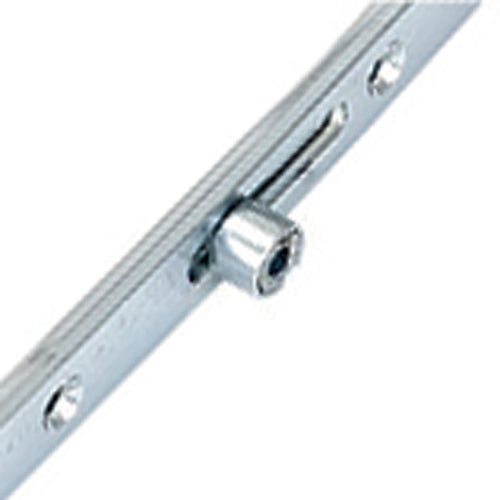

• Rollers: 4
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Split 8mm
• Handing: Non handed
• Distance Between Inner Locking: 775mm
• Distance Between Outer Locking: 1485mm
• Height: 2250mm
• Top Roller to Spindle: 705mm
• Bottom Roller to Spindle: 780mm
• Door Material: UPVC, Aluminium

Measuring Guidelines

To ensure accurate measurements for your ERA Deadbolt multipoint door lock, follow these guidelines:

Backset Measurement
To measure the backset, take a ruler and measure the distance from the edge of the door to the center of the lock cylinder. This measurement is crucial for ensuring the lock fits properly.

Centres PZ Measurement
For the PZ measurement, measure the distance from the center of the keyhole to the center of the handle hole. This is typically 92mm for the ERA locks.

Faceplate Measurement
To measure the faceplate, remove the lock from the door and measure the width and height of the faceplate. This will help you select the correct faceplate option from the drop-down menu.

Operation
The operation of the lock refers to how the locking mechanism functions. Ensure you understand whether it is a lift-to-lock or turn-to-lock mechanism, as this will affect your installation and usage.

By following these measurement guidelines, you can ensure that your ERA Deadbolt multipoint door lock is installed correctly and functions as intended.
