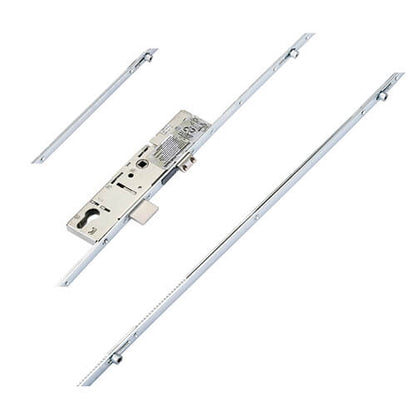

Product Overview
ERA locks, also known under various brands such as Homesafe, Surelock, Saracen, Spartan, Duraflex, Supa, Westward, or Cego, are designed for versatility and ease of installation. These locks were originally created to replace GU, Lockmaster, and Winkhaus locks without requiring new routing positions, making them an ideal choice for upgrades.
Specifications
-
Backset Options: 28mm, 30mm, 35mm, and 45mm
-
Centres: 92mm
-
Operation Types: Lift lever or split spindle nightlatch

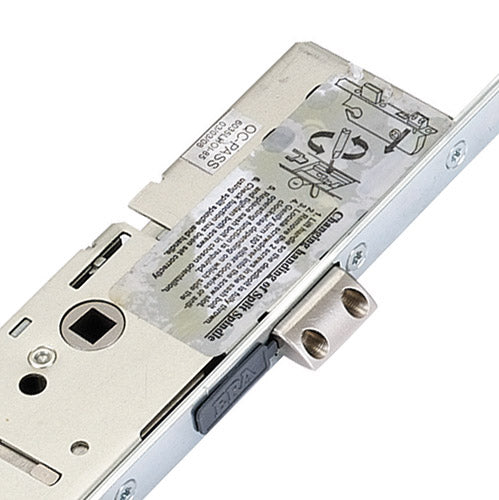

Latch Reversal Instructions
To reverse the latch, simply undo the screws in the latch to remove it. Reverse the latch, reinsert it, and replace the screws to secure it back in place.
Product Specification
- Manufacturer: ERA
- Spindle Size: 8mm

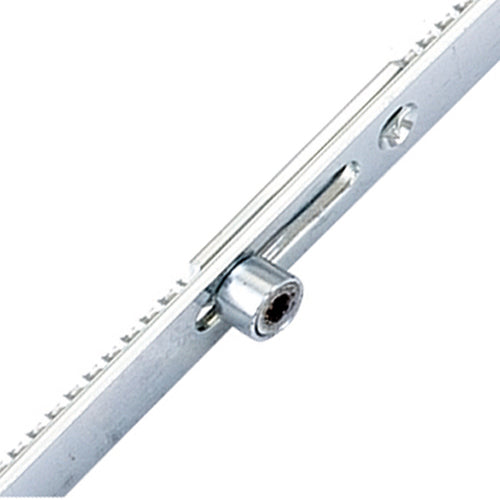

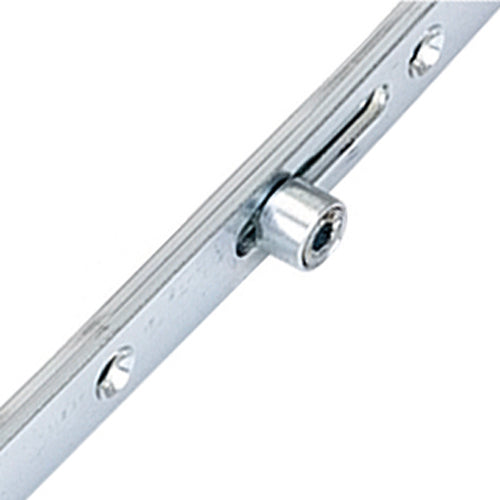

- Rollers: 4

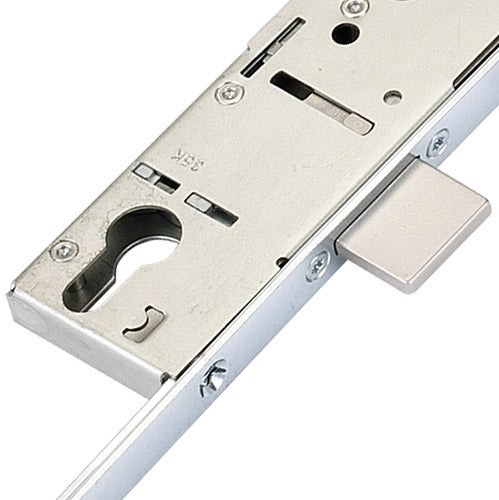

- Deadbolts: 1
- Latch: 1
- Main Gearbox: Latch & deadbolt
- Spindle: Split 8mm
- Handing: Non handed
- Distance Between Inner Locking: 670mm
- Distance Between Outer Locking: 1610mm
- Height: 2250mm
- Top Roller to Spindle: 730mm
- Bottom Roller to Spindle: 880mm
- Door Material: UPVC, Aluminium
Measuring Guidelines
To ensure accurate measurements for your ERA locks, follow these simple guidelines:
Backset Measurement
To measure the backset, take a tape measure and measure the distance from the edge of the door to the center of the lock cylinder. This will help you select the correct backset option from the drop-down menu.
Centres Measurement
For measuring the centres, measure the distance between the center of the keyhole and the center of the handle. This is crucial for ensuring compatibility with your door hardware.
Faceplate Measurement
To measure the faceplate, you will need to measure the width and height of the existing faceplate on your door. This will help you choose the right faceplate option from the drop-down.
By following these guidelines, you can ensure that your ERA locks will fit perfectly and operate smoothly.
