Latch Deadbolt 4 Rollers Split Spindle Multipoint Door Lock

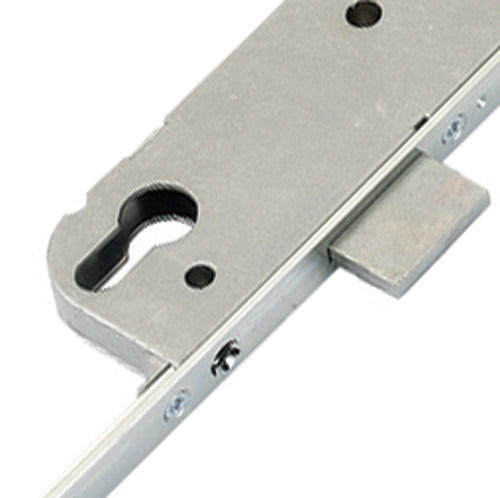

Product Overview: GU Europa Multipoint Door Lock

The GU Europa multipoint door lock is designed for enhanced security and functionality, featuring a robust configuration of 4 rollers, 1 deadbolt, and 1 latch. This split spindle version of the popular 4 roller GU multipoint lock is part of the "SECURY" range, known for its reliability and ease of use.

Key Features:

• Versatile Operation: Available in both lift lever and split spindle nightlatch options, the GU Europa lock accommodates various door manufacturing needs.
• Identification: GU locks are easily identifiable by the logo stamped on the faceplate. If you're dealing with an older door, be aware that it may feature the original style lock.
• Compatibility: GU has updated their multipoint locks over the years. If you need to replace an old lock, the new version can be installed, although some adjustments to the deadbolt and latch keep may be necessary.
• Locking Mechanism: The lock features inbound and outbound rollers, which can vary in measurements. Always check product descriptions to ensure compatibility.

Historical Context:

Since its introduction at the Deubau Trade Fair in 1979, the GU-SECURY multi-point locking system has evolved significantly. The introduction of self-locking systems in 1996 marked a major advancement in door security technology.

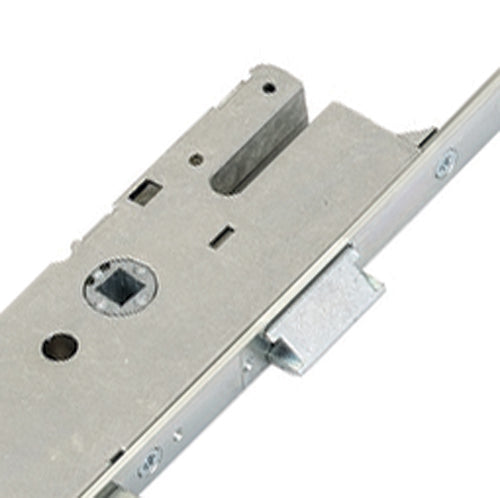

Specifications:

• Gearbox Dimensions: New style GU gearboxes measure 191mm high (excluding fixing lugs) and vary in backset sizes (28mm, 35mm, 40mm, 45mm, and 55mm).
• Installation Notes: Ensure to allow for a 2mm margin when measuring backsets. The gearboxes are fixed with three screws, with specific distances between them for accurate installation.

Operational Instructions:

• To lock the door:
  • Lift the handle upwards to engage the locking points.
  • Turn the key to secure the locking points and the main deadbolt.
• To unlock the door:
  • Turn the key to unlock the system.
  • Push the handle downwards to disengage the locking points and retract the latch.

Product Specification

• Manufacturer: GU
• Spindle Size: 8mm
• Rollers: 4
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Split 8mm
• Handing: Non handed
• Distance Between Inner Locking: 670mm
• Distance Between Outer Locking: 1610mm
• Height: 2285mm
• Top Roller to Spindle: 749mm
• Bottom Roller to Spindle: 861mm
• Door Material: UPVC, Aluminium

Measuring Instructions:

To ensure accurate measurements for your GU Europa multipoint door lock, follow these guidelines:

Backset Measurement: Measure from the edge of the door to the center of the lock cylinder. This will give you the backset size needed for your installation.

Centres PZ Measurement: The PZ measurement is the distance from the center of the keyhole to the center of the handle hole. Use a ruler or tape measure to determine this distance accurately.

Faceplate Measurement: To measure the faceplate, check the width and height of the existing faceplate on your door. This will help you select the correct size from the drop-down options.

Operation Selection: Choose the operation type based on how you intend to use the lock. Options may include lift lever or split spindle configurations, depending on your door's design and functionality.

By following these instructions, you can ensure that your GU Europa multipoint door lock is installed correctly and functions optimally.
