Latch Deadbolt 4 Rollers Split Spindle Multipoint Door Lock

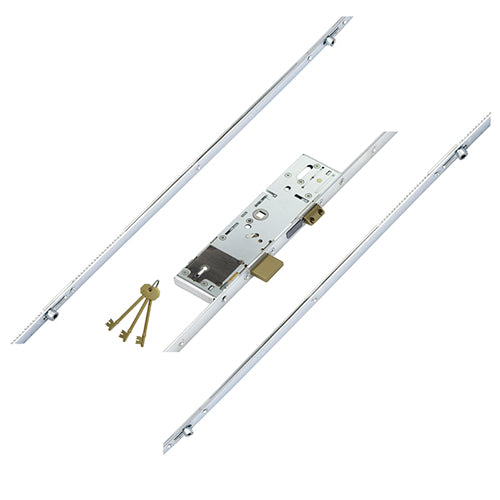

Product Overview: ERA Vectis Deadbolt Multipoint Door Lock

The ERA Vectis Deadbolt multipoint door lock is engineered for security and ease of use, featuring a robust design that includes 4 rollers, 1 deadbolt, and 1 latch. This multipoint locking system is ideal for enhancing the safety of your doors while ensuring smooth operation.

Identification Tips

Identifying an ERA Vectis multipoint door lock can be straightforward, but there are some key points to consider:

• Branding Variations: ERA manufactures locks for various door and window companies, leading to rebranding. While many faceplates bear the ERA logo, others may display different manufacturers' branding.
• Key Features: If your lock uses a 5 lever mortice lock key or has a UK keyhole, it is likely an ERA Vectis.
• Holdback Snib Color: The holdback snib on the faceplate is typically grey for deadbolt and hook bolt locks, and blue for Vectis locks. Be aware that some brands may have altered the snib color to black or green.
• Historical Context: ERA locks were previously known as Saracen, a name from when Laird produced locks for the double glazing industry.

Mechanism and Compatibility

All ERA Vectis multipoint locks feature a split spindle mechanism, simplifying replacements by focusing on one locking function. They share the same levers as the British Standard ERA Fortress mortice lock, allowing for key compatibility with traditional mortice locks.

Gearbox Specifications

The ERA Vectis multipoint door lock gearboxes are distinctive with a square design and no corner cutouts. Key specifications include:

• Dimensions: Gearbox length is 221mm, with a width determined by the backset plus 18mm.
• Backset Options: Available in 35mm or 45mm backsets, with regular ERA gearboxes also offered in a 30mm backset.
• Interchangeability: Most ERA gearboxes can be interchanged, allowing customization based on client needs.

Lock Operation

To operate the lock:

• Locking: Lift the handle to engage the locking points, then turn the key to secure the deadbolt and locking points.
• Unlocking: Turn the key to unlock, then push the handle down to disengage the locking points and retract the latch.

Performance Standards

The ERA Vectis multipoint door lock meets the requirements of BS EN 1670:2007 Grade 4 for corrosion resistance (240 hours) and has been endurance tested for 50,000 cycles. It is designed to comply with PAS24:2012 standards for enhanced security.

Product Specification

• Manufacturer: ERA
• Spindle Size: 8mm
• Rollers: 4
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Split 8mm
• Handing: Non handed
• Distance Between Inner Locking: 670mm
• Distance Between Outer Locking: 1610mm
• Height: 2250mm
• Top Roller to Spindle: 730mm
• Bottom Roller to Spindle: 880mm
• Door Material: UPVC, Aluminium

Measuring Guidelines

To ensure accurate measurements for your ERA Vectis multipoint door lock, follow these guidelines:

Backset Measurement
To measure the backset, take a tape measure and measure the distance from the edge of the door to the center of the keyhole. This measurement is crucial for selecting the correct lock.

Centres PZ Measurement
The PZ measurement is the distance from the center of the keyhole to the center of the handle hole. Use a tape measure to find this distance accurately.

Faceplate Measurement
To measure the faceplate, measure the width and height of the existing faceplate on your door. This will help you select the correct faceplate from the drop-down options.

By following these steps, you can ensure that your ERA Vectis multipoint door lock fits perfectly and operates smoothly. If you have any further questions or need assistance, feel free to reach out!
