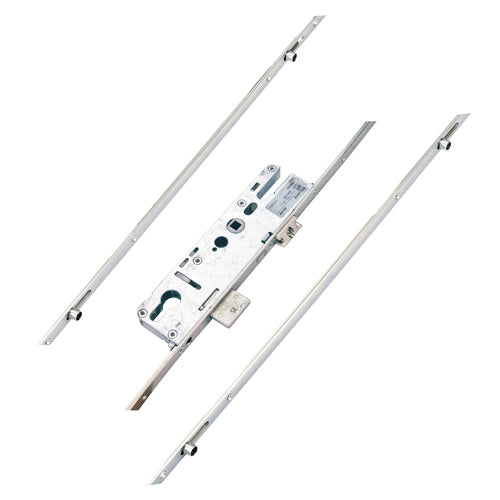

Latch Deadbolt 4 Rollers Lift Lever Multipoint Door Lock

Product Overview: Elite Multipoint Lock

The Elite multipoint lock is designed for versatility and durability, featuring a single spindle Roto gearbox that caters to a variety of applications. Manufactured in Europe, these locks are enhanced with a "Silbear" coating, providing an impressive 480 hours of salt spray protection, ensuring longevity even in harsh environments.

Identification and Features

To identify an Elite lock, look for the stamped Elite logo on the faceplate. This gearbox includes a slot and a small hole below it, designed for bolt-through handles. Notably, Elite has taken over the production of these locks from Roto-Frank, maintaining the same tooling and specifications as the original locks, with the addition of the new Silbear coating. You may recognize these locks from our catalogues as the MVD range or "Roto mark 2" locks. While gearboxes cannot be swapped with the original locks, a complete lock replacement is straightforward.

Specifications

Elite locks are available in both standard and compact versions, suitable for shorter doors. They maintain a consistent handle height of 950mm, with an overall length of 1810mm.

• Gearbox Options:
  • 35mm single spindle lock
  • 35mm or 45mm double spindle lock
• Dimensions:

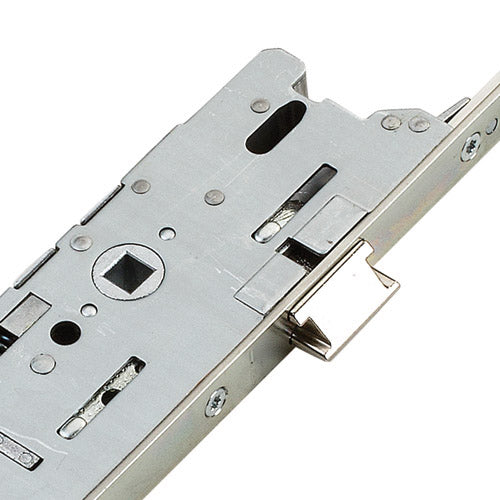

  • Gearbox: 200mm high x backset + 19mm (account for 2mm for the faceplate)

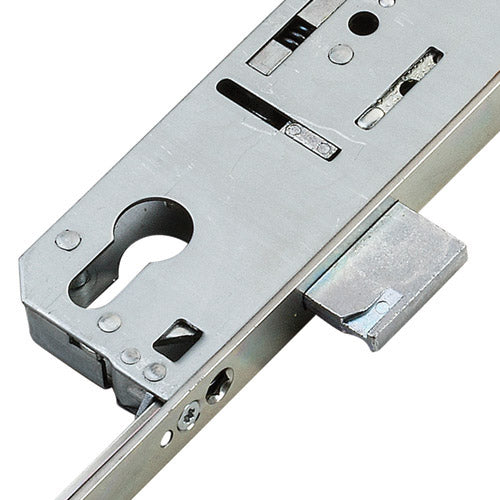

  • Deadbolt: Projects 20mm, 32mm high
  • Latch: 30mm high, projects 10mm
  • Distance between latch and deadbolt: 63mm
  • Centres: Positioned at 62mm and 92mm, with the top spindle 122mm from the bottom of the case

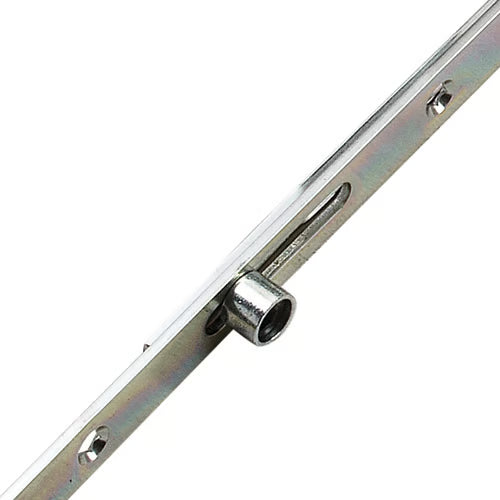

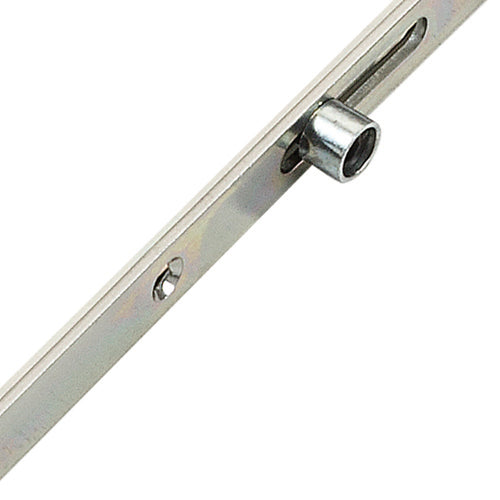

Roller Mechanism

The lock features rollers that assist in compressing the door against the frame, minimizing dust and water ingress. While they do not significantly enhance security, they help prevent warping by supporting the door's full height, provided the rollers are properly engaged in their keeps. Elite rollers are adjustable by +/- 1.2mm for optimal weather sealing.

Operation Instructions

To Lock the Door:

1. Lift the handle upwards to engage the locking points.
2. Secure the locking points and main deadbolt (if applicable) by turning the key.

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle downwards to disengage the locking points and retract the latch.

Testing Standards

The Elite multipoint lock has been rigorously tested for 480 hours of salt spray exposure, meeting EN1675 Grade 5 standards, ensuring its reliability and performance in various conditions.

Product Specification

• Manufacturer: Elite
• Spindle Size: 8mm
• Rollers: 4
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Single 8mm
• Handing: Non handed
• Distance Between Inner Locking: 750mm
• Distance Between Outer Locking: 1730mm
• Height: 1775mm
• Top Roller to Spindle: 810mm
• Bottom Roller to Spindle: 920mm
• Door Material: UPVC, Aluminium

Measuring Guidelines

To ensure accurate measurements for your Elite multipoint lock, follow these guidelines:

Backset Measurement
To measure the backset, take a tape measure and measure the distance from the edge of the door to the center of the lock cylinder. This is crucial for ensuring the lock fits properly within the door frame.

Centres Measurement
For measuring the centres, measure the distance between the center of the keyhole and the center of the handle hole. This measurement is essential for aligning the lock correctly with the door hardware.

Faceplate Measurement
To measure the faceplate, measure the width and height of the existing faceplate on your door. This ensures that the new lock will fit seamlessly into the existing cutout.

Operation Selection
When selecting the operation from the drop-down, consider how you intend to use the lock. Options may include key operation, handle operation, or a combination of both, depending on your security needs.

By following these measurement guidelines, you can ensure a perfect fit for your Elite multipoint lock, enhancing both security and functionality.
