Latch Deadbolt 4 Rollers Lift Lever Multipoint Door Lock

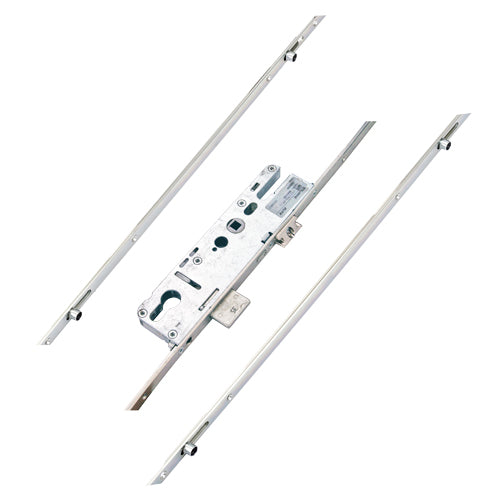

Product Overview: Elite Multipoint Lock

The Elite multipoint lock is designed for versatility and durability, featuring a single spindle Roto gearbox that caters to a variety of applications. Manufactured in Europe, this lock is enhanced with a "Silbear" coating, providing an impressive 480 hours of salt spray protection, ensuring longevity even in harsh environments.

Identification and Features

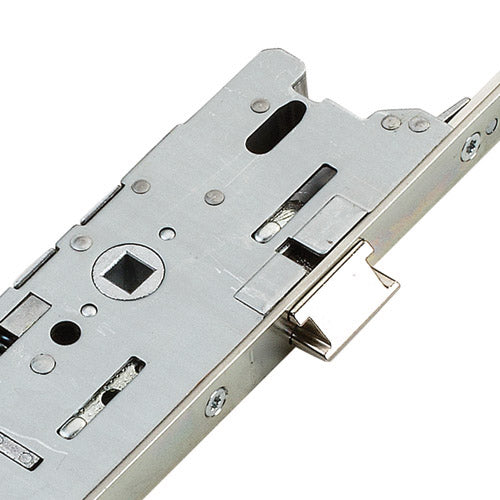

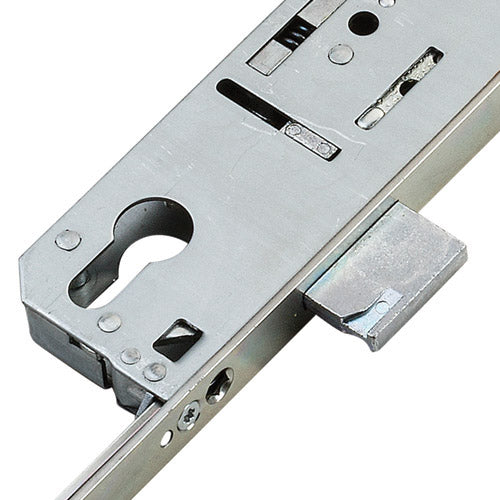

To identify an Elite lock, look for the stamped Elite logo on the faceplate. This gearbox includes a slot and a small hole below it, designed for bolt-through handles. Notably, Elite has taken over the production of these locks from Roto-Frank, maintaining the same tooling and specifications as the original locks, with the added benefit of the new Silbear coating. You may recognize these locks from our catalogues as the MVD range or "Roto mark 2" locks. While the gearboxes cannot be swapped with the original locks, a complete lock replacement is straightforward.

Specifications

Elite locks come in both standard and compact versions, suitable for shorter doors, maintaining a consistent handle height of 950mm while having an overall length of 1810mm.

• Gearbox Options:
  • 35mm single spindle lock
  • 35mm or 45mm double spindle lock
• Dimensions:
  • Gearbox height: 200mm
  • Backset: +19mm (account for an additional 2mm for the faceplate)
• Deadbolt and Latch:
  • Deadbolt projection: 20mm, height: 32mm
  • Latch height: 30mm, projection: 10mm
  • Distance between latch and deadbolt: 63mm
• Centre Measurements:
  • Positioned at 62mm and 92mm
  • Top spindle: 122mm from the bottom of the case

Roller Functionality

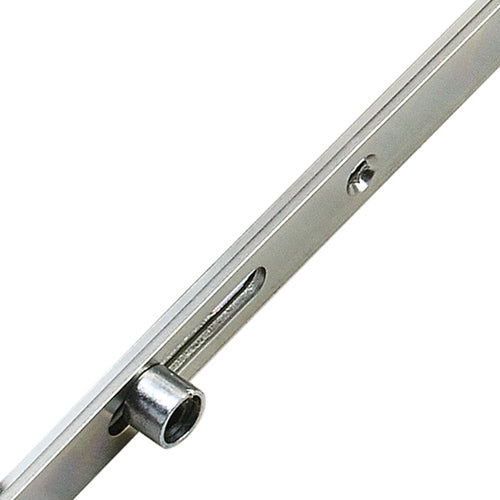

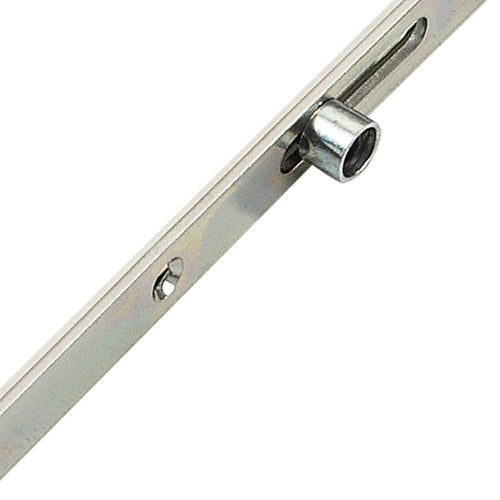

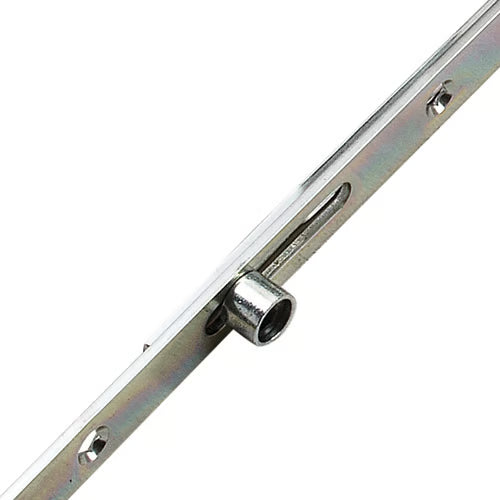

The lock utilizes rollers to compress and secure the door against the frame, minimizing dust and water ingress. While they do not significantly enhance security, they help prevent warping by supporting the door's full height when engaged. Elite rollers are adjustable by +/- 1.2mm for optimal weather sealing.

Operation Instructions

To Lock the Door:

1. Lift the handle upwards to engage the locking points.
2. Turn the key to lock the locking points and main deadbolt (if applicable).

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle downwards to disengage the locking points and retract the latch.

Latch Reversal

To reverse the latch, simply undo the screw on the side of the lock case adjacent to the latch, remove it, reverse it, reinsert, and replace the screw.

Applications

This lock is commonly used in UPVC and aluminium doors, making it a versatile choice for various installations.

Associated Products

We also stock a range of accessories for Elite Standard multipoint door locks, including keeps, spindles, handles, and more, ensuring you have everything you need for a complete installation.

Product Specification

• Manufacturer: Elite
• Spindle Size: 8mm
• Rollers: 4
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Single 8mm
• Handing: Non handed
• Distance Between Inner Locking: 750mm
• Distance Between Outer Locking: 1730mm
• Height: 1775mm
• Top Roller to Spindle: 810mm
• Bottom Roller to Spindle: 920mm
• Door Material: UPVC, Aluminium
