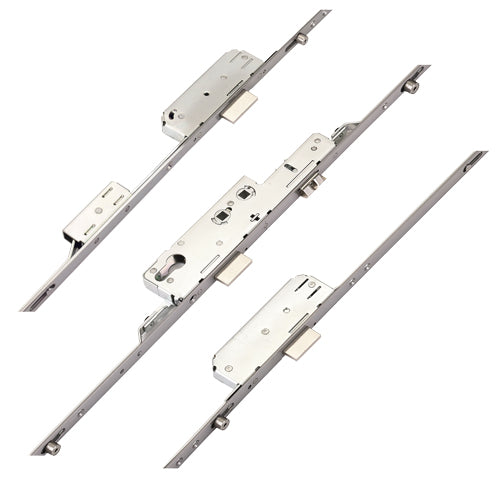

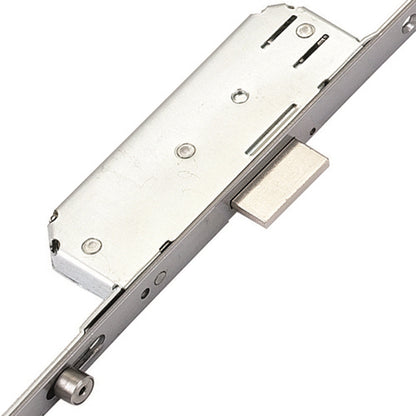

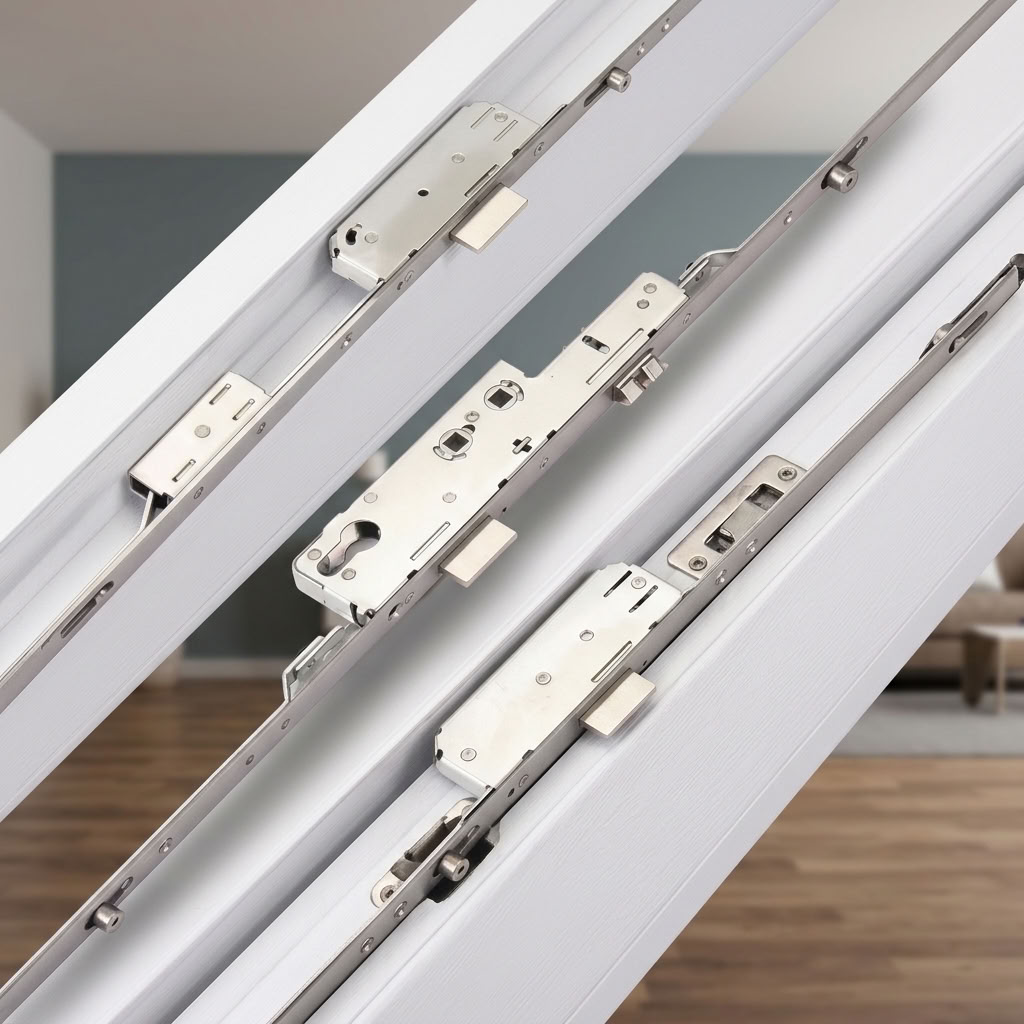

Latch Deadbolt 4 Rollers Lift Lever Multipoint Door Lock

To ensure optimal performance and longevity of your Elite multipoint door lock, it's essential to understand its features and maintenance requirements.

Key Features of the Elite Multipoint Lock:

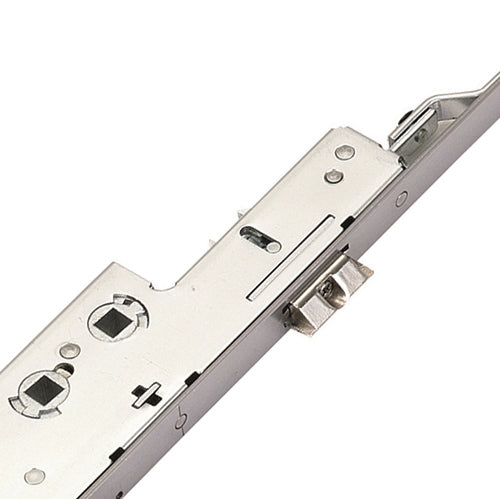

• Single Spindle Roto Gearbox: Designed for ease of use and reliability, this gearbox is compatible with various door types.
• Durable Silbear Coating: Offering 480 hours of salt spray protection, this coating enhances the lock's resistance to corrosion, making it suitable for coastal environments.
• Identifying Your Lock: Look for the Elite logo stamped on the faceplate. The unique design includes a slot and a small hole for bolt-through handles, ensuring compatibility with various handle types.
• Legacy of Quality: Originally manufactured by Roto-Frank, Elite locks maintain the same high standards and specifications, ensuring a seamless transition for users familiar with the MVD range or "Roto mark 2" locks.

Specifications to Note:

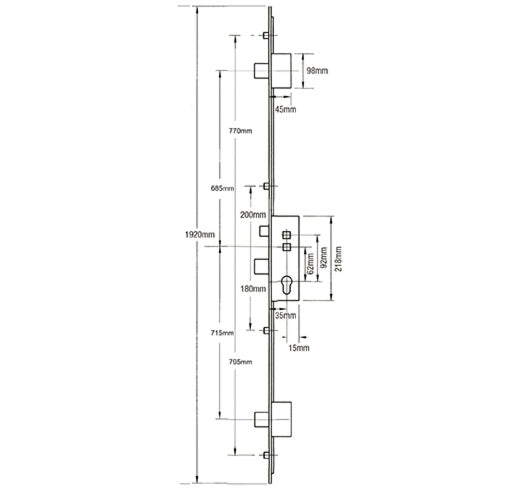

• Gearbox Dimensions: The gearbox measures 200mm high, with a backset of 35mm or 45mm, depending on your specific needs. Remember to account for an additional 2mm for the faceplate when measuring.

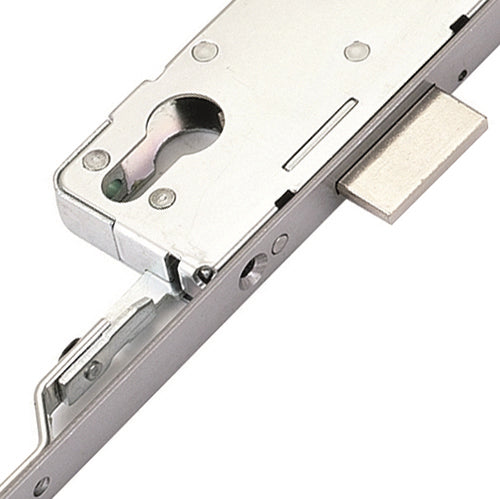

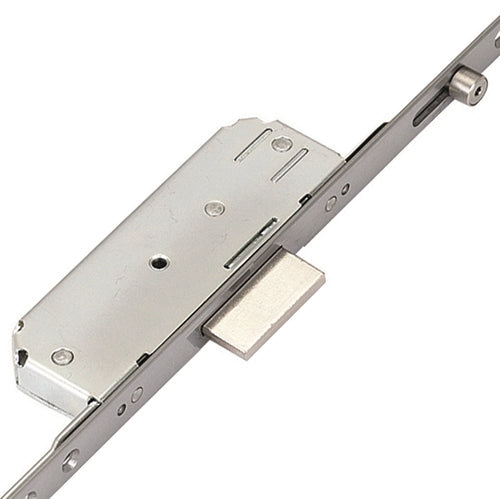

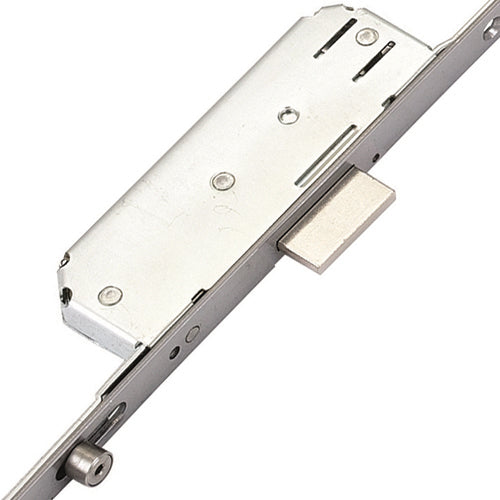

• Locking Mechanism: The deadbolt projects 20mm, while the latch projects 10mm. The distance between the latch and deadbolt is 63mm, ensuring a secure fit.

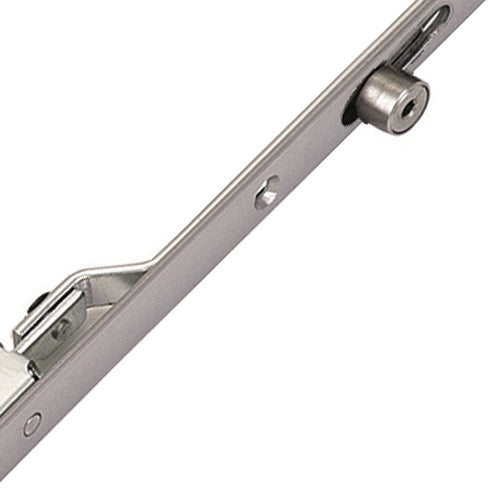

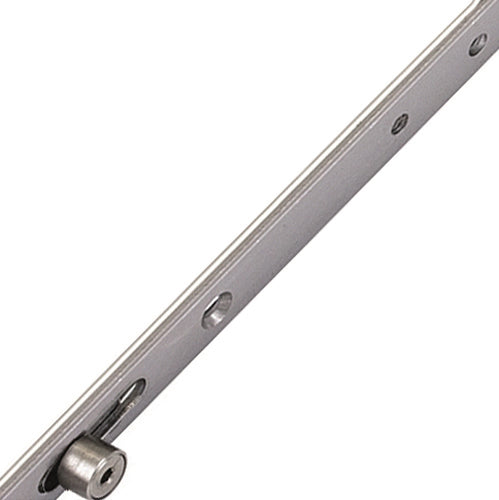

• Adjustable Rollers: Elite rollers can be adjusted by +/- 1.2mm, allowing for precise alignment and optimal weather sealing.

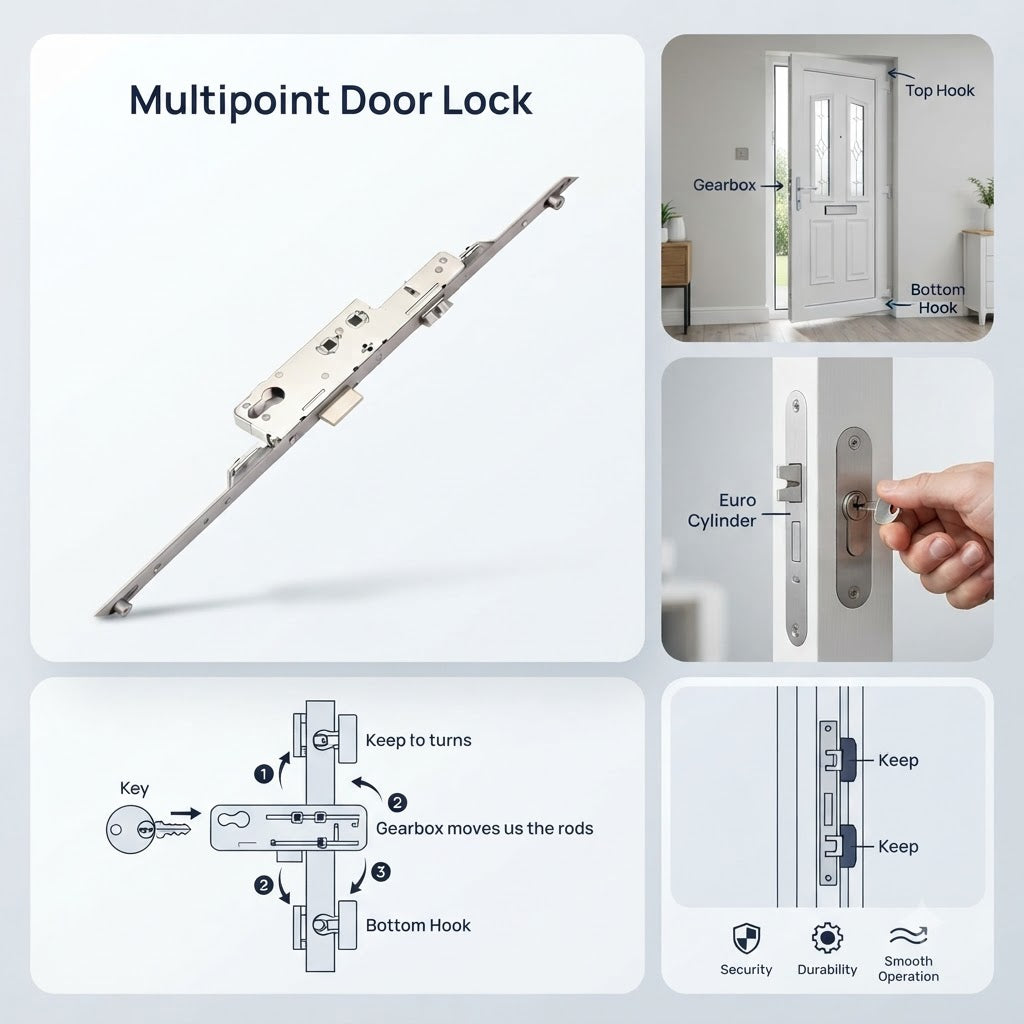

Operation Instructions:

• To Lock:

1. 1. Lift the handle upwards to engage the locking points.
   2. Turn the key to secure the locking points and main deadbolt.

• To Unlock:

1. 1. Turn the key to unlock the system.
   2. Push the handle downwards to disengage the locking points and retract the latch.

Maintenance Tips:

• Latch Reversal: If you need to reverse the latch, simply undo the screw adjacent to the latch, remove it, reverse it, and reinsert the screw.
• Regular Checks: Periodically inspect the rollers and locking mechanism to ensure they are functioning correctly and adjust as necessary for optimal performance.

By understanding these features and following the maintenance guidelines, you can ensure that your Elite multipoint door lock remains secure and functional for years to come. If you have any questions or need further assistance, don't hesitate to reach out!

Product Specification

Manufacturer: Elite

Backset: Select from drop-down - How do I measure the backset?

Centres PZ: 92mm - How do I measure the centres?

Faceplate: Select from drop-down - How do I measure the faceplate?

Spindle Size: 8mm

Rollers: 4

Deadbolts: 1

Latch: 1

Main Gearbox: Latch & deadbolt

Operation: Select from drop-down

Spindle: Single 8mm

Handing: Non handed

Distance Between Inner Locking: 750mm

Distance Between Outer Locking: 1730mm

Height: 1775mm

Top Roller to Spindle: 810mm

Bottom Roller to Spindle: 920mm

Door Material: UPVC, Aluminium

Measurement Guidelines

How to Measure the Backset:

1. Measure from the edge of the door to the center of the keyhole.
2. Ensure the door is closed for an accurate measurement.

How to Measure the Centres (PZ):

1. Measure the distance from the center of the keyhole to the center of the handle hole.
2. This measurement is crucial for ensuring proper alignment.

How to Measure the Faceplate:

1. Measure the width and height of the existing faceplate.
2. Ensure to account for any additional features or cutouts.

Operation:

• The operation of the lock can vary based on the specific model. Please refer to the product manual for detailed instructions on how to operate your Elite multipoint lock effectively.

By following these guidelines, you can ensure that your measurements are accurate, leading to a successful installation of your Elite multipoint door lock. If you have any further questions or need assistance, feel free to reach out!
