Latch Deadbolt 4 Rollers Attachments for Shootbolts Lift Lever Multipoint Door Lock

Product Overview: ERA Multipoint Door Lock

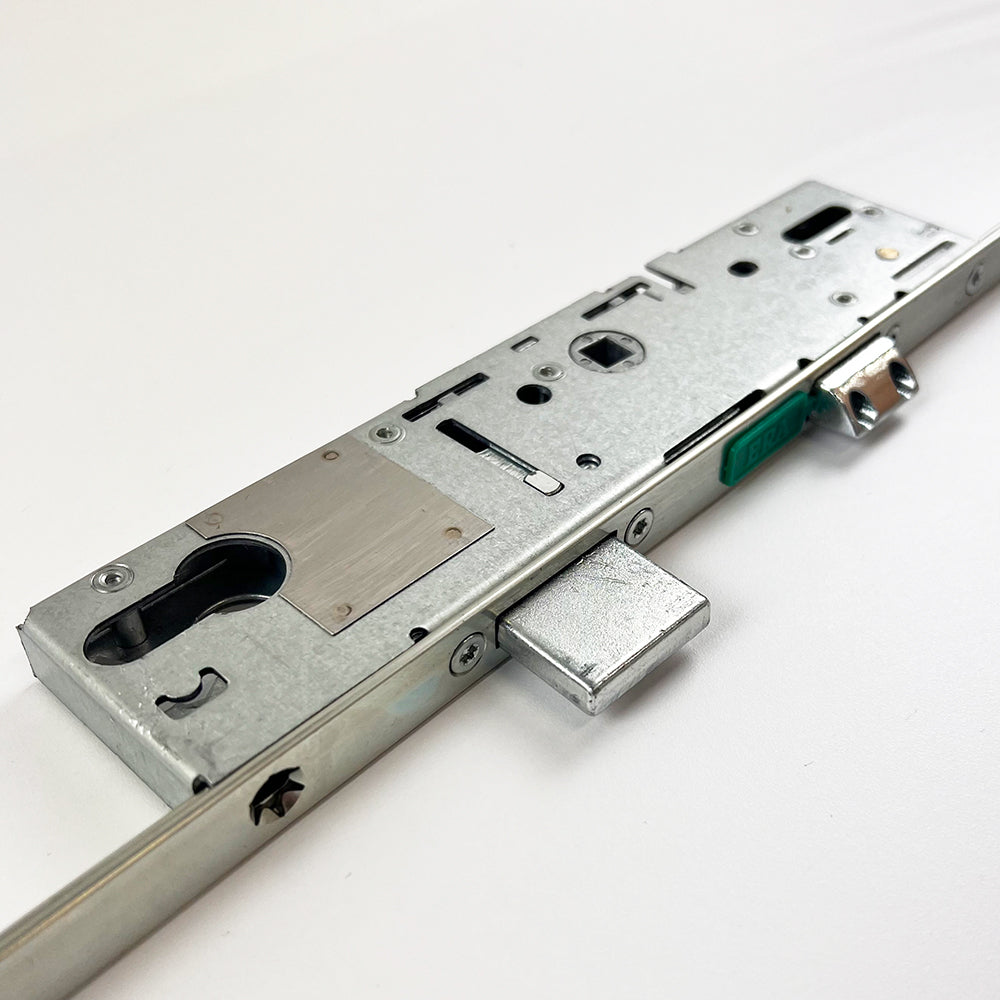

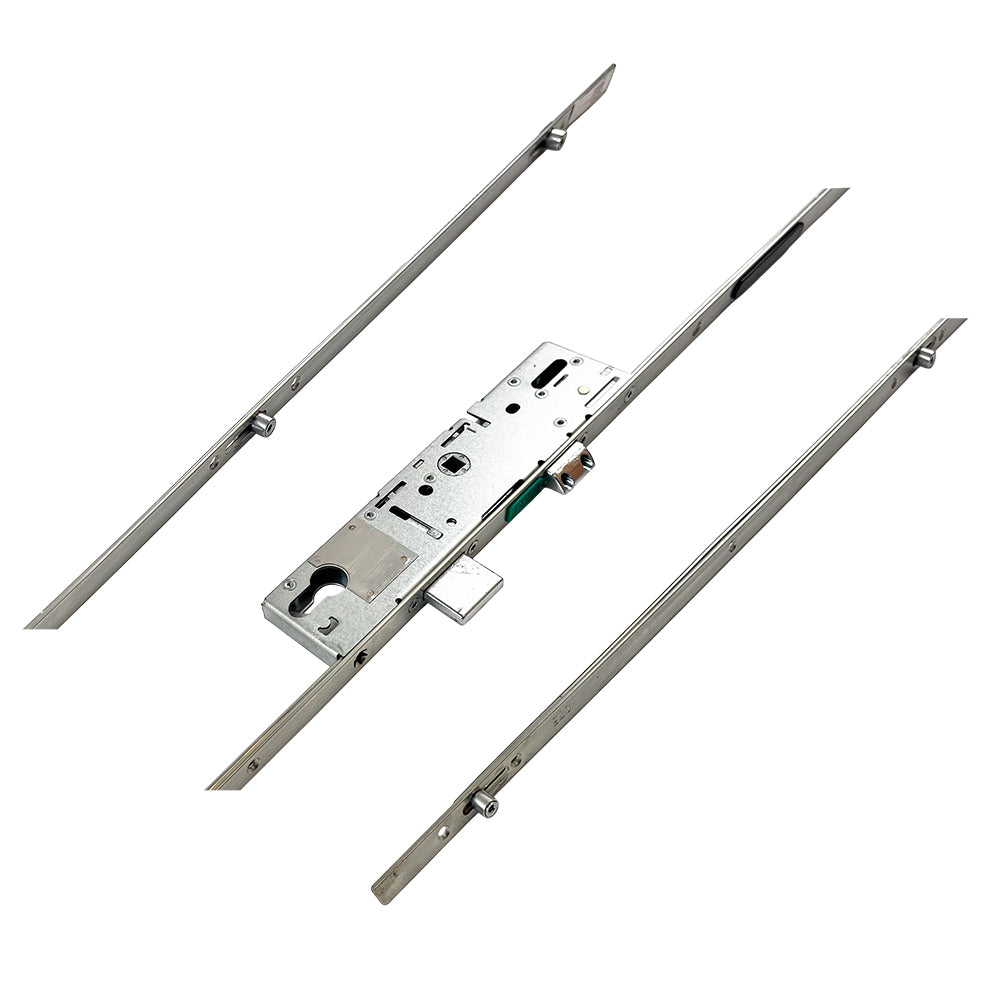

The ERA Surefire multipoint door lock features 4 rollers with attachments for shootbolts and is available in a 35mm backset. This lock provides a seamless security solution that is both user-friendly and highly effective.

Key Features:

• Automatic Locking Mechanism: Simply close the door, and the trigger engages, automatically activating all locking points for enhanced security.
• Versatile Gearbox Options: Available in Classic for central door handle positions or a higher gearbox for Heritage style doors, ensuring compatibility with various door types.

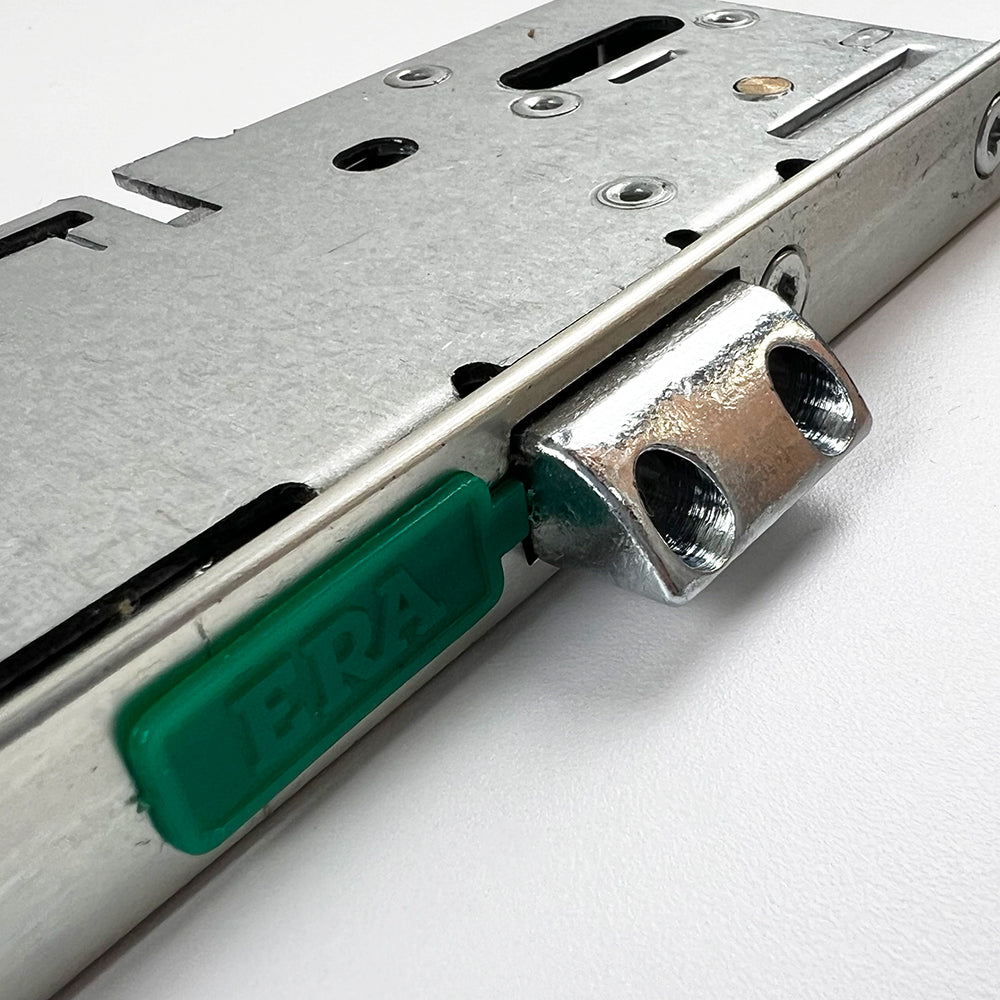

• Distinctive Design: The lock is easily identifiable with its external hooks and auto fire latches, which engage upon closing the door.
• Brand Recognition: While ERA manufactures locks for numerous brands, the SureFire lock is exclusive to ERA, ensuring quality and reliability.
• Holdback Snib Indicator: Look for the grey holdback snib on the faceplate, a common feature in ERA locks, although the SureFire model does not include one.

Installation and Identification:

For accurate identification, it’s recommended to remove the multipoint lock from the door. The latch and adjacent hook are key indicators, but confirming locking distances and backset is essential for proper installation.

Benefits of Automatic Locking:

Automatic locking multipoint locks ensure that all locking points are engaged when the door is closed, preventing warping or bowing over time. This feature maintains the door's integrity against the frame, providing long-lasting performance.

Specifications:

• Gearbox Backsets: A unique design that cannot be interchanged with other ERA locks.
• High-Performance Hooks: Twin tapered anti-jemmy hooks with anti-saw protection and hardened anti-drill inserts for maximum security.
• Lightweight Construction: Made from aerospace-grade aluminum, ensuring smooth key operation with lighter torque requirements.

Operation Instructions:

• To Lock:
  • Close the door to engage the latch and locking points automatically.
  • Turn the key to deadlock the mechanism.
• To Unlock:
  • Turn the key to unlock.
  • If applicable, push the lever down to retract the locking points or turn the key further to retract the latch.

Compliance and Testing:

The ERA Surefire lock meets BS EN 1670:2007 Grade 4 for corrosion resistance, has been endurance tested for 150,000 cycles, and complies with PAS 24 standards as part of a compliant door set. It is also fire tested to BS 476 FD30 and FD60, making it suitable for fire door applications with appropriate approvals.

Product Specification

• Centres (PZ): 92mm
• Case height: 221mm
• Case depth: backset + 20mm
• Length: 1765mm
• Distance between outer roller bolts: 1610mm
• Distance between inner roller bolts: 670mm
