Latch Deadbolt 4 Rollers 2 Hooks Split Spindle Multipoint Door Lock

Product Overview: Maco C-TS Multipoint Door Lock

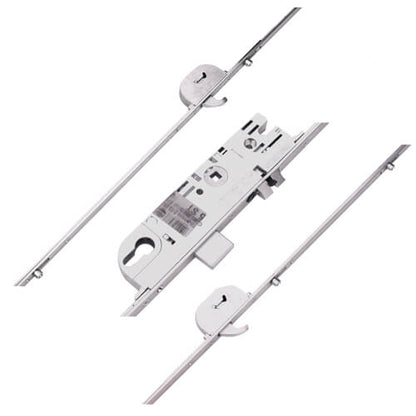

The Maco C-TS multipoint door lock is designed for enhanced security and functionality, featuring a robust configuration of 4 rollers, 2 hooks, 1 deadbolt, and 1 latch.

Key Features:

• Innovative Design: The C-TS lock represents the latest in Maco's locking technology, with unique locking point placements that differentiate it from older models.
• Versatile Functionality: Introduced in 2012, the C-TS range supersedes the G-TS series, offering a split spindle mechanism that can function as either a lift lever or split spindle.

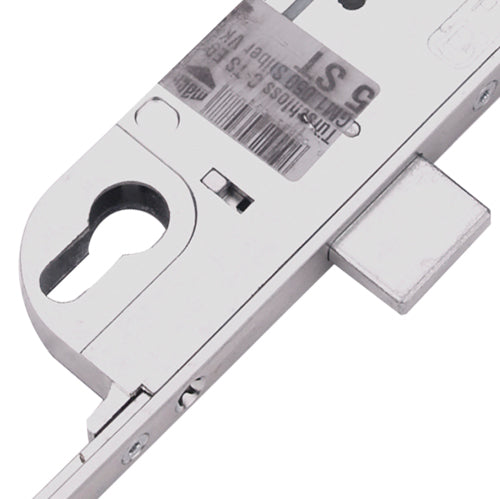

• Identification: C-TS locks can be easily identified by the Maco logo on the faceplate and the distinctive shape of the locking gearboxes.
• Faceplate Options: Available in traditional 16mm and 20mm sizes, the C-TS locks also come with an innovative "Top Hat" faceplate, which provides a seamless finish by covering routing details.

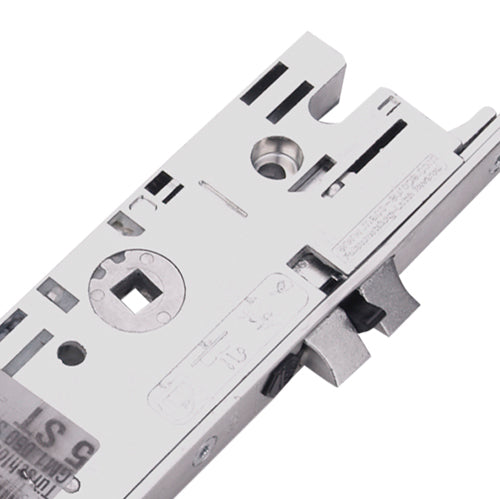

• Compact Size: Measuring 202mm in height, the C-TS gearbox is one of the smaller options available, featuring a unique "soft" latch design.
• Precision Measurements: The latch and deadbolt measure 30mm high, with a spacing of 55mm between them. Installation requires careful measurement, allowing for a 2-3mm adjustment for the faceplate.

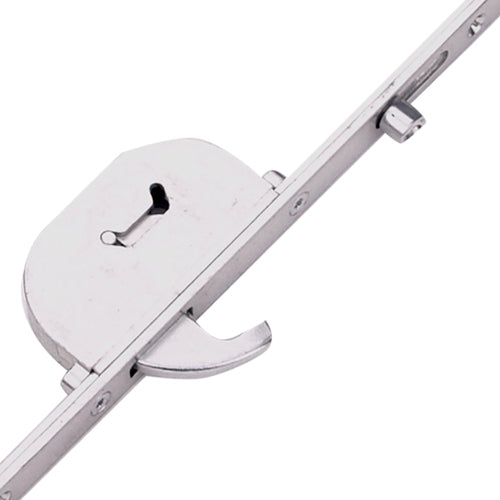

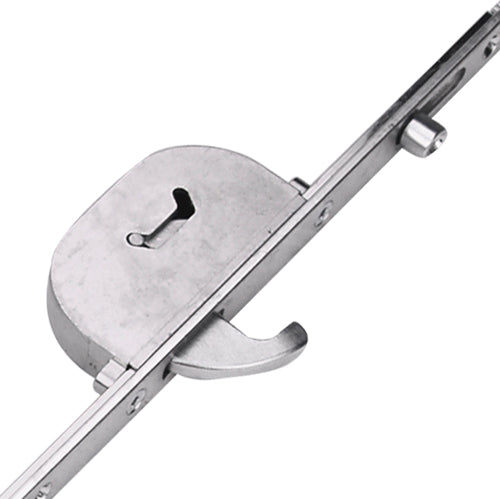

• Security Features: The C-TS locks offer various hook-locking arrangements, including a standard uni-directional hook and a higher security hook with an anti-lift pin.

Operation Instructions:

• Locking the Door:
  • Lift the handle upwards to engage all locking points.
  • Secure the lock by turning the key.
• Unlocking the Door:
  • Turn the key to unlock the system.
  • Push the handle down to disengage the locking points and retract the latch.

Durability: The Maco C-TS locks are endurance tested to withstand up to 100,000 cycles, ensuring long-lasting performance and reliability.

For any replacements or inquiries regarding the Maco A-TS version, we have stock available to meet your needs.

Product Specification

• Manufacturer: Maco
• Spindle Size: 8mm

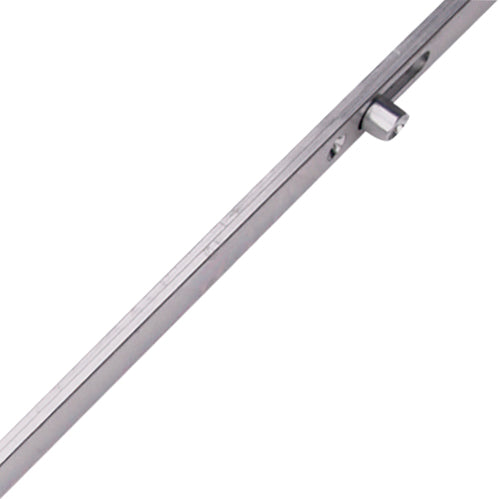

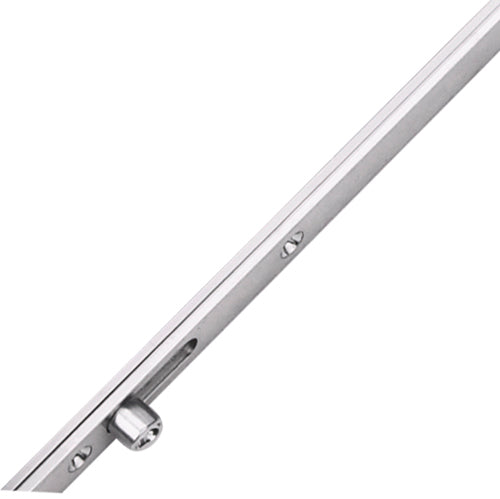

• Rollers: 4
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Split 8mm
• Handing: Non handed
• Distance Between Inner Locking: 770mm
• Distance Between Outer Locking: 1490mm
• Height: 2200mm
• Top Hook to Spindle: 730mm
• Bottom Hook to Spindle: 760mm
• Top Roller to Spindle: 827mm
• Bottom Roller to Spindle: 663mm
• Door Material: UPVC, Aluminium

Measuring Guidelines:

To ensure accurate measurements for your Maco C-TS multipoint door lock, follow these guidelines:

Backset Measurement: Measure from the edge of the door to the center of the keyhole. This distance is crucial for ensuring the lock fits properly.

Centres PZ Measurement: The PZ measurement is the distance from the center of the keyhole to the center of the handle hole. Use a ruler to measure this distance accurately.

Faceplate Measurement: To measure the faceplate, determine the width and height of the area where the faceplate will be installed. This ensures a perfect fit and aesthetic finish.

Operation Selection: Choose the operation type based on your door's design and functionality. Options may include lift lever or split spindle, depending on your preference.

By following these measurement guidelines, you can ensure that your Maco C-TS lock is installed correctly and functions optimally.
