Latch Deadbolt 4 Mushrooms Lift Lever Multipoint Door Lock

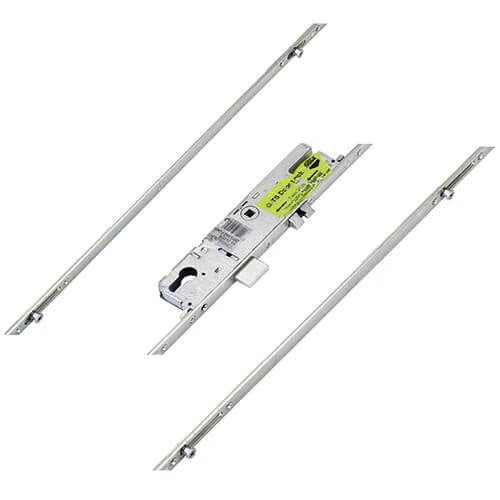

Product Overview: Maco G-TS Multipoint Door Lock

The Maco G-TS multipoint door lock is designed for enhanced security and functionality, featuring a robust configuration of 4 rollers, 1 deadbolt, and 1 latch.

Compatibility and Versions

While most G-TS locks have been discontinued, some models with either a 28mm or 35mm backset remain available. These can serve as replacements for original versions with minimal adjustments. It's crucial to select the correct gearbox version, as they are not interchangeable. The current G-TS lock, which began production in 2010, has distinct screw fixing positions compared to earlier models.

Identifying Your Version

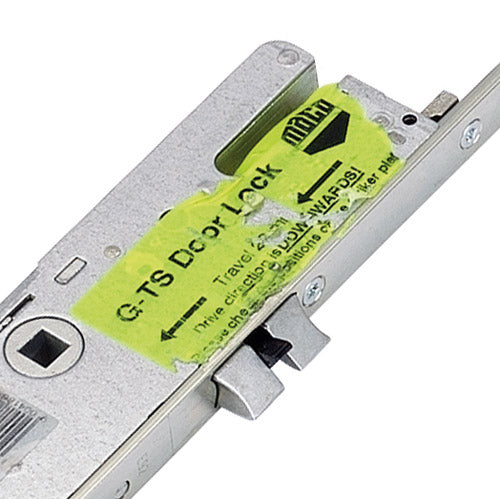

To determine if you have the new or old version, look for the square latch reversal button next to the latch, which is a feature of the newer model.

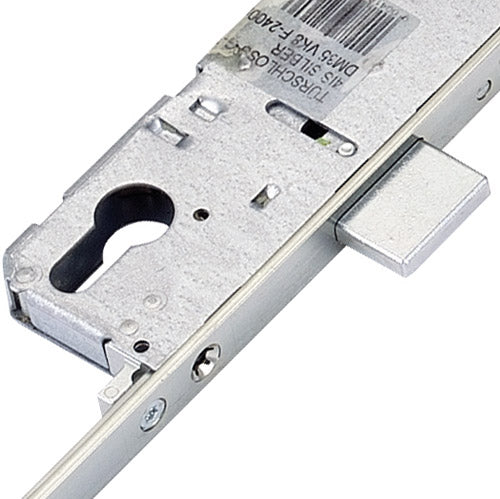

Specifications

• Dimensions: 228mm high, backset + 18mm wide
• Centre Measurement (PZ): 92mm
• Latch Height: 29mm
• Deadbolt Height: 30mm
• Distance from Latch to Deadbolt: 54mm
• Screw Fixing: Fixed to faceplates with 3 screws
  • Top to middle screw: 57mm
  • Middle to bottom screw: 180mm

Roller Functionality

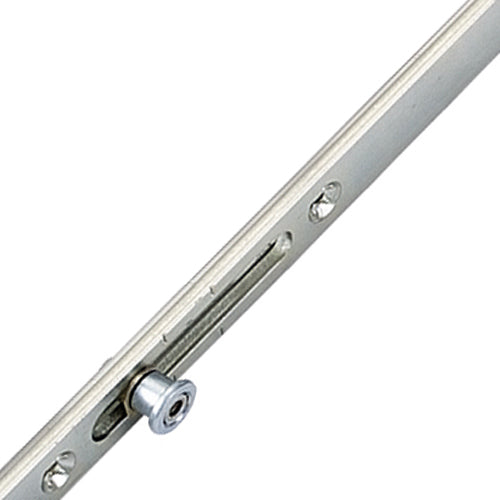

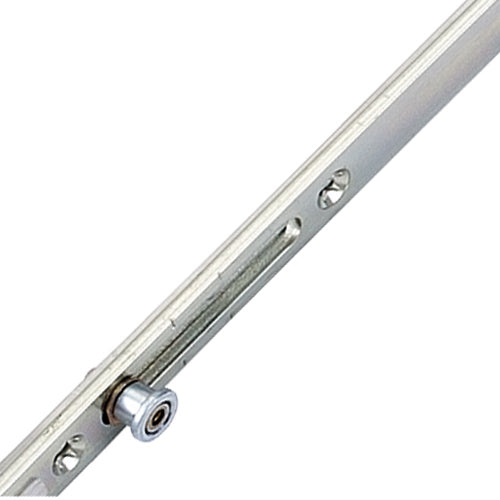

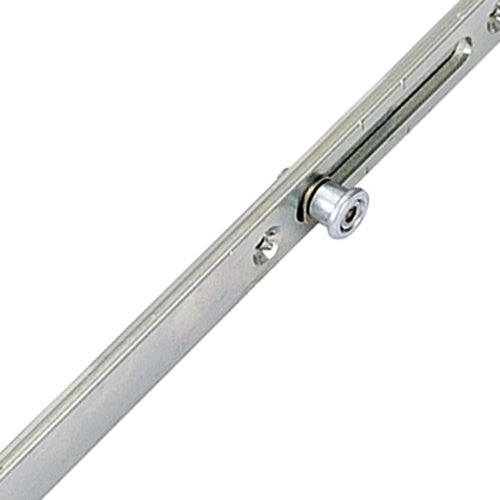

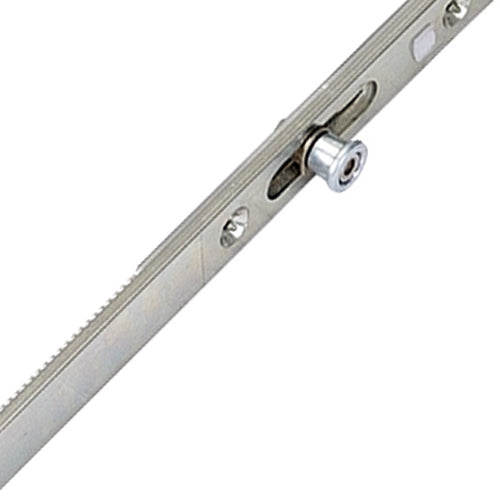

Maco's rollers, referred to as i.S. cams, are crafted from hardened steel to resist tampering. These i.S. cams function similarly to rollers, providing compression to pull the door against the frame, which aids in preventing dust and water ingress. While they do not significantly enhance security, they help prevent door warping by supporting the door's full height, contingent on the rollers being properly engaged in their keeps. Rollers can typically be adjusted by 1mm for optimal weather sealing.

Operation Instructions

To Lock the Door:

1. Lift the handle upwards to engage the locking points.
2. Secure the locking points and main deadbolt (if applicable) by turning the key.

To Unlock the Door:

1. Unlock the system by turning the key.
2. Push the handle downwards to disengage the locking points and retract the latch.

This comprehensive overview ensures you understand the features and operation of the Maco G-TS multipoint door lock, providing both security and ease of use.

Product Specification

• Manufacturer: Maco
• Spindle Size: 8mm
• Rollers: 4
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Single 8mm
• Handing: Non handed
• Distance Between Inner Locking: 870mm
• Distance Between Outer Locking: 1635mm
• Height: 2400mm
• Top Roller to Spindle: 795mm
• Bottom Roller to Spindle: 840mm
• Door Material: UPVC, Aluminium

Measuring Guidelines

Backset Measurement: To measure the backset, take a ruler and measure the distance from the edge of the door to the center of the lock hole. This will give you the backset measurement needed for proper fitting.

Centres (PZ) Measurement: To measure the centres, measure the distance from the center of the keyhole to the center of the handle hole. This is crucial for ensuring that the lock aligns correctly with the handle.

Faceplate Measurement: To measure the faceplate, you need to measure the width and height of the area where the faceplate will be installed. This ensures a proper fit and aesthetic finish.

Operation Selection: The operation of the lock can vary based on the specific model. Ensure to select the appropriate operation type from the drop-down menu based on your needs.

These guidelines will help you accurately measure and select the right specifications for your Maco G-TS multipoint door lock.
