Latch Deadbolt 3 Deadlatches Auto Locking Multipoint Door Lock

Product Overview: Elite Automatic Multipoint Door Lock

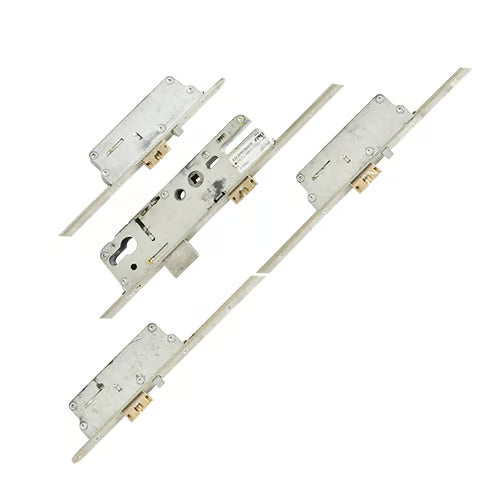

The Elite Auto multipoint door lock is designed for enhanced security and convenience, featuring a robust configuration that includes 1 deadbolt, 1 latch, and 3 autolatches. This innovative locking system is perfect for modern timber and composite doors, providing a seamless locking experience without the need to lift the handle.

Key Features:

• Automatic Engagement: The unique trigger mechanism activates when the door closes, automatically throwing the deadlatches. This eliminates the need for manual handle lifting, ensuring the door is securely locked every time.
• Versatile Applications: Available in standard and "Heritage" configurations, these locks are suitable for various door types, particularly those with pull handles where the euro hole is concealed by an escutcheon.
• Durable Construction: Manufactured in Europe, the locks feature a "Silbear" coating that provides 480 hours of salt spray protection, ensuring longevity and resistance to the elements.
• Identifiable Design: Each Elite lock is marked with an Elite logo on the faceplate, and the gearboxes include a distinctive slot and piercing for bolt-through handles.

Benefits of Automatic Locking:

Unlike traditional multipoint locks, which may leave the door secured only by the central latch, the Elite automatic locking system engages all locking points—top, middle, and bottom—when the door is closed. This comprehensive engagement helps prevent warping and bowing of the door over time, maintaining its structural integrity.

Compatibility and Specifications:

Elite locks are compatible with existing Roto-Frank systems, utilizing the same tooling and specifications. The automatic gearboxes are available in 35mm or 45mm backsets, with a single spindle design.

• Gearbox Dimensions: 200mm high x backset + 19mm
• Deadbolt Projection: 20mm, height 32mm
• Latch Height: 30mm, projection 10mm
• Distance Between Latch and Deadbolt: 63mm
• Centre Measurements: 62mm and 92mm, with the top spindle positioned 122mm from the bottom of the case.

Operation Instructions:

To Lock the Door:

1. Close the door to automatically engage the latch and locking points.
2. Turn the key to deadlock the mechanism.

To Unlock the Door:

1. Turn the key to unlock the mechanism.
2. If applicable, push the lever down to retract the locking points, or turn the key an additional quarter turn to retract the latch.

Conclusion:

The Elite Automatic Multipoint Door Lock combines advanced security features with user-friendly operation, making it an ideal choice for modern door installations. With its durable construction and automatic locking capabilities, it ensures peace of mind and convenience for homeowners.

Product Specification

• Manufacturer: Elite
• Spindle Size: 8mm
• Deadbolts: 1
• Latch: 1
• Autolatches: 3
• Main Gearbox: Latch & deadbolt
• Spindle: Single 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1590mm
• Height: 1770mm
• Top Autolatch to Spindle: 298mm
• Bottom Autolatch to Spindle: 1292mm
• Door Material: Timber, Composite

Measuring Guidelines

How to Measure the Backset: To measure the backset, take a ruler and measure the distance from the edge of the door to the center of the lock cylinder. This measurement is crucial for ensuring that the lock fits properly within the door frame.

How to Measure the Centres (PZ): The PZ measurement is the distance from the center of the keyhole to the center of the handle hole. Use a tape measure to find this distance accurately, as it ensures that the lock and handle align correctly for smooth operation.

How to Measure the Faceplate: To measure the faceplate, you need to measure the width and height of the area where the lock will be installed. This will help you select the correct faceplate size from the drop-down options, ensuring a perfect fit for your door.

Operation: The operation of the lock refers to how the locking mechanism engages and disengages. Ensure to select the appropriate option from the drop-down menu based on your specific needs and preferences.
