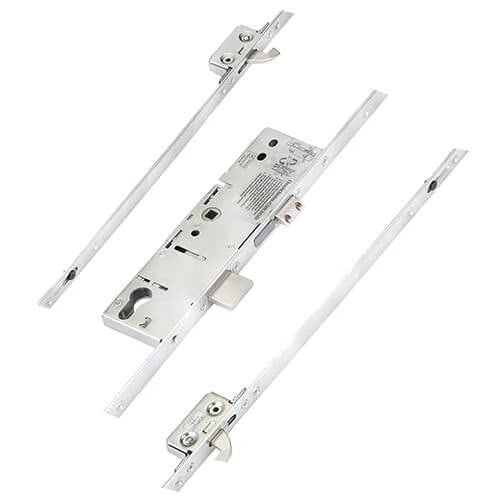

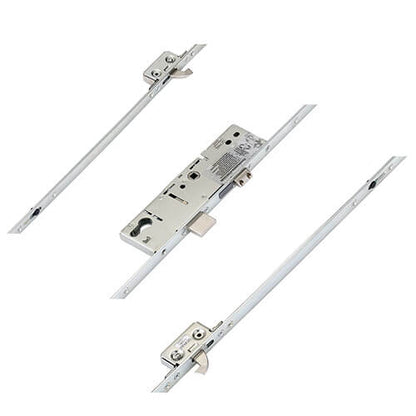

Latch Deadbolt 2 Small Hooks Split Spindle Multipoint Door Lock - 20mm Faceplate - Option 3 (top hook to spindle = 680mm)

This ERA Deadbolt multipoint door lock features 2 Hooks, 1 Deadbolt & 1 Latch.

An ERA Multipoint lock is readily identifiable, but be aware of the pitfalls. ERA manufacture locks for a lot of door and window manufacturers and this can lead to rebranding which conceals the original manufacturer. Some faceplates will bear the ERA logo but some will have Surelock, Saracen, Spartan or other brand names on.

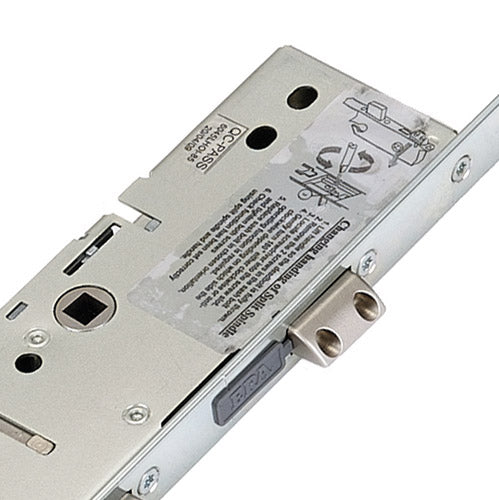

Look for the holdback snib on the faceplate . This is usually grey for deadbolt and hook bolt locks , and blue for Vectis locks . Some of the rebranded ones may come in different colors such as black or green.

It’s worth noting that ERA locks are sometimes referred to as Saracen, for their history in the double glazing industry. Most latch and deadbolt installations use a split spindle system, which makes replacements easier because you are only dealing with one locking function. SureFire locks are an exception.

We recommend removing the multipoint lock from the door to correctly identify it, especially if the brand is not known. ERA gearboxes are unique, having a square shape with no cutouts in the corners, 221 mm long and width as per the backset plus 18 mm.

All ERA gearboxes are the same size so you can get backsets of 30mm, 35mm or 45mm. They can fit a range of locks, including traditional deadbolts and hook bolts, with the British Standard Fortress invincible gearbox adding extra security features.

Most of the ERA gearboxes are interchangeable and can be tailored to client requirements. The gearboxes have a 24mm high latch, a 30mm high deadbolt and specific screw sizes for installation.

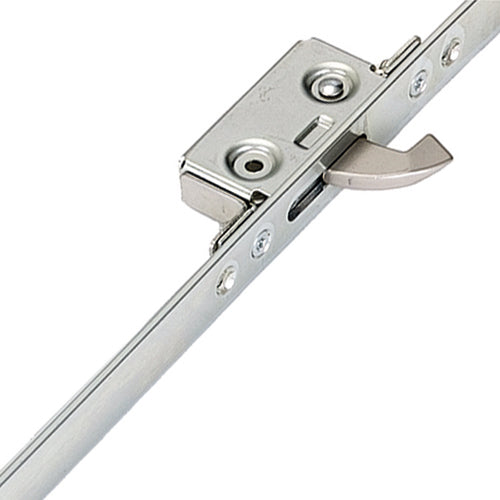

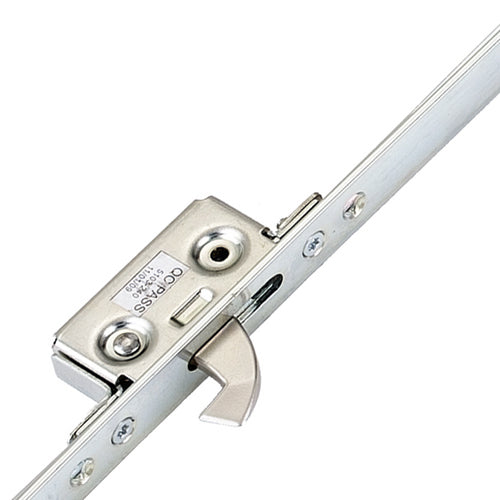

ERA multipoint locks feature two hook arrangements; a standard hook for tight spaces and a larger steel hook for security purposes. Both hooks work bi-directional, giving extra security.

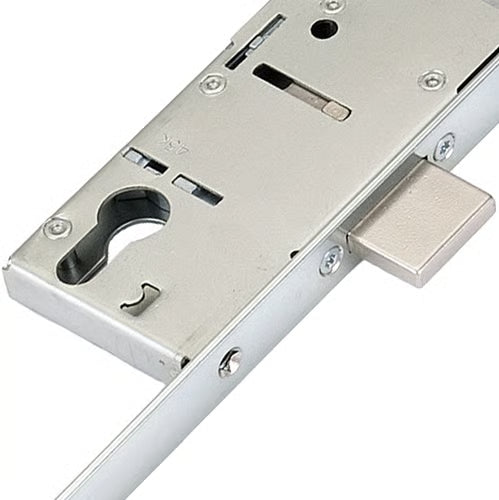

The linear bolt, as ERA calls its deadbolt, has an 18mm throw and pulls the door tight against the frame. These locks are commonly used on timber and composite doors.

INSTRUCTIONS Operate:

Secure the door:

1. Lift the handle to set the lock points.
2. Lock the locking points and the main deadbolt with the key.

To open the door:

1. Insert key, unlock.
2. Drop the handle to release the locking points and retract the latch.

This Lock has been corrosion resistant to BS EN 1670:2007 Grade 4 and endurance tested to 50,000 cycles for long lasting performance. It is designed to meet the security standards PAS24:2012.

We also offer a selection of associated products for the ERA Deadbolt multipoint door locks such as keeps, spindles, handles and accessories, providing you with a complete solution for your locking needs. The ERA multipoint lock is known for its quality and security features whether it is used on UPVC, aluminium, timber or composite doors.

Product Specification

• Manufacturer: ERA
• Backset: Choose from drop down

• PZ Centers: 92 mm

• Spindle Size: 8 mm
• Hooks: 2 Hints:
• Dead Bolts: 1
• Latch: 1.
• Main Gearbox: Latch and Deadbolt
• Split spindle 8 mm
• Handed: Non-handed
• Inner locking distance: 1380 mm
• Height 2100 mm
• Top hook to spindle 680 mm
• Bottom Hook to Spindle: 700 mm
• Material of Door: UPVC, Aluminium, Timber, Composite
