Latch Deadbolt 2 Rollers Lift Lever Multipoint Door Lock

Product Overview: Mila Milamaster Multipoint Door Lock

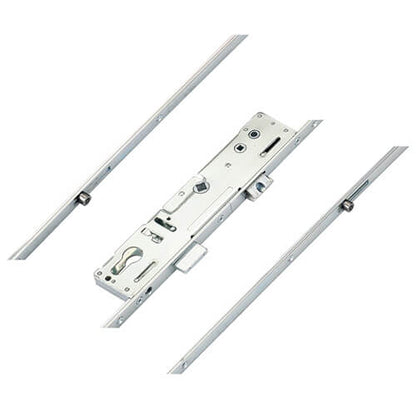

The Mila Milamaster multipoint door lock is engineered for security and durability, featuring a robust design with 2 rollers, 1 deadbolt, and 1 latch. This lock is part of the Milamaster range, proudly made in the UK and based on the trusted Lockmaster series.

Key Features:

• Versatile Design: Compatible with shootbolts and supplied with a sprung gearbox, the Milamaster lock is adaptable to various door configurations.
• Identification: Even without the logo, Milamaster locks are identifiable by their upwards throwing mechanism and a large gearbox measuring 228mm.
• Popular Choice: As the best-selling multipoint door lock in the UK, Lockmaster, now part of Yale, offers a range that includes Millenco and other brands.
• Adaptability: We stock the most popular variants, and custom adaptations can be made for minor alterations. Exact products can also be sourced as needed.

Installation Notes:

• Locking Point Variations: Older versions may have different locking point locations, necessitating a routing prep enlargement of 40-50mm for proper installation.

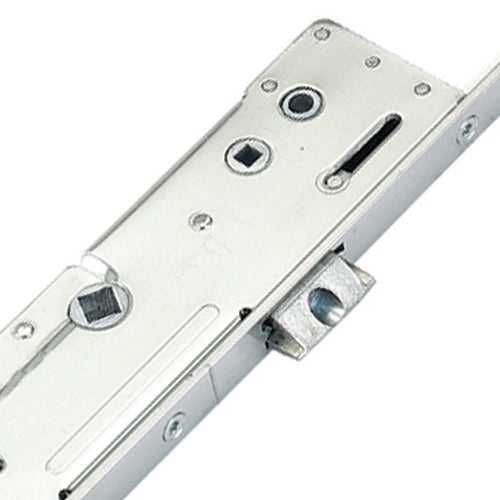

• Gearbox Options: Available in 35mm or 45mm backsets, with double or single spindle mechanisms. Double spindles are unsprung and should be paired with sprung door handles.

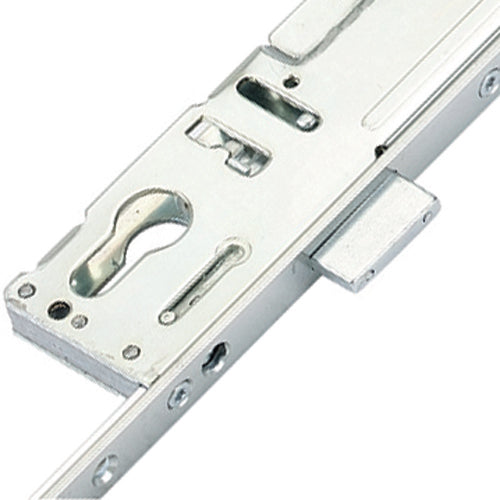

• Dimensions: Gearboxes measure 228mm high plus backset, with a latch and deadbolt height of 30mm each. The distance between the latch and deadbolt is 65mm.
• Screw Hole Measurements: Gearboxes are fitted with three screw holes, with the top to middle and middle to bottom holes both measuring 109mm apart.

Operation Instructions:

• To Lock:

  1. Lift the handle to engage the locking points.
  2. Turn the key to secure the locking points and deadbolt.

• To Unlock:

  1. Turn the key to unlock.
  2. Push the handle down to disengage the locking points and retract the latch.

Additional Information:

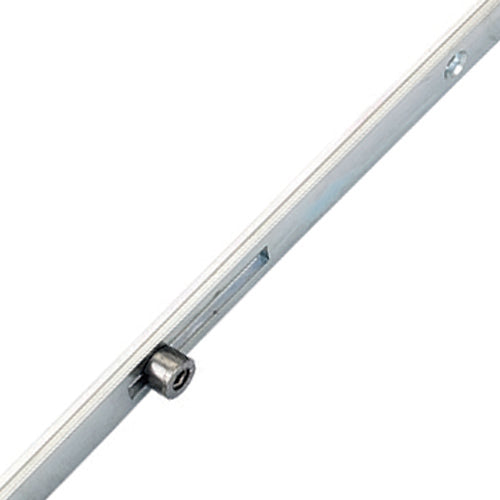

• Roller Functionality: Rollers assist in compressing the door against the frame, enhancing weather sealing and preventing warping, provided they are engaged correctly.

• Corrosion Resistance: The lock has been tested to BS EN 1670:2007 Grade 4 standards, ensuring durability against corrosion for up to 240 hours.

The Mila Milamaster multipoint door lock combines functionality with security, making it an excellent choice for enhancing your door's protection.

Product Specification

• Manufacturer: Milamaster
• Spindle Size: 8mm
• Rollers: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Single 8mm
• Handing: Non handed
• Distance Between Inner Locking: 779mm
• Height: 2100mm
• Top Roller to Spindle: 370mm
• Bottom Roller to Spindle: 409mm
• Door Material: UPVC, Aluminium

Measuring Guidelines:

Backset Measurement:
To measure the backset, take a tape measure and measure the distance from the edge of the door to the center of the lock cylinder. This distance is crucial for ensuring a proper fit.

Centres PZ Measurement: The PZ measurement is the distance from the center of the keyhole to the center of the handle. Use a tape measure to find this distance accurately, as it affects the alignment of the lock and handle.

Faceplate Measurement: To measure the faceplate, you need to measure the width and height of the existing faceplate on your door. This ensures that the new lock will fit seamlessly into the door frame.

Operation Details: The operation of the lock can vary based on the specific model. Typically, it involves lifting the handle to engage the locking mechanism and turning the key to secure or release the lock. Always refer to the specific product manual for detailed instructions.

These specifications and measurements are essential for ensuring that the Mila Milamaster multipoint door lock functions effectively and fits your door perfectly.
