Latch Deadbolt 2 Rollers Lift Lever Multipoint Door Lock

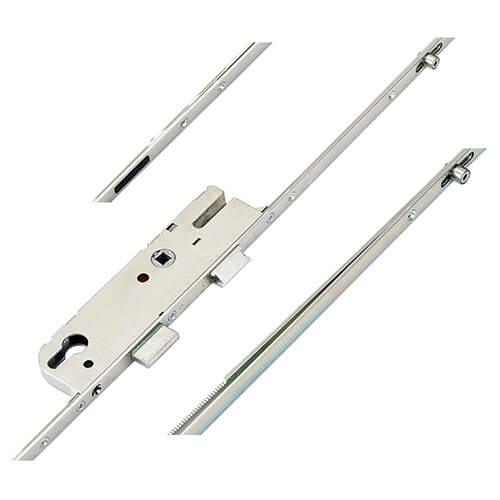

Product Overview: GU Europa Multipoint Door Lock

The GU Europa multipoint door lock is designed for enhanced security and functionality, featuring a robust configuration of 2 rollers, 1 deadbolt, and 1 latch. This lock is part of the GU range known as "SECURY," with the Europa series specifically offering lever and split spindle operated versions.

Key Features:

• Versatile Operation: Available in both lift lever and split spindle nightlatch operations, ensuring flexibility for various door types.
• Identifiable Design: GU locks are easily recognizable by the logo stamped on the faceplate. For older doors, you may encounter the original style locks, which differ from the updated versions.
• Compatibility: If you're replacing an old GU lock, you can upgrade to the new style. However, adjustments may be necessary for the center deadbolt and latch keep to fit the new lock.

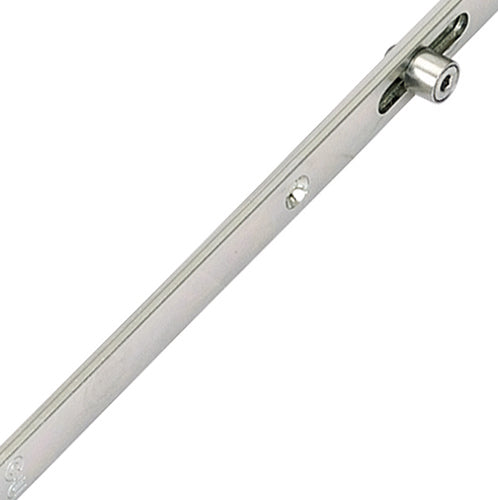

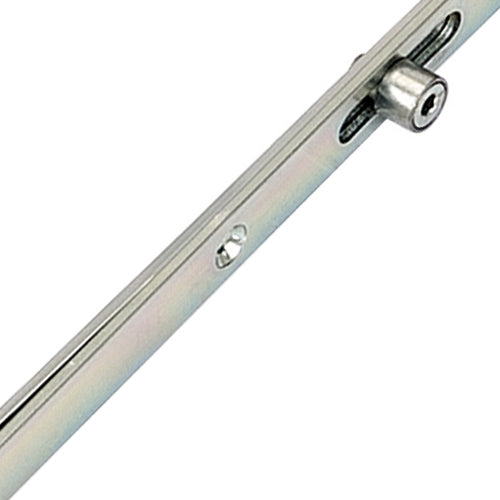

• Locking Mechanism: The Europa range includes locks with hooks, deadbolts, and rollers, with variations in inbound and outbound roller configurations. Always verify product descriptions for precise measurements.

Historical Context:

Introduced in 1979 at the Deubau Trade Fair, the GU-SECURY multi-point locking system has evolved significantly, with innovations like the self-locking mechanism launched in 1996. The new style gearboxes are designed for compatibility with a wide range of backsets, ensuring a fit for various door installations.

Installation and Adjustment:

When replacing locks, ensure to check the compatibility of the new gearboxes with the existing keeps. The new style gearboxes feature a distinct vertical groove at the top, differentiating them from the old style, which has a cut-out corner.

Operational Instructions:

To operate the GU Europa lock:

• Locking:
  • Lift the handle to engage the locking points.
  • Turn the key to secure the deadbolt and locking points.
• Unlocking:
  • Turn the key to unlock.
  • Push the handle down to disengage the locking points and retract the latch.

Conclusion:

The GU Europa multipoint door lock combines security, ease of use, and adaptability, making it an excellent choice for modern door installations. Whether upgrading an old lock or installing a new one, the GU Europa ensures reliable performance and peace of mind.

Product Specification

• Manufacturer: GU
• Spindle Size: 8mm
• Rollers: 2
• Deadbolts: 1
• Latch: 1

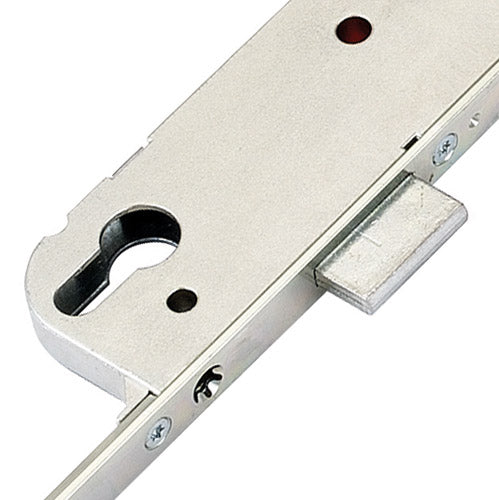

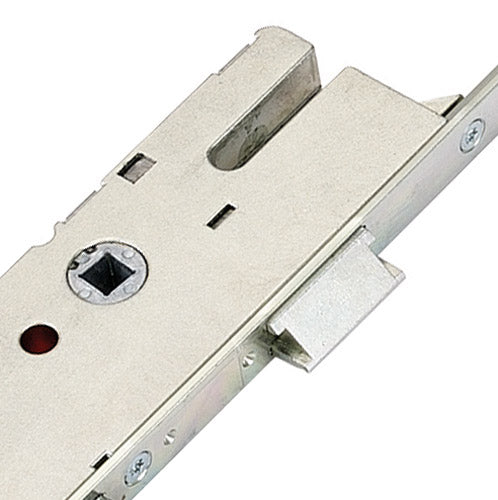

• Main Gearbox: Latch & deadbolt
• Spindle: Single 8mm
• Handing: Non handed
• Distance Between Inner Locking: 670mm
• Height: 1830mm
• Top Roller to Spindle: 279mm
• Bottom Roller to Spindle: 391mm
• Door Material: UPVC, Aluminium

Measuring Guidelines:

To ensure accurate measurements for your GU Europa multipoint door lock, follow these guidelines:

Backset Measurement: To measure the backset, take a tape measure and measure the distance from the edge of the door to the center of the lock cylinder. This is crucial for ensuring the lock fits properly.

Centres PZ Measurement: For the PZ measurement, measure the distance from the center of the keyhole to the center of the handle hole. This measurement is essential for aligning the lock correctly.

Faceplate Measurement: To measure the faceplate, you will need to measure the width and height of the existing faceplate on your door. This ensures that the new lock will fit seamlessly into the door frame.

By following these steps, you can ensure that your new GU Europa multipoint door lock will be installed correctly and function optimally.
