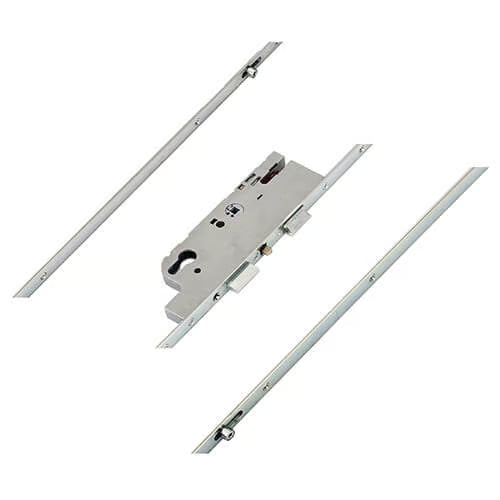

Latch Deadbolt 2 Rollers Lift Lever Multipoint Door Lock

Product Overview: GU Ferco Fercomatic Multipoint Door Lock

The GU Ferco Fercomatic multipoint door lock is a robust locking solution designed for enhanced security and functionality. This lock features:

• 2 Rollers
• 1 Deadbolt
• 1 Latch

Key Features:

The Fercomatic lock is an evolution of the Tripact lock, distinguished by a pin that connects the latch and deadbolt, ensuring that the locking points engage automatically when the door is closed. This innovative design is a precursor to modern slam shut door locks, which are prevalent in contemporary door manufacturing.

Security and Design:

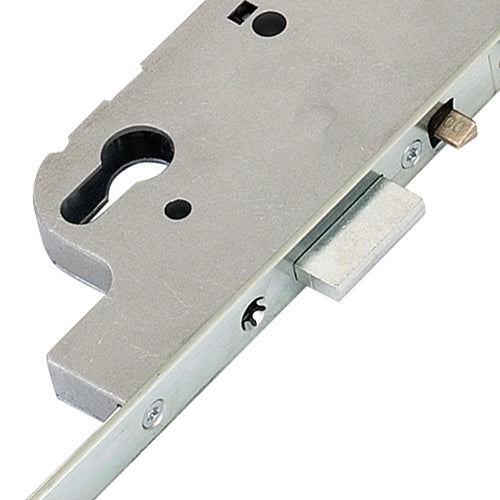

Unlike standard Ferco locks, the Fercomatic includes a deadbolt, enhancing its security profile. Ferco locks are part of the GU group of companies and are notable for their unique 70mm centres (PZ), making them easily identifiable.

Installation and Compatibility:

Typically installed in timber doors, the trip act flip hooks are designed to minimize door preparation. The original Tripact locks were latch-only, but the addition of a deadbolt has improved their security. The early models featured a 20mm faceplate with a T-shaped rail, available only with a 40mm backset. Newer versions now include a deadbolt and a slightly smaller faceplate. If replacing an older lock, a new deadbolt keep may be necessary.

Specifications:

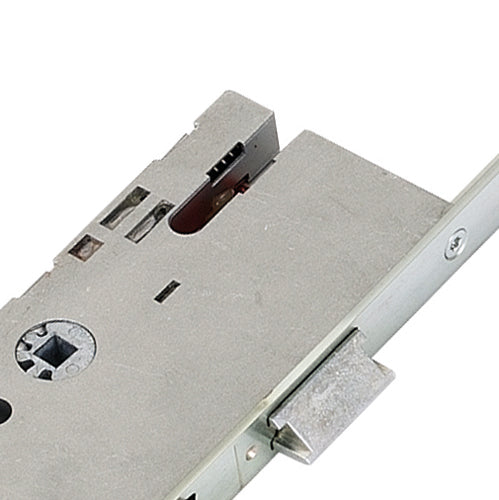

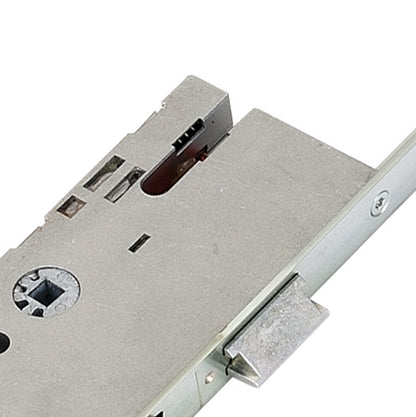

• Gearbox Dimensions: 212mm high x backset + 15mm wide

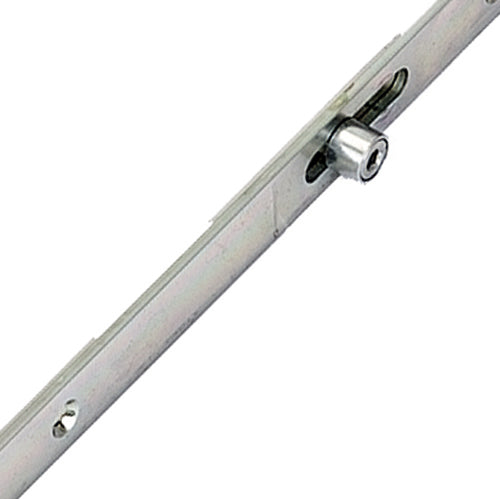

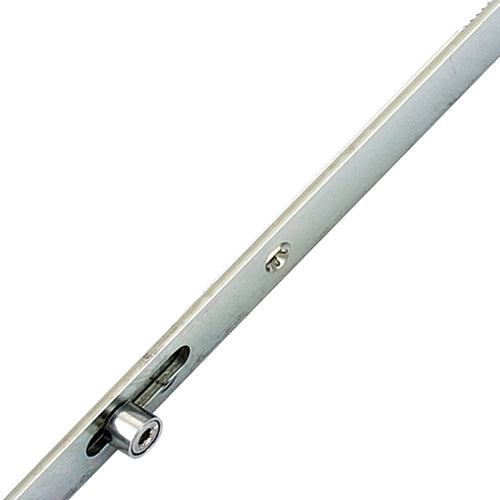

• Roller Adjustment: +/- 1mm for optimal weather sealing

Operation Instructions:

• To Lock the Door:
  • Lift the handle upwards to engage the locking points.
  • Secure the locking points and main deadbolt (if present) by turning the key.
• To Unlock the Door:
  • Unlock the system by turning the key.
  • Push the handle downwards to disengage the locking points and retract the latch.

This multipoint door lock combines functionality with security, making it a reliable choice for various door applications.

Product Specification

• Manufacturer: GU Ferco
• Spindle Size: 7mm
• Rollers: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Single 7mm
• Handing: Non handed
• Distance Between Inner Locking: 1638mm
• Height: 2150mm
• Top Roller to Spindle: 782mm
• Bottom Roller to Spindle: 856mm
• Door Material: UPVC, Aluminium

Measuring Guidelines:

Backset Measurement: To measure the backset, take a tape measure and measure the distance from the edge of the door to the center of the lock cylinder. This will give you the backset measurement needed for proper installation.

Centres Measurement: To measure the centres (PZ), measure the distance from the center of the lock cylinder to the center of the handle spindle. This is crucial for ensuring that the lock and handle align correctly.

Faceplate Measurement: To measure the faceplate, measure the width and height of the existing faceplate on the door. This will help you select the correct faceplate size from the drop-down options.

Operation Details: The operation of the lock can vary based on the specific model. Ensure to select the appropriate operation type from the drop-down menu based on your installation requirements.
