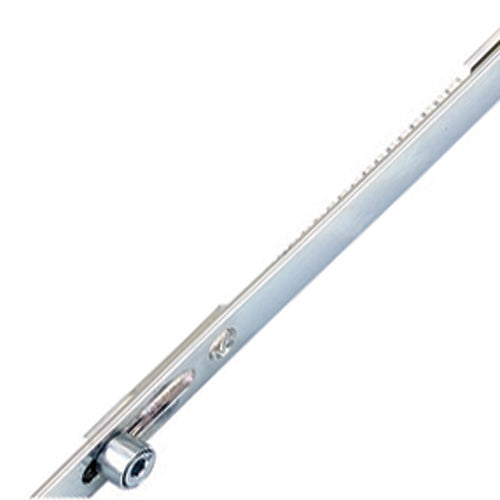

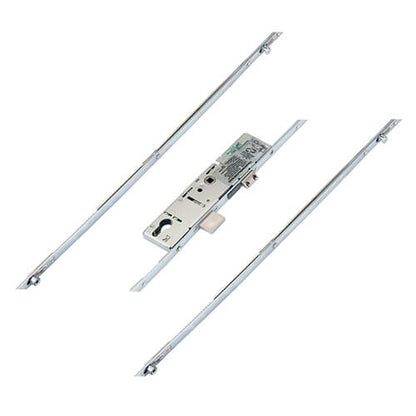

Latch Deadbolt 2 Rollers 2 Mushrooms Split Spindle Multipoint Door Lock - Option 1 (top roller to spindle = 730mm)

Product Overview: ERA Deadbolt Multipoint Door Lock

The ERA Deadbolt multipoint door lock is engineered for security and durability, featuring a robust design with 2 rollers, 2 mushrooms, 1 deadbolt, and 1 latch. This lock is a popular choice in the UK, known for its reliability and ease of identification.

Key Features:

• Versatile Compatibility: ERA manufactures locks for various door and window brands, often leading to rebranding. Look for the ERA logo on the faceplate, but be aware of other brands like Surelock, Saracen, and more.
• Distinctive Holdback Snib: The holdback snib color can indicate the lock type—grey for deadbolt and hook bolt locks, blue for Vectis locks. Note that some brands may have different colors.
• Split Spindle Mechanism: Most ERA multipoint locks utilize a split spindle mechanism, simplifying replacements by focusing on one locking function. Exceptions include SureFire locks and specific automatic locking models.

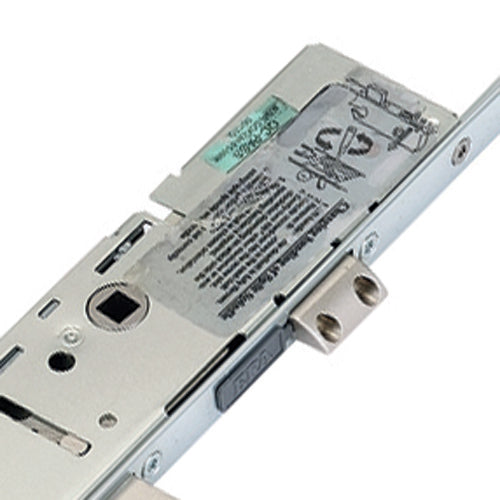

• Unique Gearbox Design: The ERA gearbox features a square design without corner cutouts, measuring 221mm in length. Available backsets include 30mm, 35mm, or 45mm, with interchangeable gearboxes for customization.

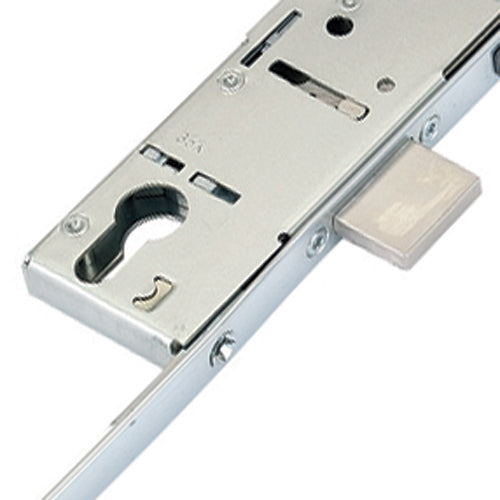

• Deadbolt Specifications: The deadbolt, or linear bolt, has an 18mm throw and is chamfered to ensure a tight fit against the door frame.

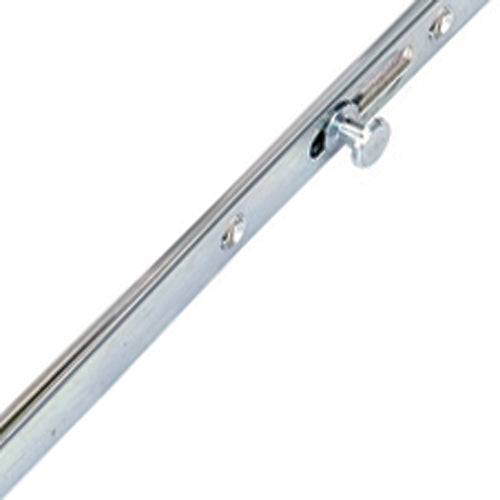

• Roller Functionality: Rollers assist in compression, enhancing weather sealing and preventing door warping. They are adjustable by +/- 1mm for optimal performance.

Operation Instructions:

To lock the door:

1. Lift the handle upwards to engage the locking points.
2. Turn the key to secure the locking points and main deadbolt.

To unlock the door:

1. Turn the key to unlock the system.
2. Push the handle downwards to disengage the locking points and retract the latch.

Compliance and Testing:

• Meets BS EN 1670:2007 Grade 4 Corrosion Resistance (240 hours).
• Endurance tested for 50,000 cycles.
• Designed to comply with PAS24:2012 standards for enhanced security.

Product Specification

• Manufacturer: ERA
• Spindle Size: 8mm
• Rollers: 2
• Mushrooms: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Split 8mm
• Handing: Non handed
• Distance Between Inner Locking: 670mm
• Distance Between Outer Locking: 1610mm
• Height: 2250mm
• Top Roller to Spindle: 730mm
• Bottom Roller to Spindle: 880mm
• Top Mushroom to Spindle: 260mm
• Bottom Mushroom to Spindle: 410mm
• Door Material: UPVC, Aluminium

For precise measurements, follow these guidelines:

Measuring the Backset:
To measure the backset, take a ruler and measure the distance from the edge of the door to the center of the lock cylinder. This distance is crucial for ensuring the lock fits properly.

Measuring the Centres (PZ):
To measure the centres, measure the distance from the center of the keyhole to the center of the handle hole. This measurement is essential for compatibility with your door hardware.

Measuring the Faceplate:
To measure the faceplate, remove the existing lock and measure the length and width of the faceplate. Ensure to note any specific shapes or cutouts that may affect the fit.

Understanding Operation:
The operation of the lock refers to how it engages and disengages. This can vary based on the type of lock mechanism used, so refer to the specific instructions provided with your lock for detailed operation guidance.

Feel free to reach out if you have any questions or need further assistance with your lock specifications!
