Latch Deadbolt 2 Rollers 2 Mushrooms Lift Lever Multipoint Door Lock

Product Overview: GU Europa Multipoint Door Lock

The GU Europa multipoint door lock is designed for enhanced security and ease of use, featuring a robust configuration that includes 2 rollers, 2 mushrooms, 1 deadbolt, and 1 latch. This lock is part of the GU range known as "SECURY," with the Europa series specifically offering lever and split spindle operated versions.

Key Features:

• Versatile Operation: Available in both lift lever and split spindle nightlatch operations, ensuring flexibility for various door types.
• Identifiable Design: GU locks are easily recognizable by the logo stamped on the faceplate. Older models may differ in style, so it's essential to check for compatibility when replacing locks.
• Compatibility and Replacement: If you have an older GU lock, you can often repair it with a replacement gearbox. However, for a complete lock replacement, the new version can be installed with minor adjustments to the deadbolt and latch keeps.
• Locking Mechanism: The Europa range includes locks with hooks, deadbolts, and rollers, which may vary in configuration and measurements. Always verify product descriptions to ensure the correct fit.

Specifications:

• Gearbox Dimensions: 191mm high (excluding fixing lugs), with a width of backset + 16mm.

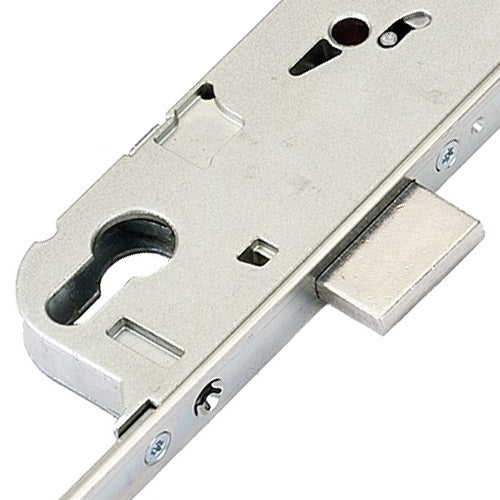

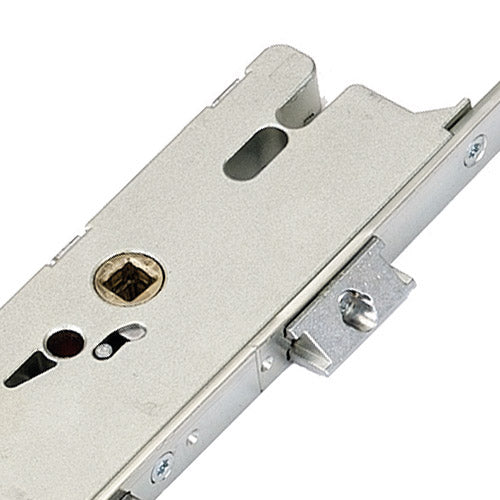

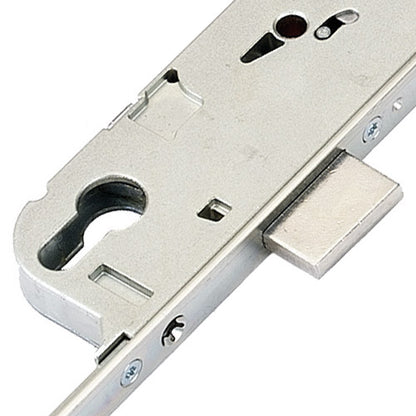

• Latch and Deadbolt Sizes: Latch is 32mm high, deadbolt is 35mm high, with a 54mm distance from the bottom of the latch to the top of the deadbolt.
• Screw Fixing: Fixed to faceplates with 3 screws; measurements between screws are 108mm (top to middle) and 92mm (middle to bottom).

Installation Tips:

• Always allow for a 2mm margin when measuring your backset with the faceplate attached.
• For optimal weather sealing, rollers can be adjusted by +/- 1mm.

Operating Instructions:

• To lock the door:
  • Lift the handle upwards to engage the locking points.
  • Turn the key to secure the locking points and main deadbolt.
• To unlock the door:
  • Turn the key to unlock the system.
  • Push the handle downwards to disengage the locking points and retract the latch.

The GU Europa multipoint door lock combines security, functionality, and ease of installation, making it an excellent choice for modern door systems.

Product Specification

• Manufacturer: GU
• Spindle Size: 8mm

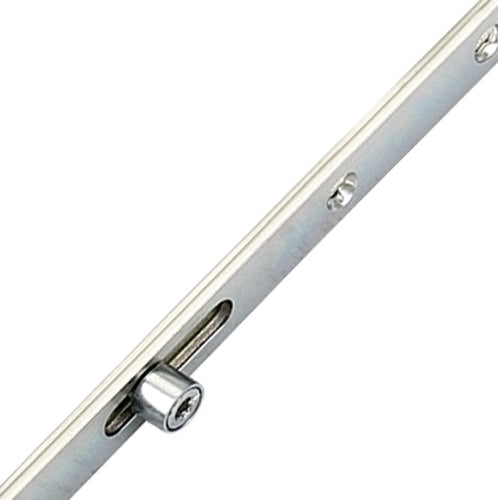

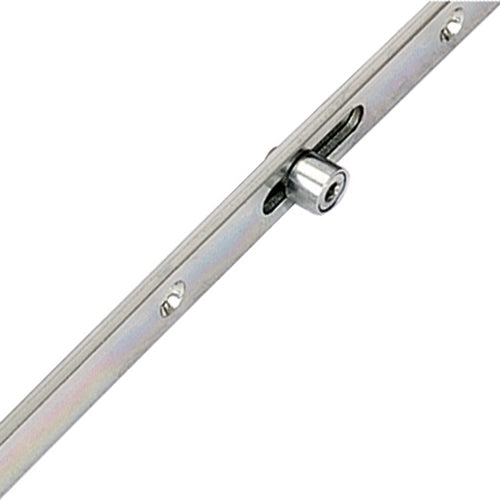

• Rollers: 2

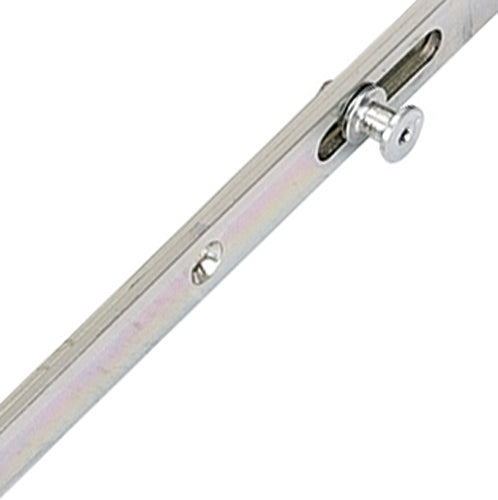

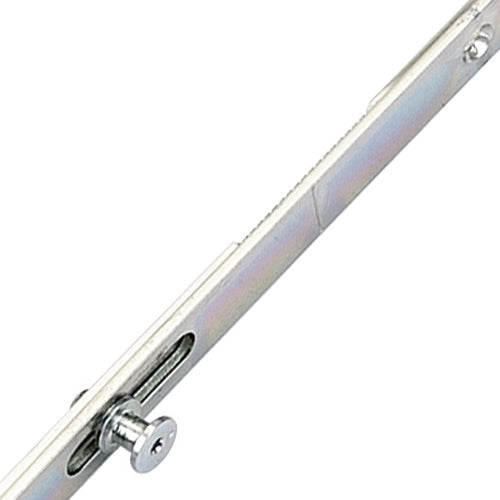

• Mushrooms: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Single 8mm
• Handing: Non handed
• Distance Between Inner Locking: 670mm
• Distance Between Outer Locking: 1610mm
• Height: 2285mm
• Top Roller to Spindle: 279mm
• Bottom Roller to Spindle: 391mm
• Top Mushroom to Spindle: 749mm
• Bottom Mushroom to Spindle: 861mm
• Door Material: UPVC, Aluminium

Measuring Guidelines:

Backset Measurement: To measure the backset, place a ruler or measuring tape against the edge of the door and measure the distance from the edge to the center of the lock cylinder. This measurement is crucial for ensuring the lock fits properly.

Centres PZ Measurement: To measure the centres, find the distance between the center of the keyhole and the center of the handle hole. This is typically measured in millimeters and is essential for compatibility with your door hardware.

Faceplate Measurement: To measure the faceplate, remove the existing lock (if applicable) and measure the length and width of the faceplate. Ensure to account for any additional features or cutouts that may be present.

Operation Selection: When selecting the operation from the drop-down, consider the type of handle or locking mechanism you prefer. Options may include lift lever or split spindle, which can affect how the door operates and locks.
