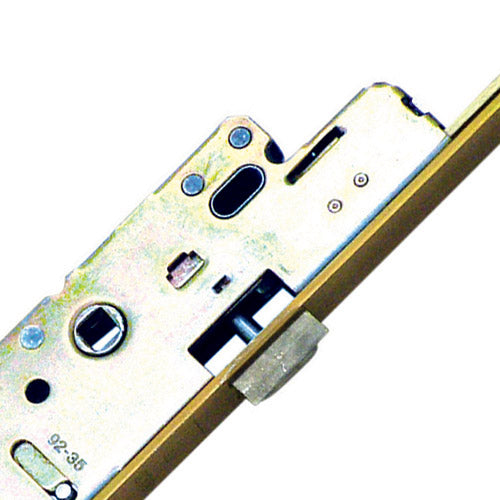

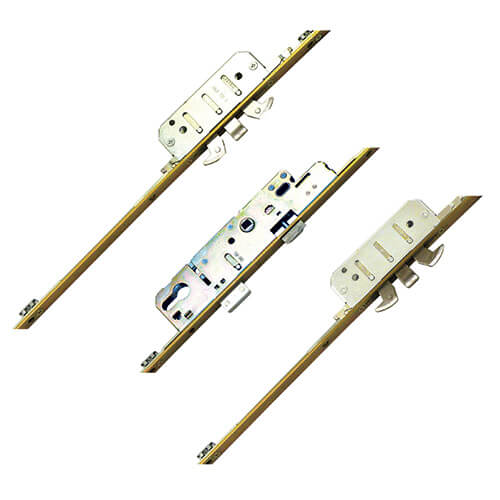

Latch Deadbolt 2 Poseidon Bolts Lift Lever Multipoint Door Lock (distance between Poseidon bolts = 1410mm)

Product Overview: AGB Multipoint Door Lock

The AGB multipoint door lock is a robust security solution featuring 4 hooks, 3 deadbolts, and 1 latch, ensuring maximum protection for your home.

Key Features:

• Italian Craftsmanship: AGB locks are proudly manufactured in Italy, known for their unique locking positions that set them apart in the market.

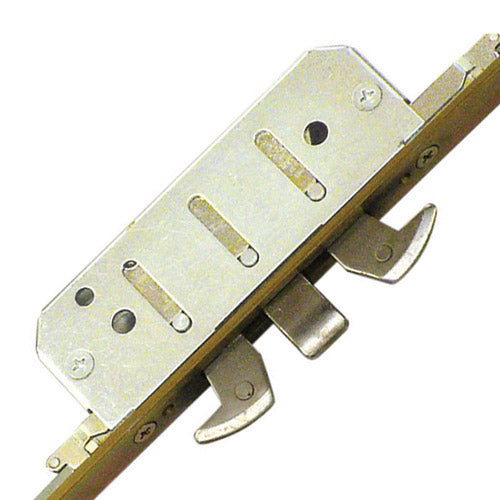

• Poseidon Lock Design: The AGB Poseidon lock is the only configuration currently available, showcasing a distinctive hook and deadbolt arrangement that resembles a trident. Each hook operates in opposite directions, with a deadbolt positioned between them for enhanced security.
• Identification: AGB UPVC door locks can be easily recognized by the logo stamped on the faceplate and the unique Poseidon locking mechanism. They are specifically designed with a 35mm backset and a 16mm faceplate, ensuring compatibility with various door types.

Operation: Lift Lever Mechanism

To Lock the Door:

1. Lift the handle upwards to engage all locking points.
2. Secure the locking points and main deadbolt (if applicable) by turning the key.

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle downwards to disengage the locking points and retract the latch.

Product Specification

• Manufacturer: AGB
• Spindle Size: 8mm
• Hooks: 4
• Deadbolts: 3
• Latch: 1

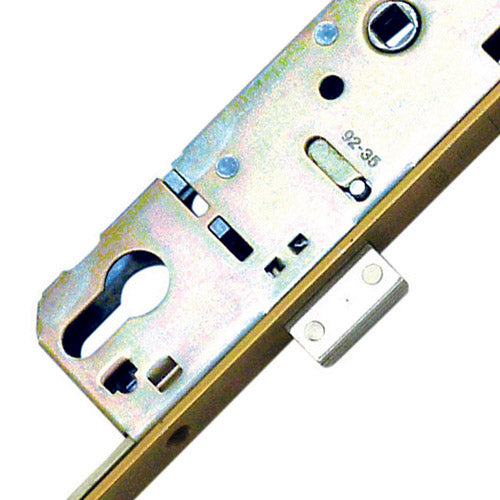

• Main Gearbox: Latch & deadbolt
• Spindle: Single 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1410mm
• Height: 2200mm
• Top Deadbolt to Spindle: 665mm
• Bottom Deadbolt to Spindle: 745mm
• Door Material: UPVC, Aluminium, Timber, Composite

Measuring Guidelines

To ensure a perfect fit for your AGB multipoint door lock, follow these simple measuring guidelines:

Backset Measurement:

1. Measure from the edge of the door to the center of the keyhole.
2. This distance is your backset measurement.

Centres PZ Measurement:

1. Measure from the center of the keyhole to the center of the handle hole.
2. This will give you the PZ measurement.

Faceplate Measurement:

1. Measure the width and height of the existing faceplate.
2. Ensure to note any specific shapes or cutouts for a precise fit.

By following these steps, you can confidently select the correct specifications for your door lock installation.
