Latch Deadbolt 2 Pins Lift Lever Multipoint Door Lock - Shootbolt Compatible (top pin to spindle = 375mm)

Product Overview: KFV Lever Multipoint Door Lock

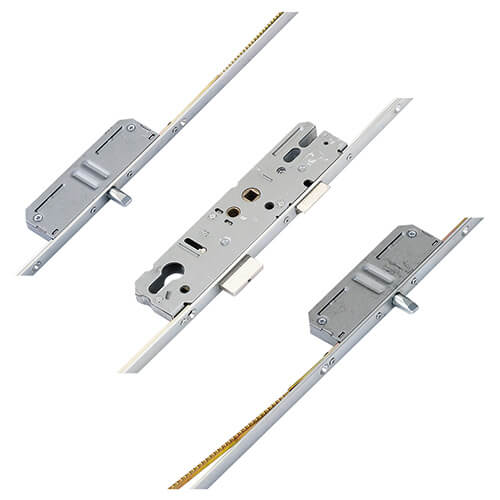

The KFV Lever multipoint door lock is designed for enhanced security and ease of use, featuring a robust configuration that includes 2 Pin Bolts, 1 Deadbolt, and 1 Latch.

Identification Tips

Identifying a KFV multipoint door lock can be tricky, especially with older models that lack a stamp on the faceplate. However, recent models proudly display the KFV logo.

Technical Specifications

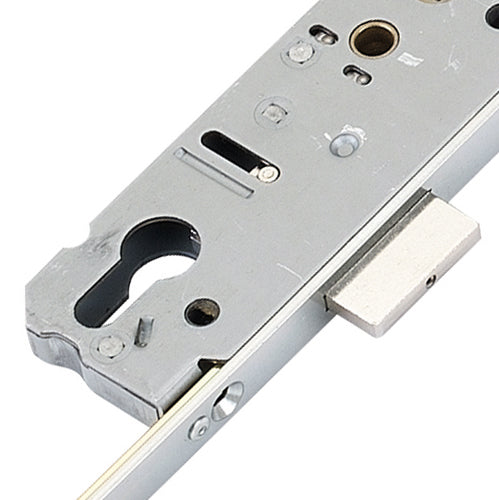

• Gearbox Type: Single spindle
• Centre Measurement: 92mm
• Overall Gearbox Height: 210mm
• Bolt Throw: 21mm
• Distance from Latch Bottom to Deadbolt Top: 56mm
• Spindle to Top of Case Distance: 85mm

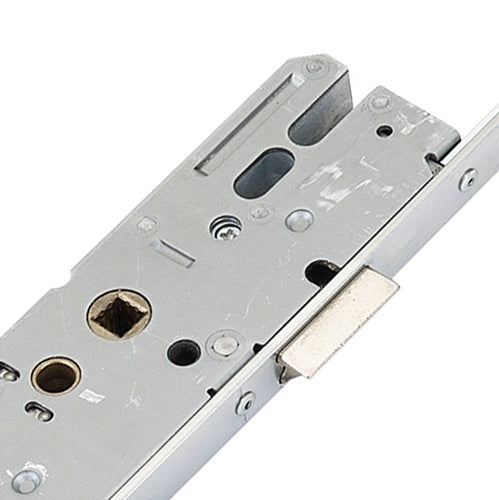

The gearbox is designed with both a hole and a groove to accommodate bolt-through handle fixings.

Measuring Backset

When measuring the backset, remember to account for a 2-3mm allowance for the faceplate. For instance, a 35mm backset gearbox will measure 32mm when detached from the strip.

Locking Mechanism

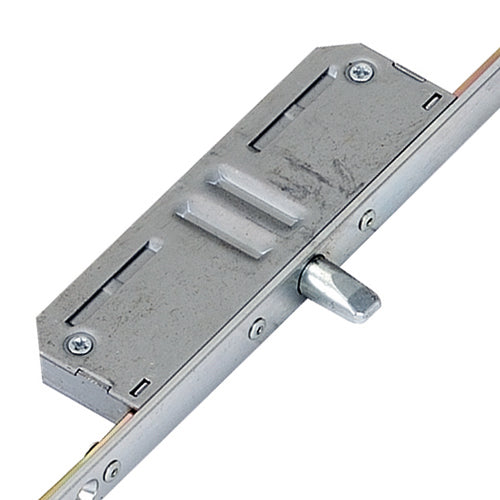

KFV pins are crafted from hardened steel for enhanced resistance against sawing. The pins are small, round bolts with a chamfered tip that extend when the lock is engaged. The deadbolts feature a unique chamfered center, aiding in the lock's connection to the keep.

Operating Instructions

To Lock the Door:

• • Lift the handle upwards to engage the locking points.
  • Secure the locking points and main deadbolt (if applicable) by turning the key.

To Unlock the Door:

• • Unlock the system by turning the key.
  • Push the handle downwards to disengage the locking points and retract the latch.

Product Specification

• Manufacturer: KFV
• Spindle Size: 8mm
• Pin Bolts: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Single 8mm
• Handing: Non handed
• Distance Between Inner Locking: 870mm
• Height: 1630mm
• Top Pin to Spindle: 375mm
• Bottom Pin to Spindle: 495mm
• Door Material: UPVC, Aluminium, Timber, Composite

Measuring Guidelines

To ensure accurate measurements for your KFV multipoint door lock, follow these guidelines:

Backset Measurement: To measure the backset, take the distance from the edge of the door to the center of the lock cylinder. Remember to account for a 2-3mm allowance for the faceplate.

Centres PZ Measurement: The PZ measurement is the distance from the center of the keyhole to the center of the handle. Use a ruler or measuring tape for precision.

Faceplate Measurement: To measure the faceplate, determine its width and length. This is crucial for ensuring compatibility with your door frame.

These measurements are essential for selecting the correct components and ensuring a secure fit for your KFV multipoint door lock.
