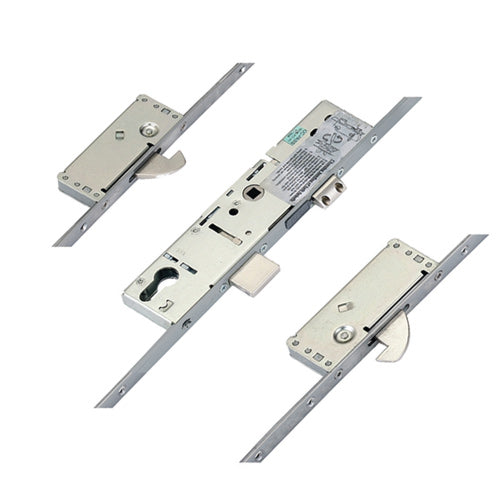

Latch Deadbolt 2 Large Hooks Split Spindle Multipoint Door Lock - Option 3 (top hook to spindle = 680mm)

Product Overview: ERA Deadbolt Multipoint Door Lock

The ERA Deadbolt multipoint door lock is engineered for security and reliability, featuring a robust design with 2 hooks, 1 deadbolt, and 1 latch. This lock is a popular choice in the UK, known for its versatility and ease of identification.

Key Features:

• Versatile Branding: ERA manufactures locks for various door and window companies, often rebranded. Look for the ERA logo on the faceplate, but be aware of other brands like Surelock, Saracen, and more.
• Identifying Characteristics: The holdback snib color can help identify the lock. Typically, it’s grey for deadbolt and hook bolt locks, and blue for Vectis locks, though some brands may vary.
• Split Spindle Mechanism: Most ERA multipoint locks utilize a split spindle mechanism, simplifying replacements by focusing on one locking function. Note that this does not apply to SureFire locks or specific automatic locking models.
• Distinctive Gearbox Design: ERA gearboxes are square with no corner cutouts, measuring 221mm in length. They come in 30mm, 35mm, or 45mm backsets, all maintaining the same dimensions.
• Interchangeable Gearboxes: With the exception of the British Standard Fortress lock and SureFire, ERA gearboxes can be interchanged. Custom orders are available for specific locking needs.
• High Security Hooks: The lock features two hook arrangements: a standard hook for tight spaces and a larger security steel hook for enhanced protection. Both hooks are bi-directional, providing superior security.
• Deadbolt Functionality: The deadbolt, or linear bolt, has an 18mm throw and is designed to pull the door tightly against the frame, ensuring a secure fit.

Operation Instructions:

To lock the door:

1. Lift the handle upwards to engage the locking points.
2. Turn the key to secure the locking points and main deadbolt.

To unlock the door:

1. Turn the key to unlock the system.
2. Push the handle downwards to disengage the locking points and retract the latch.

Compliance and Testing:

• Meets BS EN 1670:2007 Grade 4 Corrosion Resistance (240 hours).
• Endurance tested to 50,000 cycles.
• Designed to comply with PAS24:2012 standards for enhanced security.

This ERA multipoint door lock is an excellent choice for those seeking a reliable and secure locking solution for timber and composite doors.

Product Specification

• Manufacturer: ERA
• Spindle Size: 8mm
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Split 8mm
• Handing: Non handed

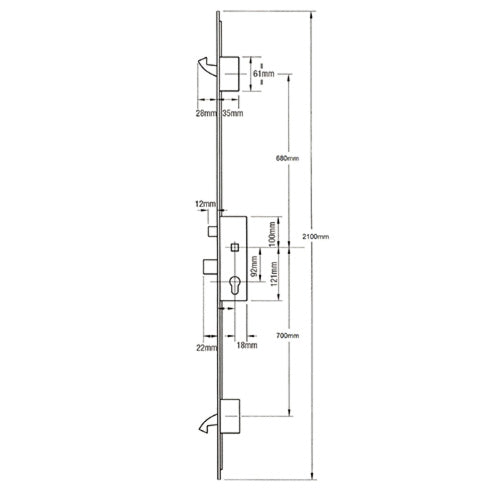

• Distance Between Inner Locking: 1380mm
• Height: 2100mm
• Top Hook to Spindle: 680mm
• Bottom Hook to Spindle: 700mm
• Door Material: UPVC, Aluminium, Timber, Composite

Measuring Guidelines:

To ensure accurate measurements for your ERA Deadbolt multipoint door lock, follow these guidelines:

Backset Measurement:
Measure from the edge of the door to the center of the keyhole. This distance is crucial for selecting the correct backset.

Centres PZ Measurement:
The PZ measurement is the distance from the center of the keyhole to the center of the handle hole. Use a ruler or tape measure for precision.

Faceplate Measurement:
To measure the faceplate, determine its width and length. This will help you select the appropriate faceplate option from the drop-down menu.

By following these measurement instructions, you can ensure a perfect fit for your door lock installation.
