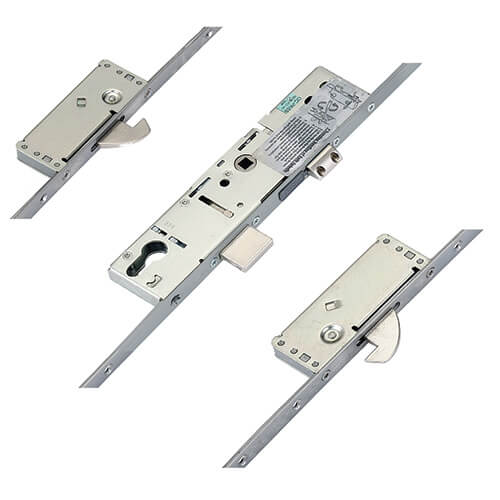

Latch Deadbolt 2 Large Hooks Split Spindle Multipoint Door Lock - Option 2 (top hook to spindle = 730mm) (Copy)

Product Overview: ERA Deadbolt Multipoint Door Lock

The ERA Deadbolt multipoint door lock is engineered for security and reliability, featuring a robust design with 2 hooks, 1 deadbolt, and 1 latch. This lock is a popular choice in the UK, known for its versatility and ease of identification.

Key Features:

• Versatile Branding: ERA manufactures locks for various door and window companies, often rebranded. Look for the ERA logo on the faceplate, but be aware of other brands like Surelock, Saracen, and more.
• Holdback Snib: A distinctive feature to identify ERA locks is the holdback snib color—grey for deadbolt and hook bolt locks, blue for Vectis locks. Note that some brands may have different colors.
• Split Spindle Mechanism: Most ERA multipoint locks utilize a split spindle mechanism, simplifying replacements by focusing on one locking function. Exceptions include SureFire locks and specific automatic locking models.

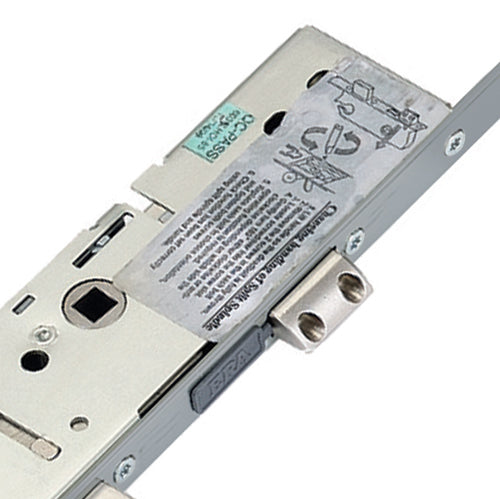

• Distinctive Gearbox Design: The ERA gearbox is square with no corner cutouts, measuring 221mm in length. Available backsets include 30mm, 35mm, or 45mm, with consistent dimensions across all gearboxes.
• Interchangeable Gearboxes: With the exception of the British Standard Fortress lock and SureFire, ERA gearboxes can be interchanged. Custom orders are available for specific locking needs.

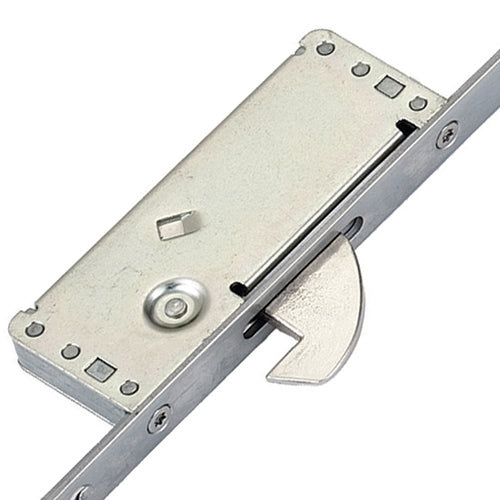

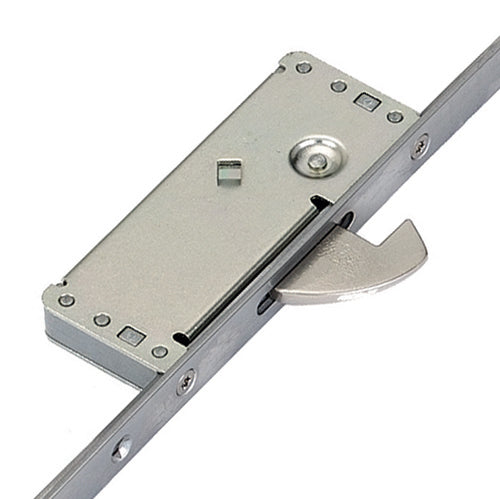

• High Security Hooks: ERA multipoint locks feature two hook types: a standard hook for tight spaces and a larger security steel hook for enhanced protection. Both hooks are bi-directional, providing superior security.

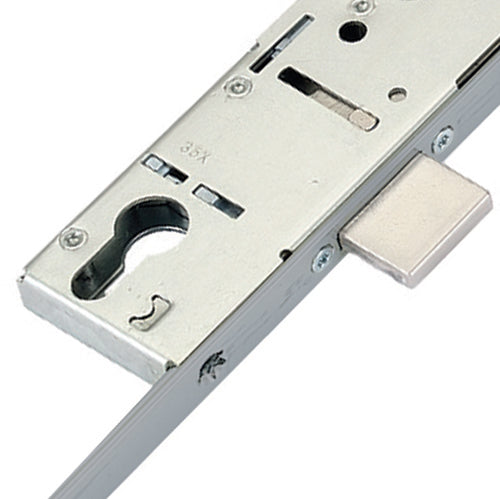

• Deadbolt Functionality: The deadbolt, or linear bolt, has an 18mm throw and is designed to pull the door snugly against the frame, ideal for timber and composite doors.

Operation Instructions:

To lock the door:

1. Lift the handle upwards to engage the locking points.
2. Turn the key to secure the locking points and main deadbolt.

To unlock the door:

1. Turn the key to unlock the system.
2. Push the handle downwards to disengage the locking points and retract the latch.

Compliance and Testing:

• Meets BS EN 1670:2007 Grade 4 Corrosion Resistance (240 hours).
• Endurance tested for 50,000 cycles.
• Designed to comply with PAS24:2012 standards for enhanced security.

This ERA multipoint door lock combines advanced security features with user-friendly operation, making it an excellent choice for safeguarding your property.

Product Specification

• Manufacturer: ERA
• Spindle Size: 8mm
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Split 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1480mm
• Height: 2250mm
• Top Hook to Spindle: 730mm
• Bottom Hook to Spindle: 750mm
• Door Material: UPVC, Aluminium, Timber, Composite

Measuring Guidelines:

To ensure accurate measurements for your ERA Deadbolt multipoint door lock, follow these guidelines:

Backset Measurement:
To measure the backset, take a tape measure and measure the distance from the edge of the door to the center of the lock cylinder. This distance is crucial for ensuring the lock fits properly.

Centres PZ Measurement:
For the PZ measurement, measure from the center of the keyhole to the center of the handle hole. This measurement is essential for aligning the lock with the door handle.

Faceplate Measurement:
To measure the faceplate, measure the width and height of the area where the faceplate will be installed. This ensures a proper fit and aesthetic alignment with the door.

By following these measurement guidelines, you can ensure that your ERA multipoint door lock is installed correctly and functions optimally.
