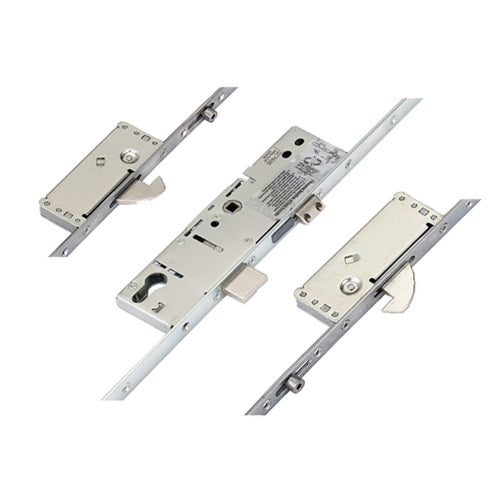

Latch Deadbolt 2 Large Hooks 2 Rollers Split Spindle Multipoint Door Lock - Option 2 (top hook to spindle = 730mm)

Product Overview: ERA Deadbolt Multipoint Door Lock

The ERA Deadbolt multipoint door lock is engineered for security and reliability, featuring a robust design that includes 2 Rollers, 2 Hooks, 1 Deadbolt, and 1 Latch. This lock is a popular choice in the UK, known for its versatility and ease of identification.

Mechanism and Gearbox Details

Most ERA multipoint locks utilize a split spindle mechanism, simplifying replacements by focusing on one locking function. Notably, the gearboxes are distinctive with a square design and no corner cutouts, measuring 221mm in length. They come in backsets of 30mm, 35mm, or 45mm, maintaining consistent dimensions across models.

Locking Arrangements and Security Features

ERA multipoint locks offer two hook locking arrangements: a standard hook for tight spaces and a larger security steel hook for enhanced security. Both hooks are bi-directional, providing superior locking capabilities.

Operation Instructions

To operate the lock:

Locking:

1. Lift the handle to engage the locking points.
2. Turn the key to secure the locking points and main deadbolt.

Unlocking:

1. Turn the key to unlock.
2. Push the handle down to disengage the locking points and retract the latch.

Compliance and Testing

The ERA multipoint door lock meets BS EN 1670:2007 Grade 4 Corrosion Resistance standards, enduring 240 hours of testing. It has also been endurance tested for 50,000 cycles and is designed to comply with PAS24:2012 requirements for enhanced security.

For any custom needs or replacements, contact us to build the lock to order, ensuring your security needs are met with precision.

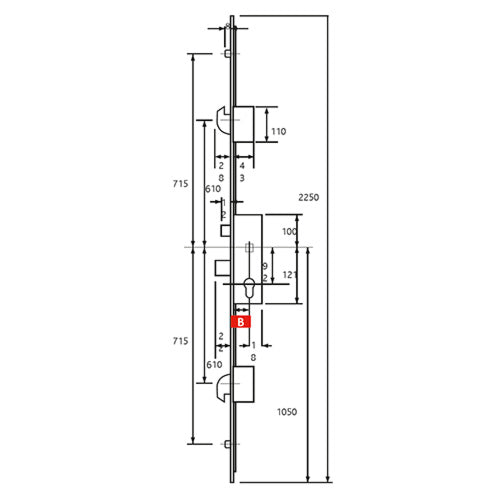

Product Specification

• Manufacturer: ERA
• Spindle Size: 8mm
• Rollers: 2
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Split 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1480mm
• Distance Between Outer Locking: 1690mm
• Height: 2250mm
• Top Hook to Spindle: 730mm
• Bottom Hook to Spindle: 750mm
• Top Roller to Spindle: 835mm
• Bottom Roller to Spindle: 855mm
• Door Material: UPVC, Aluminium
• For precise measurements, follow these guidelines:

Measuring the Backset:
To measure the backset, take a tape measure and measure the distance from the edge of the door to the center of the lock cylinder. This will give you the backset measurement needed for proper fitting.

Measuring the Centres (PZ):
To measure the centres, measure the distance from the center of the lock cylinder to the center of the handle spindle. This is crucial for ensuring that the lock and handle align correctly.

Measuring the Faceplate:
To measure the faceplate, measure the width and height of the existing faceplate on your door. This will help you select the correct size from the drop-down options.

If you have any further questions or need assistance with your order, feel free to reach out!
