Latch Deadbolt 2 Hooks Split Spindle 44mm Flat White Faceplate Multipoint Door Lock

Product Overview: ERA Deadbolt Multipoint Door Lock

The ERA Deadbolt multipoint door lock is engineered for security and reliability, featuring a robust design that includes 2 hooks, 1 deadbolt, and 1 latch. This lock is a popular choice in the UK, known for its versatility and ease of identification.

Key Features:

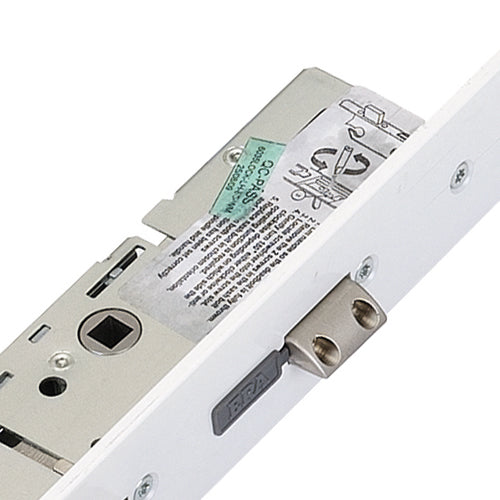

• Versatile Branding: ERA locks are often rebranded by various door and window companies, making it essential to check for the ERA logo on the faceplate. Other brands may include Surelock, Saracen, and more.
• Distinctive Holdback Snib: The holdback snib on the faceplate is a key identifier, typically grey for deadbolt and hook bolt locks, and blue for Vectis locks. Be aware that some brands may have altered the snib color.
• Split Spindle Mechanism: Most latch and deadbolt locks feature a split spindle mechanism, simplifying replacements by focusing on one locking function.
• Gearbox Design: The ERA multipoint door lock gearbox is uniquely square with no corner cutouts, measuring 221mm in length. Available backsets include 30mm, 35mm, or 45mm, with interchangeable gearboxes (excluding certain models).

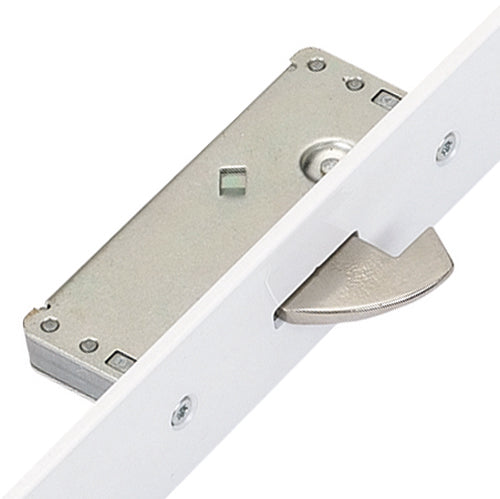

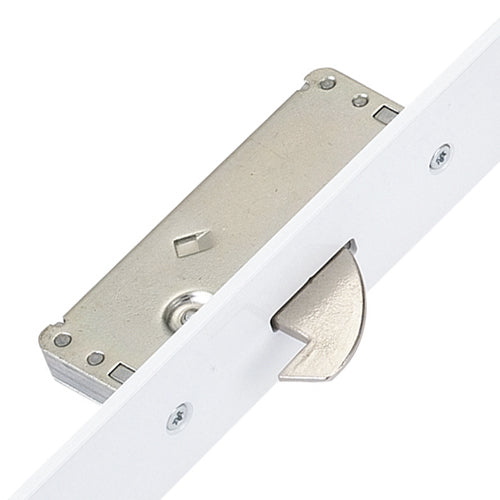

• High Security Options: The lock features two hook arrangements: a standard hook for tight spaces and a larger security steel hook for enhanced protection. Both hooks are bi-directional, providing superior security.

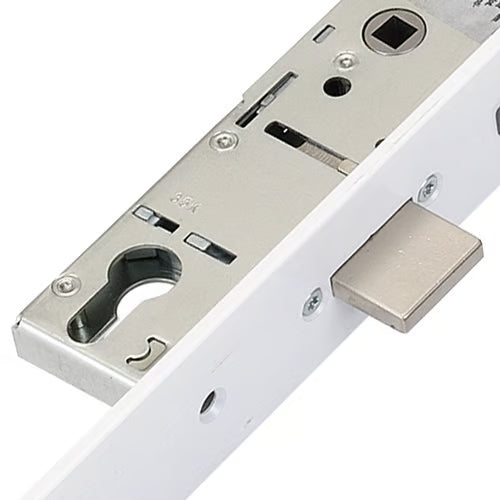

• Deadbolt Functionality: The deadbolt, or linear bolt, has an 18mm throw and is designed to pull the door snugly against the frame, ideal for timber and composite doors.

Operation Instructions:

To lock the door:

1. Lift the handle upwards to engage the locking points.
2. Turn the key to secure the locking points and main deadbolt.

To unlock the door:

1. Turn the key to unlock the system.
2. Push the handle downwards to disengage the locking points and retract the latch.

Compliance and Testing:

• Meets BS EN 1670:2007 Grade 4 Corrosion Resistance (240 hours).
• Endurance tested to 50,000 cycles.
• Designed to comply with PAS24:2012 standards for enhanced security.

This ERA multipoint door lock is an excellent choice for those seeking a reliable and secure locking solution for their doors.

Product Specification

• Manufacturer: ERA
• Spindle Size: 8mm
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Split 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1395mm
• Height: 2090mm
• Top Hook to Spindle: 728mm
• Bottom Hook to Spindle: 667mm
• Door Material: Timber, Composite

Measuring Guidelines:

To ensure accurate measurements for your ERA Deadbolt multipoint door lock, follow these guidelines:

Backset Measurement:
Measure from the edge of the door to the center of the keyhole. This distance is crucial for proper lock alignment.

Centres Measurement:
The PZ measurement is taken from the center of the keyhole to the center of the handle hole. This ensures that both components align correctly for smooth operation.

Faceplate Measurement:
To measure the faceplate, determine its width and height. This will help you select the correct faceplate from the drop-down options.

Operation Selection:
Choose the operation type based on your door's requirements. This may include options like key operation, thumb turn, or electronic access.

By following these measuring guidelines, you can ensure that your ERA multipoint door lock fits perfectly and operates efficiently.
