Latch Deadbolt 2 Hooks Lift Lever or Double Spindle Multipoint Door Lock

Product Overview: Lockmaster Standard Multipoint Door Lock

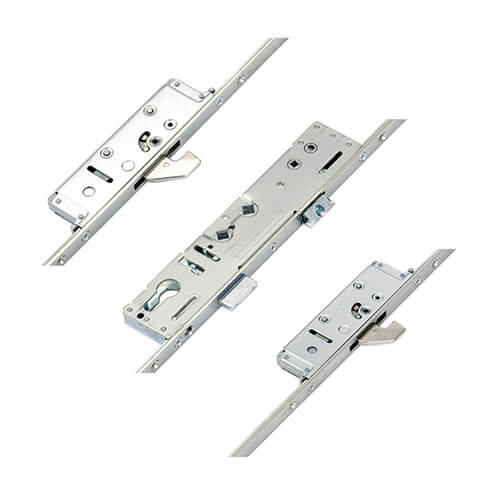

The Lockmaster Standard multipoint door lock is designed for enhanced security and ease of use, featuring a robust configuration of 2 hooks, 1 deadbolt, and 1 latch. This lock is part of the Lockmaster range, known for its versatility and adaptability to various door requirements.

Key Features:

• Versatile Locking Points: The Lockmaster range includes multiple variants, allowing for customization to fit existing door setups. We stock the most popular versions and can source specific models as needed.
• Easy Identification: Once removed from the door, Lockmaster locks can be easily identified by their unique features, such as the upwards throwing locks and a large gearbox measuring 228mm.
• Best-Selling Lock: Lockmaster locks are the UK's top-selling multipoint door locks, now part of the Yale family, which includes brands like Millenco and Millenco Mantis.
• Adaptability: Be aware that older versions may have different locking point locations, potentially requiring adjustments to the door routing.

Specifications:

• Gearbox Options: Available in 35mm or 45mm backsets, with double or single spindle mechanisms. Bifold door versions come in 25mm and 28mm backsets.
• Locking Mechanism: Double spindle locks feature unsprung designs, ideal for use with sprung door handles, while single spindles are sprung and limited to lift lever functions.

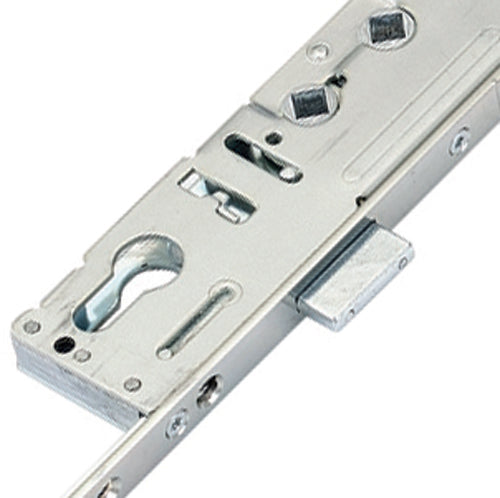

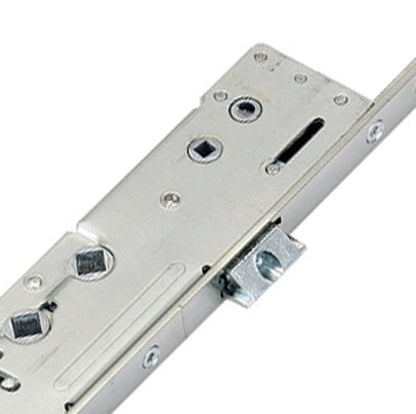

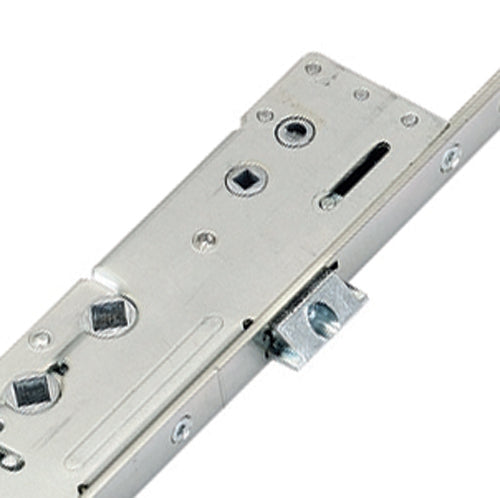

• Dimensions: Gearboxes measure 228mm high plus backset +15mm. The latch and deadbolt both measure 30mm high, with a 65mm gap between them.
• Screw Hole Measurements: Gearboxes are fitted with faceplates that have three screw holes, with the top to middle and middle to bottom holes both measuring 109mm apart.
• Corrosion Resistance: Tested to BS EN 1670:2007 Grade 4 (240hrs. NSST), ensuring durability and reliability.

Operation Instructions:

To Lock the Door:

1. Close the door to automatically engage the latch.
2. Lift the handle to engage the locking points.
3. Turn the key to secure the system.

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle down to disengage the locking points.
3. A quarter turn of the key will retract the latch.

This Lockmaster Standard multipoint door lock combines security, functionality, and ease of use, making it an excellent choice for any door.

Product Specification

• Manufacturer: Lockmaster
• Spindle Size: 8mm

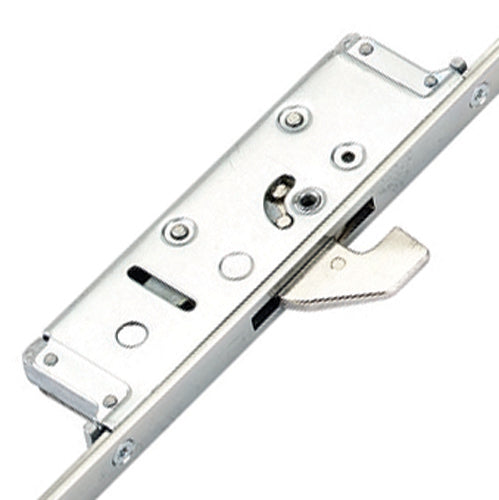

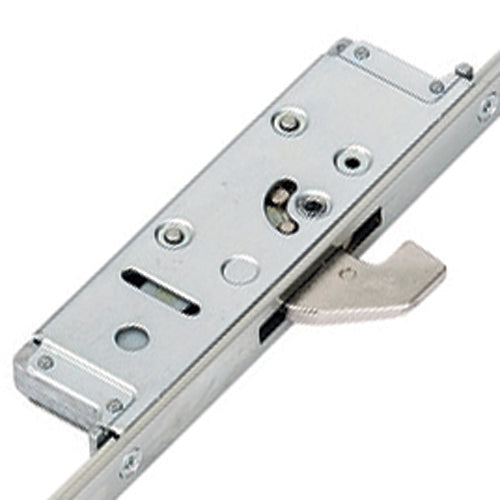

• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Double 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1490mm
• Height: 2200mm
• Top Hook to Spindle: 720mm
• Bottom Hook to Spindle: 770mm
• Door Material: UPVC, Aluminium, Timber, Composite

Measuring Guidelines

How to Measure the Backset: To measure the backset, take a tape measure and measure the distance from the edge of the door to the center of the lock cylinder. This measurement is crucial for ensuring that the lock fits properly within the door frame.

How to Measure the Centres (PZ): To measure the centres, measure the distance between the center of the keyhole and the center of the handle hole. This is typically done by placing the tape measure vertically along the door and marking the points where the holes are located.

How to Measure the Faceplate: To measure the faceplate, remove the existing lock and measure the width and height of the faceplate. Ensure to note the thickness as well, as this will affect the fit of the new lock.

What is the Operation: The operation refers to how the lock engages and disengages. This can vary based on the type of lock mechanism used, such as key-operated, thumb turn, or electronic access. Select the appropriate option from the drop-down based on your specific needs.
