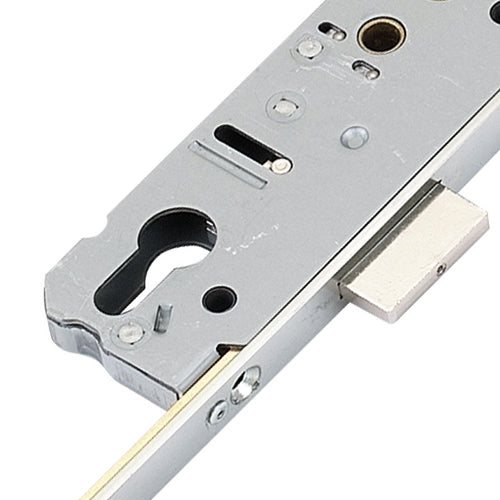

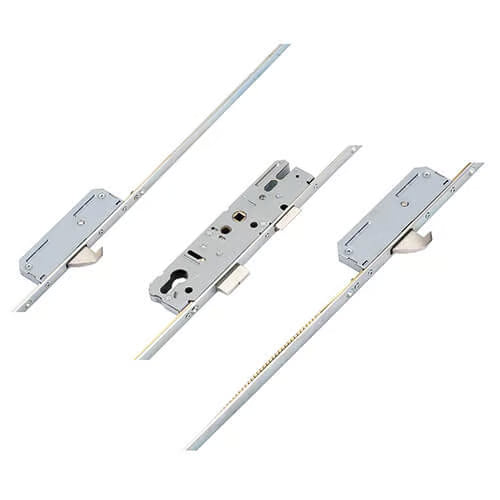

Latch Deadbolt 2 Hooks Lift Lever Multipoint Door Lock (top hook to spindle = 375mm)

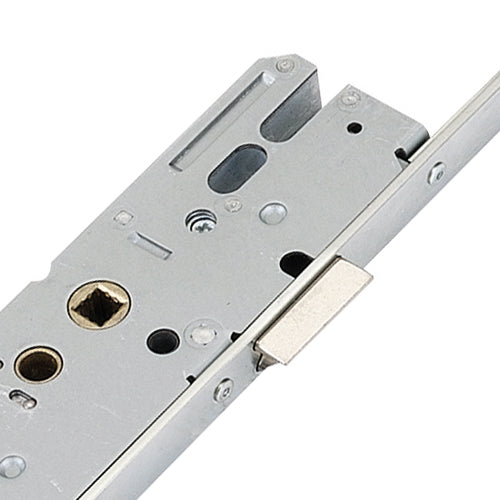

Product Overview: KFV Lever Multipoint Door Lock

The KFV Lever multipoint door lock is designed for enhanced security and functionality, featuring a robust configuration of 2 hooks, 1 deadbolt, and 1 latch. This lock is ideal for those seeking a reliable solution for their doors.

Key Features:

• Enhanced Security: The KFV lock utilizes rivets to securely attach locking points to the strip, providing an added layer of security. Note that shootbolts are sold separately.
• Identification Made Easy: While early models may lack a visible stamp on the faceplate, recent versions proudly display the KFV logo. To accurately identify your lock, it’s advisable to remove it from the door. Early models typically feature a yellow passivated faceplate and dark grey gearboxes, while newer models showcase shiny silver faceplates and light grey gearboxes.
• Modular Design: KFV locks have evolved to be modular, allowing for easier replacements without needing to change routing positions. However, when replacing older locks, adjustments to the keeps or repositioning of hook boxes may be necessary.
• Specifications:
  • Gearboxes are single spindle with 92mm centers.
  • Overall height: 210mm
  • Bolt throw: 21mm
  • Distance from latch to deadbolt: 56mm
  • Distance from spindle to top of case: 85mm
• Connection Types: Older KFV gearboxes are attached to the faceplate with 1/8" rivets, while newer models use screws for a more secure fit.
• Operation Variants: KFV locks are available in both lift lever and key wind variants. It’s important to note that these two types are not interchangeable.

Locking Mechanism:

To Lock the Door:

1. Lift the handle upwards to engage the locking points.
2. Secure the locking points and main deadbolt (if applicable) by turning the key.

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle downwards to disengage the locking points and retract the latch.

Hook Locking Arrangements:

KFV multipoint locks feature two types of hook arrangements:

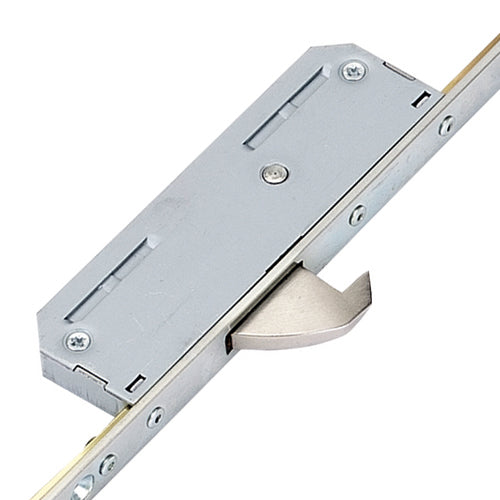

1. Standard Hook: Typically throws upwards, regardless of its position on the door.
2. Hook with Anti-Lift Pin: Offers higher security by preventing lift attacks. This arrangement requires special keeps due to the proximity of the pin and hook bolt.

Product Specification

• Manufacturer: KFV
• Spindle Size: 8mm
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Single 8mm
• Handing: Non handed
• Distance Between Inner Locking: 870mm
• Height: 1630mm
• Top Hook to Spindle: 375mm
• Bottom Hook to Spindle: 495mm
• Door Material: UPVC, Aluminium, Timber, Composite

For accurate measurements, follow these guidelines:

1. Backset Measurement: Measure from the edge of the door to the center of the keyhole.
2. Centres Measurement: Measure from the center of the keyhole to the center of the handle hole.
3. Faceplate Measurement: Measure the width and length of the faceplate to ensure compatibility with your door.
4. Operation Type: Choose the operation type based on your preference for handle or key operation.

These specifications ensure that the KFV Lever multipoint door lock fits perfectly and functions optimally for your security needs.
