Latch Deadbolt 2 Hooks Lift Lever Multipoint Door Lock

Product Overview: GU Europa Multipoint Door Lock

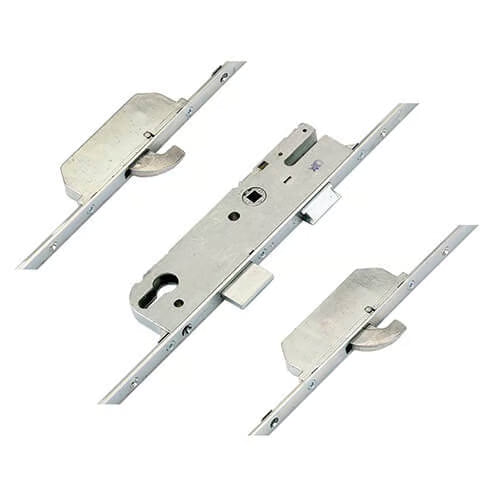

The GU Europa multipoint door lock is designed for enhanced security, featuring a robust configuration of 2 hooks, 1 deadbolt, and 1 latch. This lock is part of the GU range known as "SECURY," with options for both lift lever and split spindle operation.

Key Features:

• Versatile Operation: Available in lift lever or split spindle nightlatch configurations.
• Identifiable Design: GU locks are easily recognized by the logo stamped on the faceplate. Older models may differ in style, so it's essential to check for compatibility when replacing.
• Modern Upgrades: GU has transitioned from older lock styles to new designs, improving functionality and security. If you have an old lock, you may be able to repair it with a replacement gearbox, but for full replacements, adjustments to the door frame may be necessary.
• Locking Mechanism: The lock features multiple locking points, ensuring a secure fit. Early models had thinner deadbolts, so when replacing, ensure that the new deadbolts fit properly with existing keeps.
• Durable Construction: The Europa range includes hooks, deadbolts, and rollers, with options for inbound or outbound roller configurations. Always verify product measurements to ensure compatibility.

Installation and Measurement:

• Gearbox Dimensions: New style GU gearboxes measure 191mm high (excluding fixing lugs) and vary in width based on backset.
• Screw Placement: Gearboxes are secured with three screws, with specific measurements for installation accuracy.

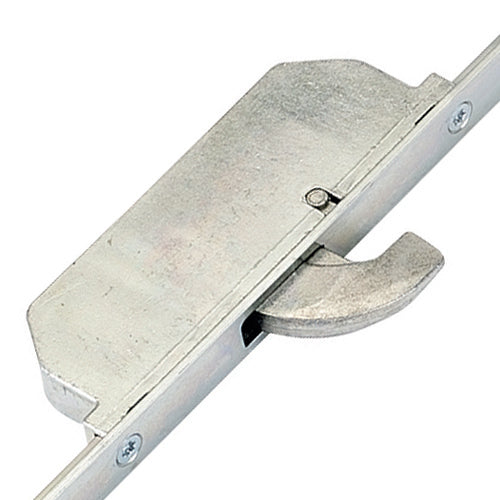

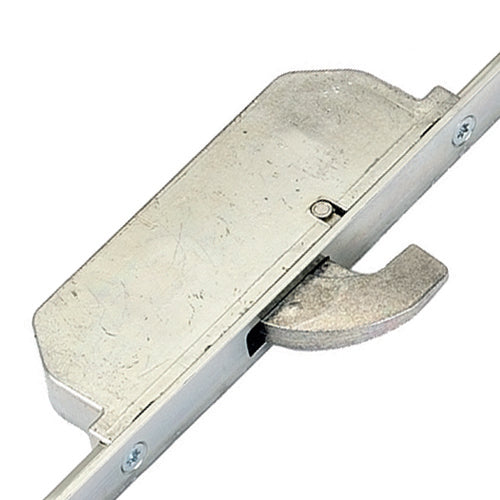

• Hook Types: GU locks feature two hook types: the slim "flip hook" and the traditional "rhino hook," both designed for optimal security.

Operating Instructions:

• To lock the door:
  • Lift the handle to engage the locking points.
  • Turn the key to secure the deadbolt and locking points.
• To unlock the door:
  • Turn the key to disengage the lock.
  • Push the handle down to retract the latch and unlock the system.

Product Specification

• Manufacturer: GU
• Spindle Size: 8mm
• Hooks: 2
• Deadbolts: 1
• Latch: 1

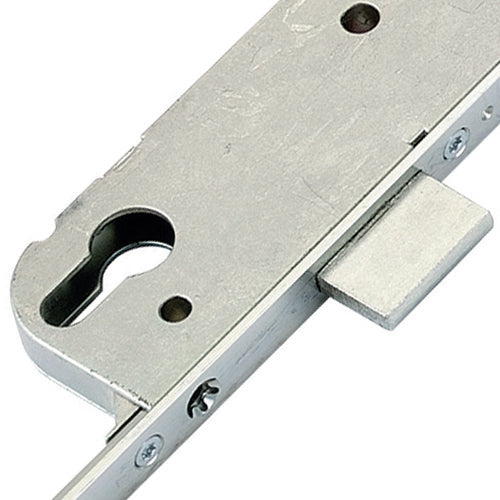

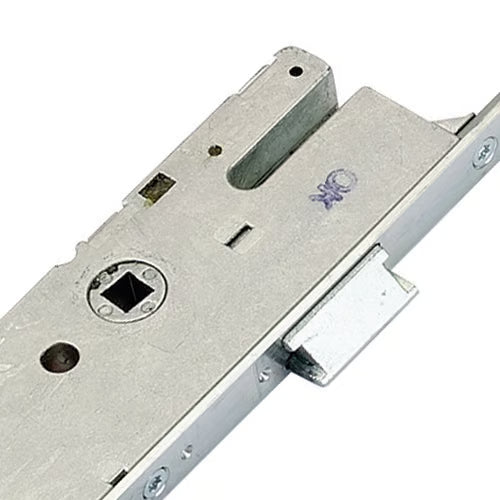

• Main Gearbox: Latch & deadbolt
• Spindle: Single 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1228mm
• Height: 2200mm
• Top Hook to Spindle: 568mm
• Bottom Hook to Spindle: 660mm
• Door Material: UPVC, Aluminium, Timber, Composite

Measuring Guidelines:

To ensure accurate measurements for your GU Europa multipoint door lock, follow these guidelines:

Backset Measurement: To measure the backset, take a tape measure and measure the distance from the edge of the door to the center of the lock cylinder. This is crucial for ensuring the lock fits properly.

Centres PZ Measurement: For the PZ measurement, measure from the center of the keyhole to the center of the handle hole. This measurement is essential for compatibility with your door hardware.

Faceplate Measurement: To measure the faceplate, remove the existing lock and measure the width and height of the faceplate. This ensures that the new lock will fit seamlessly into the door.

By following these measurement guidelines, you can ensure that your GU Europa multipoint door lock will be installed correctly and function optimally.
