Latch Deadbolt 2 Hooks Interlocking French Door Lock Split Spindle Multipoint Door Lock (top hook to spindle = 380mm)

Product Overview: ERA Deadbolt Multipoint Door Lock

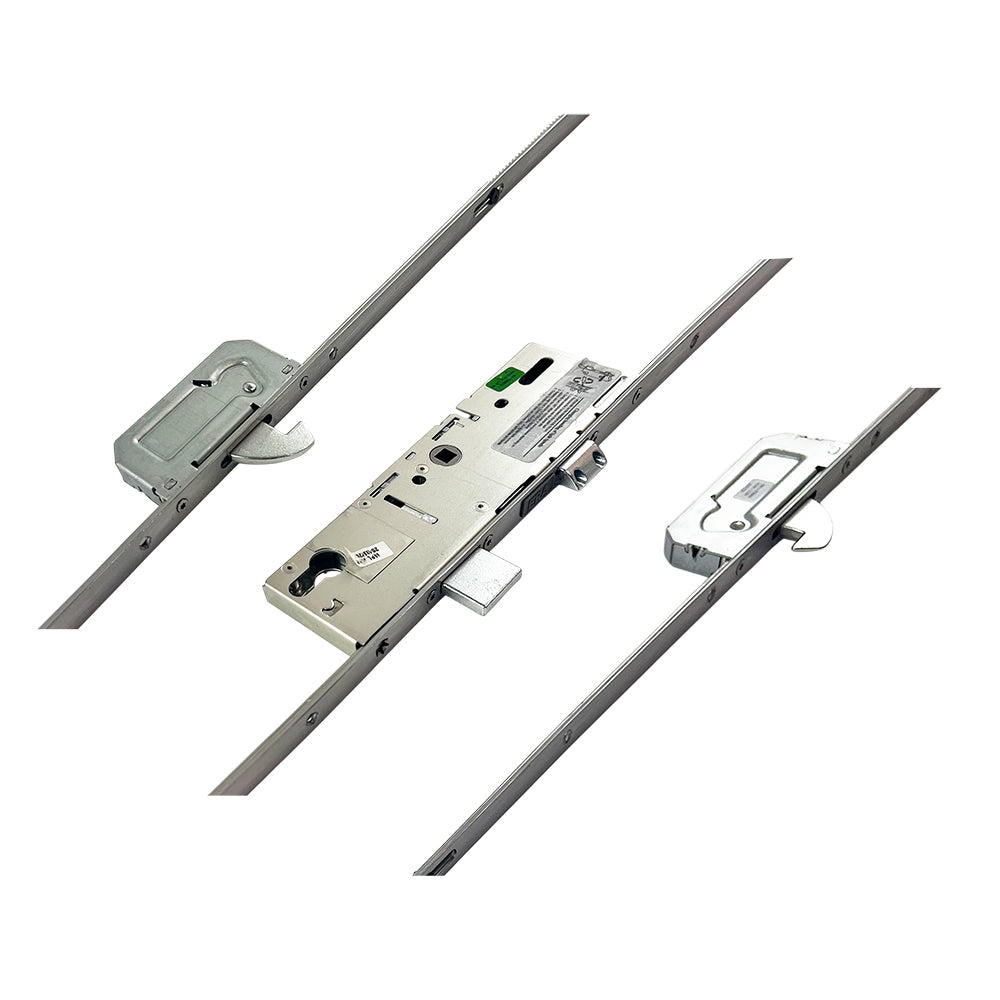

The ERA Deadbolt multipoint door lock is engineered for security and reliability, featuring a robust design with 2 hooks, 1 deadbolt, and 1 latch. This lock is a popular choice in the UK, known for its versatility and ease of identification.

Key Features:

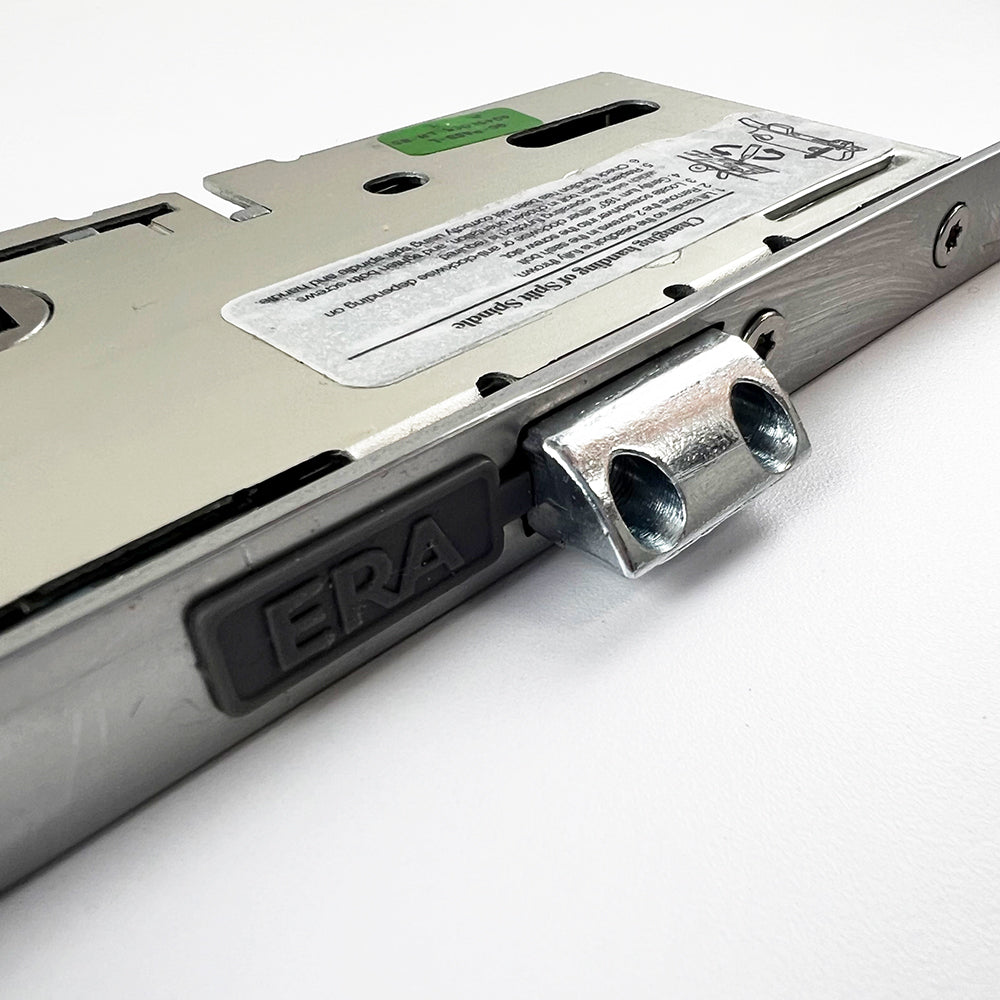

• Versatile Branding: ERA manufactures locks for various door and window companies, often rebranded. Look for the ERA logo on the faceplate, but be aware of alternative brands like Surelock, Saracen, and others.
• Holdback Snib: A distinctive feature to identify ERA locks is the holdback snib, typically grey for deadbolt and hook bolt locks, and blue for Vectis locks. Note that some brands may have different colors.
• Split Spindle Mechanism: Most ERA multipoint locks utilize a split spindle mechanism, simplifying replacements by focusing on one locking function. Exceptions include SureFire locks and specific automatic locking models.

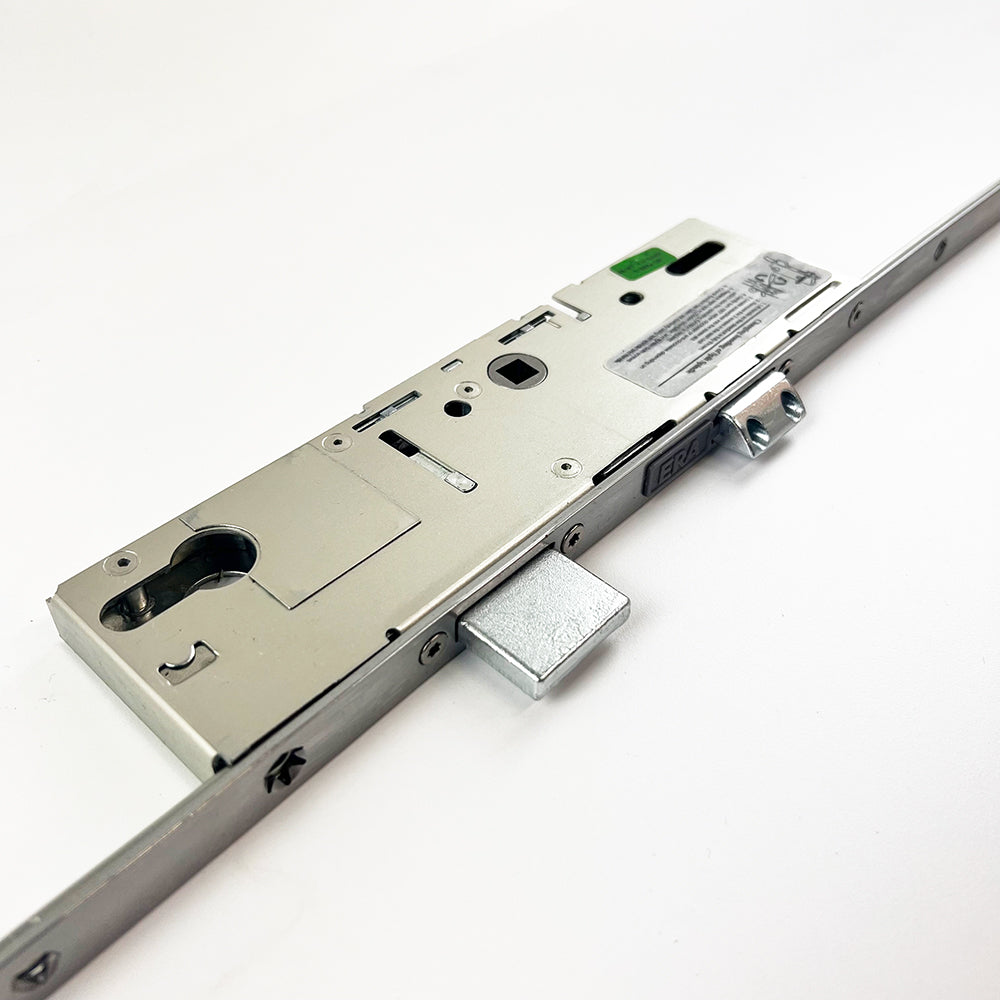

• Distinctive Gearbox Design: The ERA gearbox is square with no corner cutouts, measuring 221mm in length. Available backsets include 30mm, 35mm, or 45mm, with consistent dimensions across all gearboxes.
• Interchangeable Gearboxes: With the exception of certain models, ERA gearboxes can be interchanged, allowing for customization based on client needs.

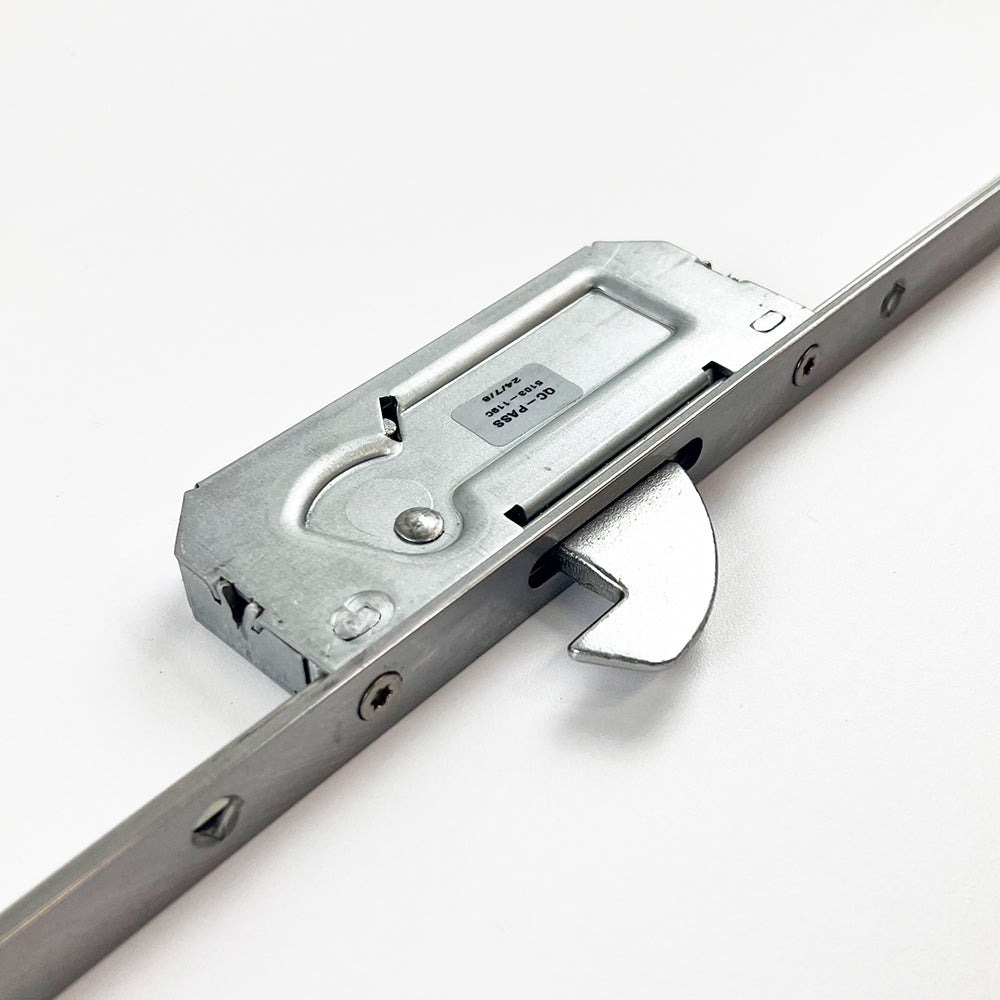

• High Security Hooks: ERA multipoint locks feature two hook arrangements: a standard hook for tight spaces and a larger security steel hook for enhanced protection. Both hooks are bi-directional, providing superior security.
• Deadbolt Specifications: The deadbolt, or linear bolt, has an 18mm throw and is designed to pull the door tightly against the frame, commonly used in timber and composite doors.

Operation Instructions:

To lock the door:

1. Lift the handle upwards to engage the locking points.
2. Turn the key to secure the locking points and main deadbolt.

To unlock the door:

1. Turn the key to unlock the system.
2. Push the handle downwards to disengage the locking points and retract the latch.

Compliance and Testing:

• Meets BS EN 1670:2007 Grade 4 Corrosion Resistance (240 hours).
• Endurance tested for 50,000 cycles.
• Designed to comply with PAS24:2012 standards for enhanced security.

Product Specification

• Manufacturer: ERA
• Spindle Size: 8mm
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Split 8mm
• Handing: Non handed
• Distance Between Inner Locking: 875mm
• Height: 1950mm
• Top Hook to Spindle: 380mm
• Bottom Hook to Spindle: 495mm
• Door Material: UPVC, Aluminium, Timber, Composite

Measuring Guidelines:

To ensure accurate measurements for your ERA Deadbolt multipoint door lock, follow these guidelines:

Backset Measurement:
Measure from the edge of the door to the center of the keyhole. This distance is crucial for selecting the correct backset.

Centres PZ Measurement:
The PZ measurement is the distance from the center of the keyhole to the center of the handle hole. Use a ruler or tape measure for precision.

Faceplate Measurement:
To measure the faceplate, determine its width and length by measuring the visible part of the lock when installed on the door.

Operation Selection:
Choose the operation type based on how you intend to use the lock. Options may include manual or automatic locking mechanisms.
