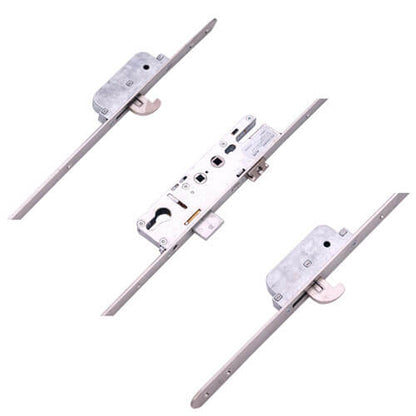

Latch Deadbolt 2 Hooks Double Spindle Multipoint Door Lock

Product Overview: Elite Standard Multipoint Door Lock

The Elite Standard multipoint door lock is designed for enhanced security and durability, featuring a robust configuration of 2 hooks, 1 deadbolt, and 1 latch. This lock is ideal for various applications, ensuring peace of mind for homeowners and businesses alike.

Key Features:

• European Manufacturing: Crafted in Europe, the Elite lock boasts a "Silbear" coating that provides exceptional protection against corrosion, withstanding up to 480 hours of salt spray testing.

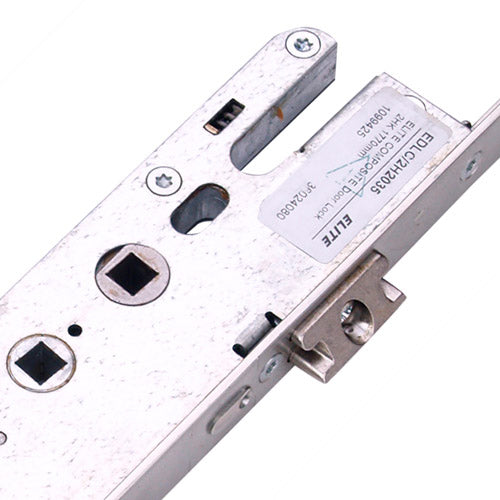

• Identification: Look for the Elite logo stamped on the faceplate to confirm authenticity. The gearbox includes a slot and a small hole for bolt-through handles, ensuring compatibility with various door designs.
• Legacy and Compatibility: Originally manufactured by Roto-Frank, these locks maintain the same specifications as the previous MVD range or "Roto mark 2" locks. While gearboxes cannot be interchanged with original locks, a complete lock swap is straightforward.
• Versatile Options: Available in standard and compact versions, the Elite locks cater to shorter doors while maintaining a consistent handle height of 950mm and an overall length of 1810mm.
• Gearbox Specifications: Choose from a 35mm single spindle lock or 35mm/45mm double spindle options. Gearboxes measure 200mm high with a backset that requires an additional 2mm for the faceplate.

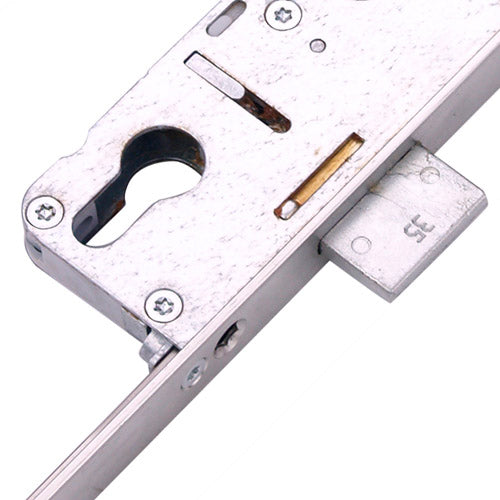

• Locking Mechanism: The deadbolt projects 20mm and measures 32mm high, while the latch projects 10mm and is 30mm high. The distance between the latch and deadbolt is 63mm, with centers positioned at 62mm and 92mm.

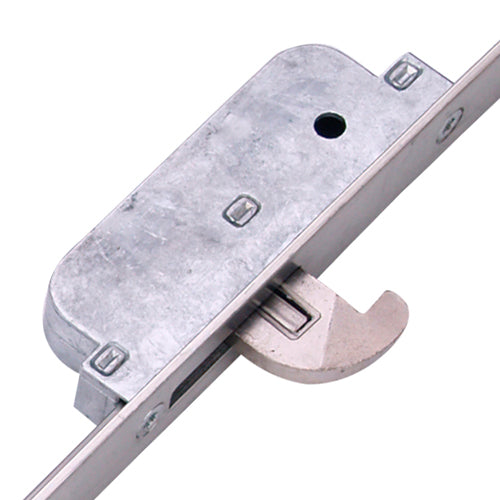

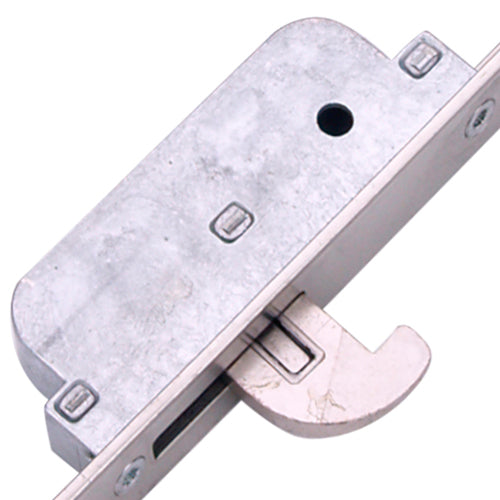

• Hook Functionality: Elite hooks can operate in opposite directions or upwards, depending on the model, all featuring the protective Silbear coating.

Operation Instructions:

To Lock the Door:

1. Close the door to automatically engage the latch.
2. Lift the handle to engage the locking points.
3. Turn the key to secure the system.

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle down to disengage the locking points.
3. A quarter turn of the key will retract the latch.

Certification: This lock has been rigorously tested to EN1675 Grade 5 standards, ensuring reliability and security for your entryways.

Product Specification

• Manufacturer: Elite
• Spindle Size: 8mm
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Double 8mm
• Handing: Non handed

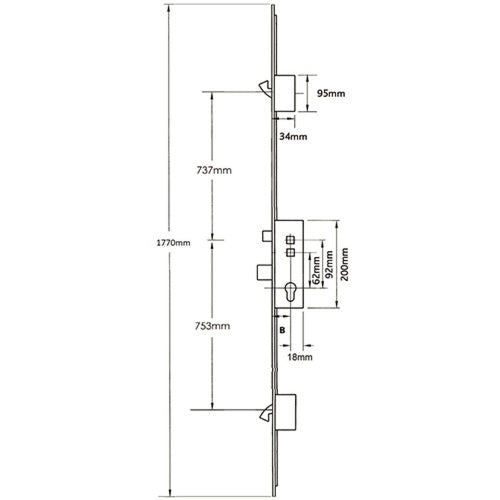

• Distance Between Inner Locking: 1490mm
• Height: 1770mm
• Top Hook to Spindle: 737mm
• Bottom Hook to Spindle: 753mm
• Door Material: Timber, Composite

Measuring Instructions:

To ensure accurate measurements for your Elite Standard multipoint door lock, follow these guidelines:

• Backset Measurement:
  • Measure from the edge of the door to the center of the keyhole.
  • This distance is your backset measurement.
• Centres Measurement:
  • Measure the distance between the centers of the keyhole and the handle.
  • Ensure you measure from the center of one to the center of the other for accuracy.
• Faceplate Measurement:
  • Measure the width and height of the existing faceplate on your door.
  • This will help you select the correct faceplate from the drop-down options.
• Operation:
  • The operation of the lock refers to how the locking mechanism engages and disengages.
  • Select the appropriate option from the drop-down based on your door's requirements.

By following these steps, you can ensure that your Elite Standard multipoint door lock is installed correctly and functions optimally.
