Latch Deadbolt 2 Hooks 4 Rollers Split Spindle Multipoint Door Lock - Option 1 (top hook to spindle = 610mm)

Product Overview: ERA Deadbolt Multipoint Door Lock

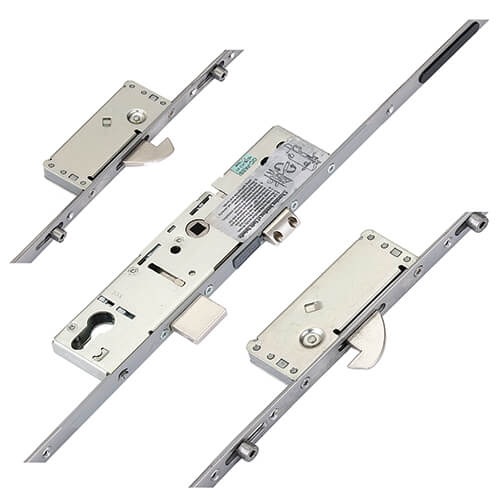

The ERA Deadbolt multipoint door lock is engineered for security and reliability, featuring a robust design that includes 4 rollers, 2 hooks, 1 deadbolt, and 1 latch. This lock is a popular choice in the UK market, known for its versatility and ease of identification.

Identification Tips

Identifying an ERA multipoint door lock can be straightforward, but be cautious of rebranded versions. Many door and window companies utilize ERA locks, often stamping their faceplates with various brand logos, including Surelock, Saracen, and others.

A key feature to look for is the holdback snib on the faceplate, typically grey for deadbolt and hook bolt locks, and blue for Vectis locks. However, some brands may have altered the snib color to black or green.

Mechanism and Gearbox Details

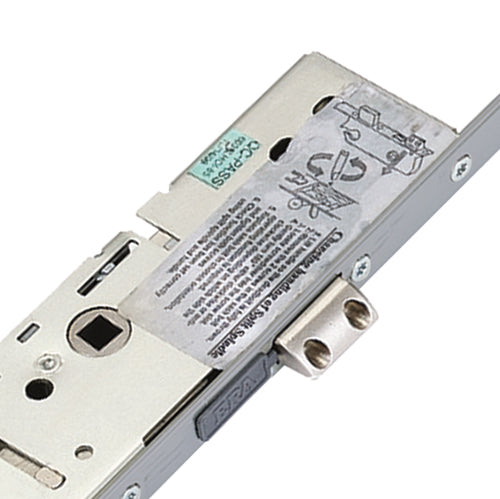

Most ERA multipoint locks utilize a split spindle mechanism, simplifying replacements by focusing on a single locking function. Notably, the gearboxes have a distinctive square design without corner cutouts, measuring 221mm in length. They are available in backsets of 30mm, 35mm, or 45mm, with consistent dimensions across all models.

The gearboxes can accommodate various locking mechanisms, including standard euro cut outs and the British Standard Fortress invincible gearbox, which features hardened drill plates for enhanced security.

Locking Arrangements

ERA multipoint locks offer two hook locking arrangements:

1. Standard Hook: Compact design ideal for tight routing during replacements.
2. Security Steel Hook: Larger hook case requiring minor door modifications for installation.

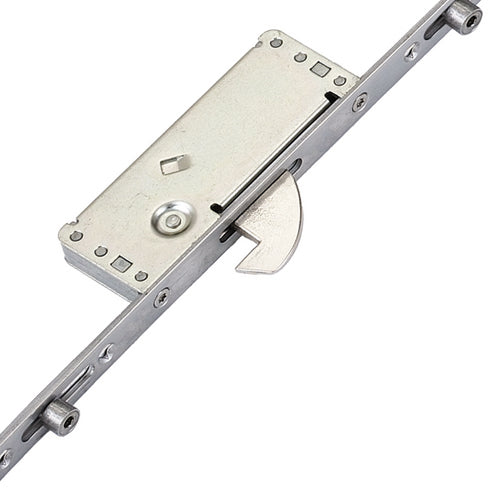

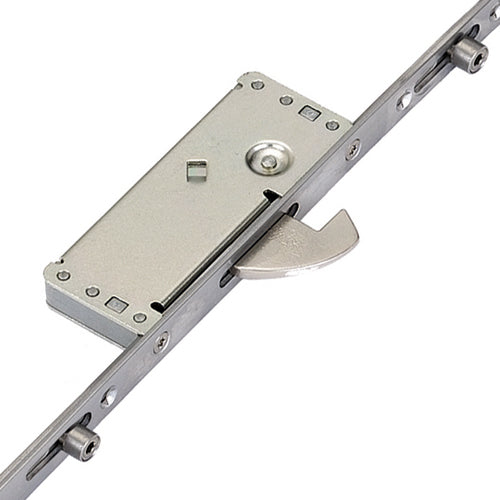

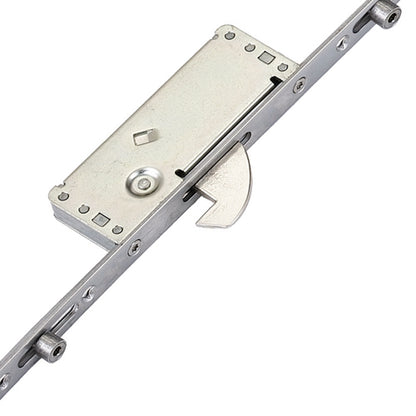

Both hooks are bi-directional, enhancing security by throwing the top hook upwards and the bottom hook downwards.

Deadbolt and Roller Functionality

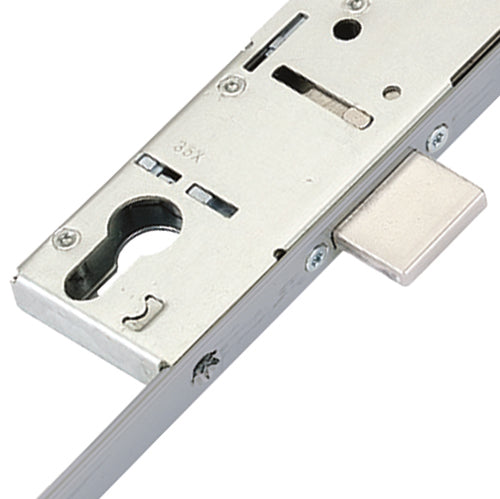

The deadbolt, referred to as a linear bolt by ERA, features an 18mm throw and is designed to pull the door tightly against the frame. Rollers serve to compress the door against the frame, aiding in weather sealing and preventing warping, although they do not significantly contribute to security.

Operation Instructions

To operate the lock:

• Locking: Lift the handle to engage the locking points, then turn the key to secure the deadbolt.
• Unlocking: Turn the key to unlock, then push the handle down to disengage the locking points.

Compliance and Testing

The ERA multipoint door lock meets BS EN 1670:2007 Grade 4 Corrosion Resistance standards, enduring 240 hours of testing. It has also been endurance tested for 50,000 cycles and is designed to comply with PAS24:2012 requirements for enhanced security.

This lock is an excellent choice for those seeking a reliable and secure multipoint locking solution for their doors.

Product Specification

• Manufacturer: ERA
• Spindle Size: 8mm
• Rollers: 4
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Split 8mm
• Handing: Non handed
• Distance Between Inner Locking: 699mm
• Distance Between Outer Locking: 1430mm
• Height: 2250mm
• Top Hook to Spindle: 610mm
• Bottom Hook to Spindle: 610mm
• Top Roller to Spindle: 715mm
• Bottom Roller to Spindle: 715mm
• Door Material: UPVC, Aluminium

Measuring Guidelines

How to Measure the Backset:
To measure the backset, take a ruler and measure the distance from the edge of the door to the center of the lock cylinder. This measurement is crucial for ensuring that the lock fits properly within the door frame.

How to Measure the Centres (PZ):
The PZ measurement is the distance from the center of the keyhole to the center of the handle hole. Use a tape measure to find this distance accurately, as it ensures that the lock and handle align correctly.

How to Measure the Faceplate:
To measure the faceplate, remove the existing lock and measure the length and width of the faceplate. This will help you select the correct faceplate from the drop-down options available.

Operation:
The operation of the lock can vary based on the specific model. Ensure to select the appropriate operation type from the drop-down menu to match your locking mechanism.

These specifications and measuring guidelines will assist you in selecting the right ERA multipoint door lock for your needs, ensuring a perfect fit and optimal security.
