Latch Deadbolt 2 Hooks 4 Rollers Double Spindle Multipoint Door Lock - Shootbolt Compatible

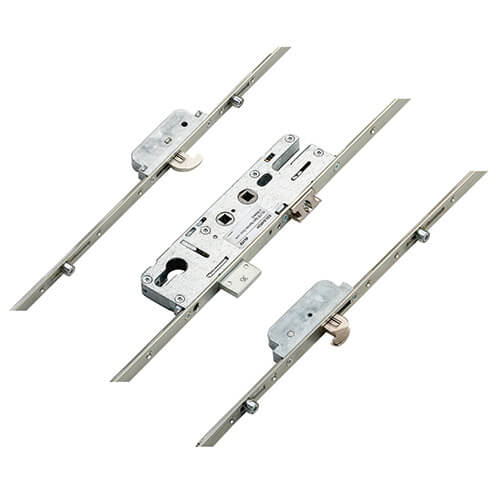

Product Overview: Elite Standard Multipoint Door Lock

The Elite Standard multipoint door lock is engineered for security and durability, featuring a robust design with 4 rollers, 2 hooks, 1 deadbolt, and 1 latch. This lock serves as a direct replacement for select older Roto locks, making it a versatile choice for various applications.

Key Features:

• One-Piece Keep: Simplifies the replacement of hard-to-find or discontinued locks.
• European Manufacturing: Crafted with precision and quality, featuring a "Silbear" coating that provides 480 hours of salt spray protection, ensuring longevity and resistance to corrosion.

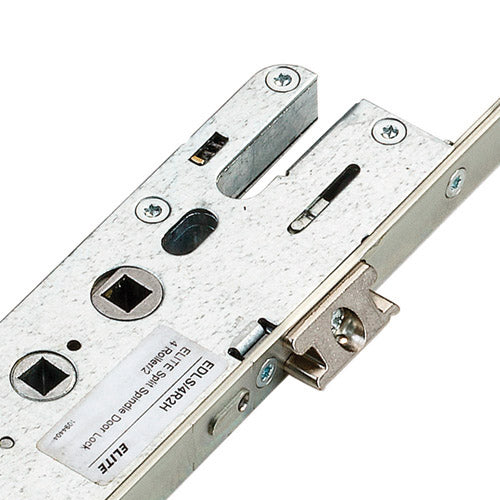

• Identifiable Design: Look for the Elite logo stamped on the faceplate. The gearbox includes a slot and a small hole for bolt-through handles, enhancing compatibility and functionality.
• Legacy Compatibility: These locks are manufactured using the same tooling as the original Roto-Frank locks, ensuring a seamless transition for users familiar with the MVD range or "Roto mark 2" locks.
• Versatile Options: Available in standard and compact versions for shorter doors, maintaining a consistent handle height of 950mm while offering a shorter overall length of 1810mm.

Specifications:

• Gearbox Dimensions: 200mm high x backset + 19mm. Remember to account for 2mm for the faceplate when measuring the backset.
• Deadbolt and Latch Measurements:

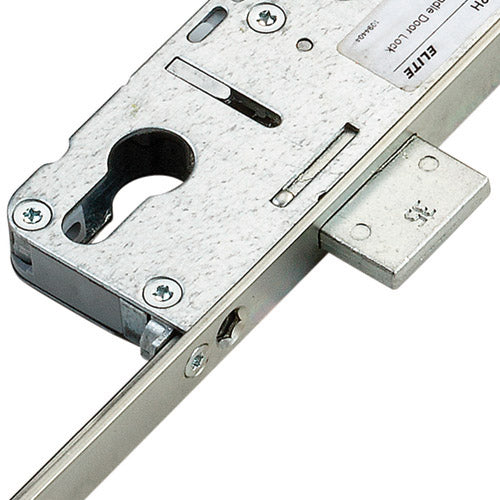

  • Deadbolt: Projects 20mm, 32mm high.
  • Latch: 30mm high, projects 10mm.
  • Distance between latch and deadbolt: 63mm.
• Centre Positions: 62mm and 92mm, with the top spindle positioned 122mm from the bottom of the case.

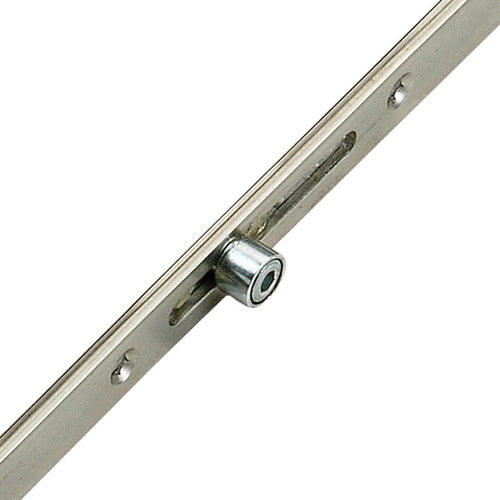

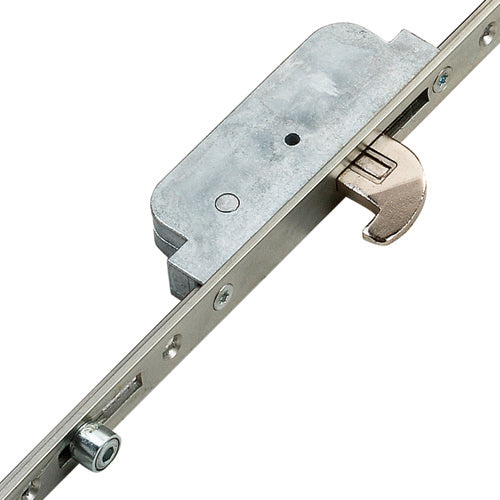

• Adjustable Rollers: Rollers can be adjusted by +/- 1.2mm for optimal weather sealing, ensuring a tight fit against the frame to prevent dust and water ingress.

Operation Instructions:

To Lock the Door:

1. Close the door to automatically engage the latch.
2. Lift the handle to engage the locking points.
3. Turn the key to secure the system.

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle down to disengage the locking points.
3. A quarter turn of the key will retract the latch.

Additional Information:

• Salt Spray Testing: The lock has been rigorously tested to EN1675 Grade 5 standards, ensuring exceptional performance in harsh environments.
• Associated Products: We offer a range of compatible products, including keeps, spindles, handles, and accessories for the Elite Standard multipoint door locks.

Latch Reversal Instructions:

To reverse the latch, simply undo the screw, remove the latch, reverse it, reinsert, and replace the screw for easy customization.

This multipoint door lock combines security, ease of use, and adaptability, making it an excellent choice for your door locking needs.

Product Specification

• Manufacturer: Elite
• Spindle Size: 8mm
• Rollers: 4
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Double 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1190mm
• Distance Between Outer Locking: 1670mm
• Height: 2200mm
• Top Hook to Spindle: 760mm
• Bottom Hook to Spindle: 730mm
• Top Roller to Spindle: 860mm
• Bottom Roller to Spindle: 810mm
• Door Material: UPVC, Aluminium

This comprehensive specification ensures that you have all the necessary details for selecting and installing the Elite Standard multipoint door lock, providing security and peace of mind for your property.
