Latch Deadbolt 2 Hooks 24mm U-Rail Faceplate Multipoint Door Lock - Option 2 (top hook to spindle = 590mm)

Product Overview: Winkhaus Trulock Multipoint Door Lock

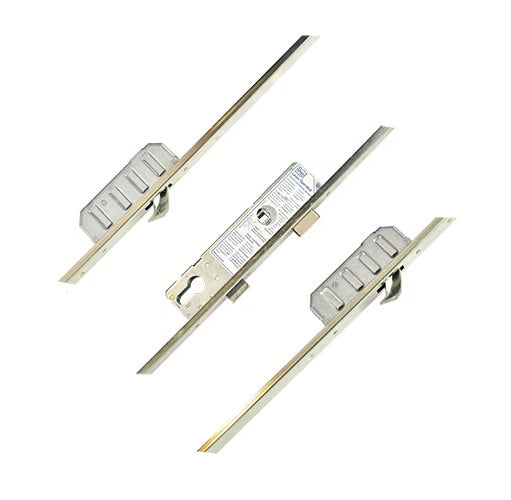

The Winkhaus Trulock multipoint door lock is designed for enhanced security and durability, featuring a robust configuration of 2 hooks, 1 deadbolt, and 1 latch. This locking system is ideal for timber and composite doors, particularly in social housing and new build projects.

Key Features:

• Multipoint Locking System: Incorporates a central latch and deadbolt, with additional hook locking points (2 or 4).
• Operation Options: Available in lift lever, split spindle, or key wind operations, providing flexibility to suit various user preferences.
• Handed Hooks: The Trulock system features handed hook locking points, ensuring a secure fit that cannot be reversed on-site.
• Identification: Easily identifiable by the Winkhaus logo on the faceplate and the central deadbolt configuration. Look for the Secured by Design logo for added assurance of security.
• Gearbox Compatibility: Shares the same gearbox as the Cobra lock, but with distinct hooks. The Trulock's handed design enhances security, while the Cobra's non-handed design offers versatility.

Installation and Upgrades:

Winkhaus locks maintain consistent routing details, simplifying the process of changing locking operations or upgrading to automatic locking systems. Note that new keeps and handles may be necessary for these modifications.

Dimensions and Design:

• Compact Gearbox: All Winkhaus gearboxes (except AV4) measure 185mm high x backset + 15mm, making them among the smallest available.
• Groove Feature: A groove above the spindle aids in fitting handles with a screw above the lever, enhancing usability.
• Rivet Attachment: Gearboxes are attached to the faceplate with rivets, making them easier to identify and replace compared to other brands.

Operation Instructions:

To Lock the Door:

1. Lift the handle upwards to engage the locking points.
2. Turn the key to secure the locking points and the main deadbolt (if applicable).

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle downwards to disengage the locking points and retract the latch.

Security Assurance:

The Winkhaus Trulock has been rigorously tested to withstand 100,000 cycles, ensuring reliability and peace of mind for users.

Product Specification

• Manufacturer: Winkhaus
• Spindle Size: 8mm
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Single 8mm
• Handing: Left Hand

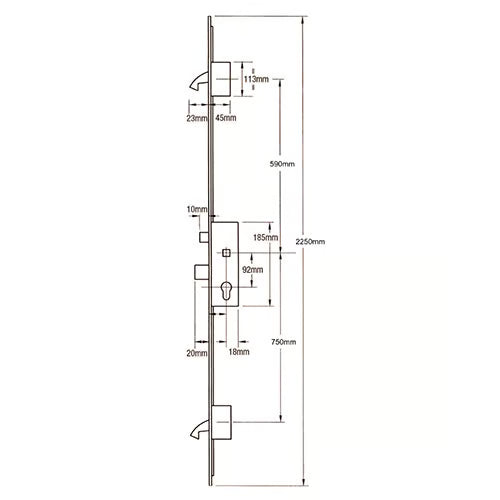

• Distance Between Inner Locking: 1340mm
• Height: 2250mm
• Top Hook to Spindle: 590mm
• Bottom Hook to Spindle: 750mm

Measuring Guidelines:

To ensure accurate measurements for your Winkhaus Trulock multipoint door lock, follow these guidelines:

Backset Measurement: To measure the backset, place a ruler or measuring tape from the edge of the door to the center of the lock cylinder. This distance is crucial for proper installation.

Centres PZ Measurement: For the Centres PZ, measure from the center of the keyhole to the center of the handle hole. This measurement is essential for aligning the lock correctly.

Faceplate Measurement: To measure the faceplate, determine the width and length of the existing faceplate on your door. This ensures that the new lock fits seamlessly into the door frame.

By following these steps, you can ensure that your Winkhaus Trulock lock is installed correctly and functions optimally.
