Latch Deadbolt 2 Hooks 24mm U-Rail Faceplate Multipoint Door Lock - Option 1 (top hook to spindle = 740mm)

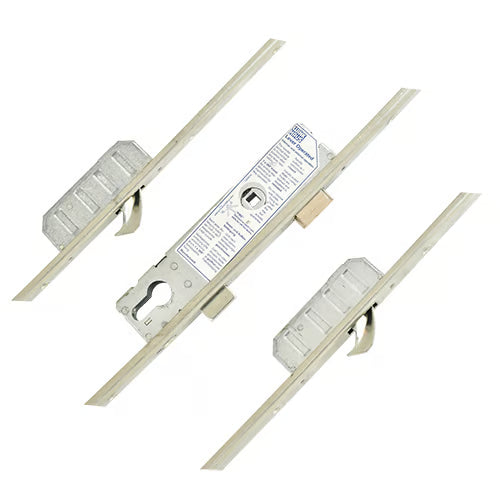

Winkhaus Trulock Multipoint Door Lock Overview

The Winkhaus Trulock multipoint door lock is designed for enhanced security and functionality, featuring a robust configuration of 2 hooks, 1 deadbolt, and 1 latch. This lock is ideal for timber and composite doors, particularly in social housing and new build projects.

Key Features:

• Multi-Point Locking System: The Trulock system includes a central latch and deadbolt, complemented by 2 or more hook locking points for superior security.
• Operation Options: Available in lift lever operation, split spindle, or key wind, providing versatility to meet various user preferences.
• Handed Hook Locking Points: The Trulock features handed hooks that cannot be reversed on-site, ensuring a precise fit for your door.
• Identifying Your Lock: Look for the Winkhaus logo and the Secured by Design logo on the faceplate. The Trulock version is identifiable by its central deadbolt and handed hooks.

Gearbox Specifications:

• Compact Design: All Winkhaus gearboxes (except the AV4) measure 185mm high with a backset of +15mm, making them the smallest on the market.
• Interchangeability: The Trulock gearboxes are interchangeable with Cobra gearboxes, identifiable by color-coded stickers indicating the operation type (blue for lift lever, green for split spindle, red for key wind).
• Easy Replacement: Gearboxes are attached with rivets, allowing for straightforward swaps without compromising the lock's integrity.

Installation and Operation:

• Fitting Tolerance: The specially designed tensile steel handed hook features a 4.5mm chamfer, allowing for a high degree of fitting tolerance during installation.
• Locking Mechanism:
  • To Lock: Lift the handle to engage the locking points, then turn the key to secure the deadbolt.
  • To Unlock: Turn the key to disengage the system, then push the handle down to retract the latch.

Additional Information:

• Durability: The Trulock has been tested to withstand 100,000 cycles, ensuring long-lasting performance.
• Associated Products: A range of compatible products, including keeps, spindles, handles, and accessories, are available to enhance your locking system.
• Handing Charts: Detailed handing charts are provided to assist in determining the correct handing based on door orientation.

Product Specifications:

• Manufacturer: Winkhaus
• Backset: Select from drop-down options
• Centres PZ: 92mm
• Faceplate: Select from drop-down options
• Spindle Size: 8mm
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Operation: Select from drop-down options
• Spindle: Single 8mm
• Handing: Left Hand

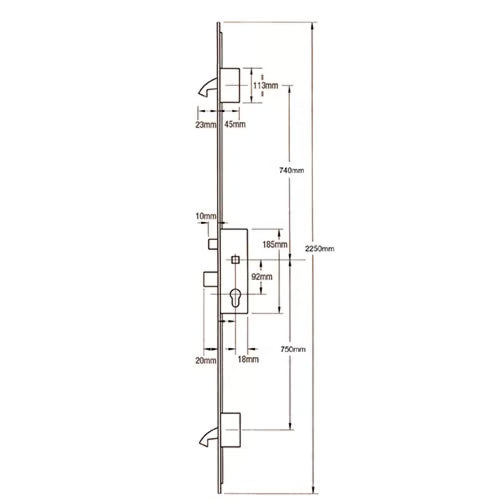

• Distance Between Inner Locking: 1490mm
• Height: 2250mm
• Top Hook to Spindle: 740mm
• Bottom Hook to Spindle: 750mm

For any further assistance or to explore our range of Winkhaus Trulock products, please feel free to reach out!
