Product Overview
ERA locks, also known under various brands such as Homesafe, Surelock, Saracen, Spartan, Duraflex, Supa, Westward, or Cego, are designed for versatility and ease of installation. These locks were originally created to replace GU, Lockmaster, and Winkhaus locks without requiring new routing positions, making them a convenient choice for upgrades.
Specifications
-
Backset Options: 28mm, 30mm, 35mm, and 45mm
-
Centres: 92mm
-
Operation Types: Lift lever or split spindle nightlatch
Latch Reversal Instructions
To reverse the latch, simply follow these steps:
- Undo the screws in the latch to remove it.
- Reverse the latch.
- Reinsert and replace the screws.
This straightforward process ensures that you can customize the lock to fit your specific needs efficiently.

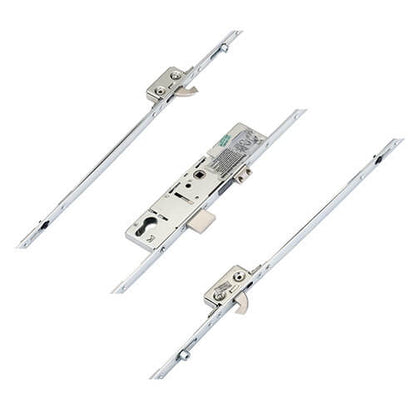

Product Specification
- Manufacturer: ERA
- Spindle Size: 8mm
- Rollers: 2

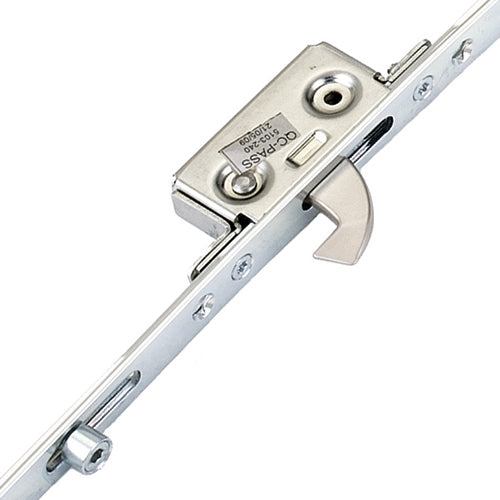

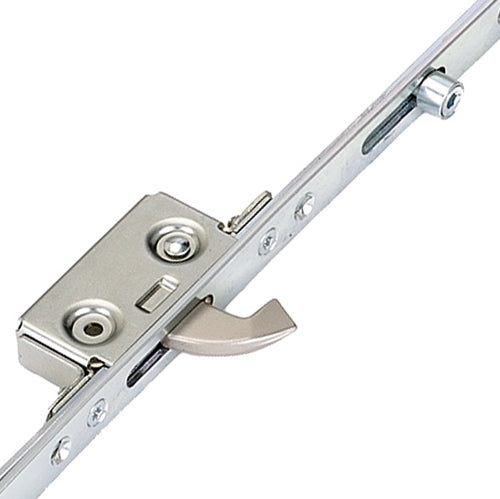

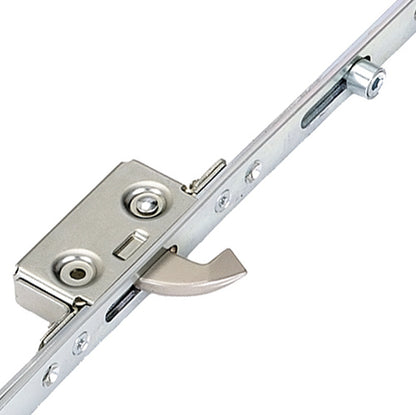

- Hooks: 2

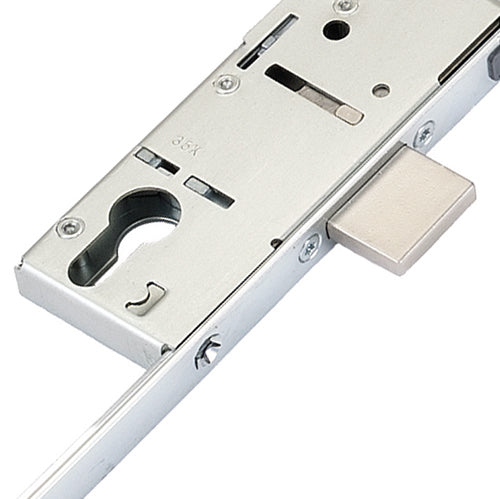

- Deadbolts: 1
- Latch: 1
- Main Gearbox: Latch & deadbolt

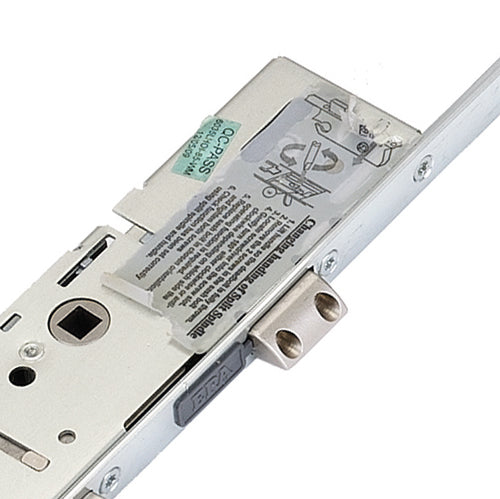

- Spindle: Split 8mm
- Handing: Non handed
- Distance Between Inner Locking: 1220mm
- Distance Between Outer Locking: 1430mm
- Height: 2250mm
- Top Hook to Spindle: 610mm
- Bottom Hook to Spindle: 610mm
- Top Roller to Spindle: 715mm
- Bottom Roller to Spindle: 715mm
- Door Material: UPVC, Aluminium
Measuring Guidelines
To ensure accurate measurements for your ERA locks, follow these guidelines:
Backset Measurement
To measure the backset, take a ruler and measure the distance from the edge of the door to the center of the lock cylinder. This will give you the backset size you need to select.
Centres Measurement
For measuring the centres, measure the distance between the center of the keyhole and the center of the handle. This is crucial for ensuring that the lock fits properly.
Faceplate Measurement
To measure the faceplate, you need to measure the width and height of the existing faceplate on your door. This will help you choose the correct size from the drop-down options.
Operation Types
Understanding the operation type is essential for functionality. The options typically include lift lever or split spindle nightlatch. Make sure to select the one that best suits your needs.
By following these measuring guidelines, you can ensure that your ERA locks will fit perfectly and function effectively in your door setup.
