Latch Deadbolt 2 Hooks 2 Rollers Lift Lever Multipoint Door Lock

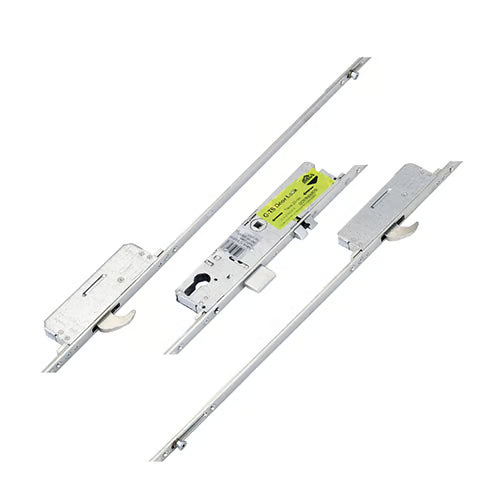

Product Overview: Maco G-TS Repair Multipoint Door Lock

The Maco G-TS Repair multipoint door lock is designed for enhanced security and durability, featuring a robust configuration that includes:

• 2 Rollers
• 2 Hooks
• 1 Deadbolt
• 1 Latch

Compatibility and Replacement Options

While most G-TS locks have been discontinued, select models with either a 28mm or 35mm backset remain available. These locks are specifically engineered to replace older, discontinued models, including the 56231 and 233051 Maco G-TS locks. Our part codes for these replacements are:

• MA53500
• MA53501
• MA53502 (lever/lever only)

Please note that some adjustments to the keep positions may be necessary during installation.

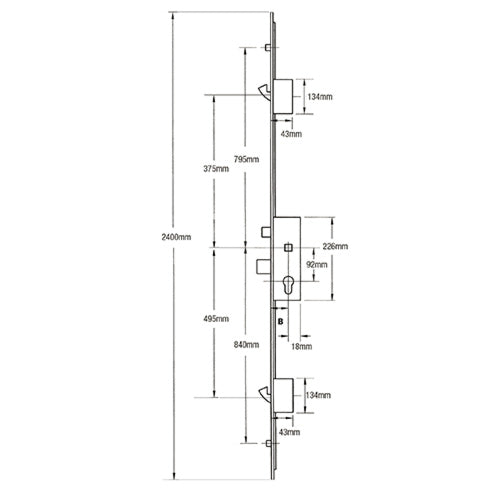

Lock Measurements

• Top Hook: 375mm from the spindle
• Bottom Hook: 495mm from the spindle
• Roller Positions: 795mm (top) and 840mm (bottom) from the spindle

If replacing a lock with shoot bolts, you may need to either remove them or swap their positions based on your configuration.

Gearbox Specifications

Maco G-TS gearboxes have evolved over the years, and it is crucial to select the correct version as they are not interchangeable. The current G-TS lock, produced since 2010, features different screw fixing positions compared to older versions.

Gearbox Dimensions:

• Height: 228mm
• Width: Backset + 18mm
• Centre (PZ): 92mm
• Latch Height: 29mm
• Deadbolt Height: 30mm
• Distance from Latch to Deadbolt: 54mm

The gearboxes are secured to their faceplates with three screws:

• Top to Middle Screw: 57mm
• Middle to Bottom Screw: 180mm

Hook and Roller Functionality

Maco G-TS hooks are designed to move upwards when thrown, with hook cases measuring 134mm high. The rollers, referred to as i.S. cams, are constructed from hardened steel to resist tampering.

Operation Instructions

To Lock the Door:

1. Lift the handle upwards to engage the locking points.
2. Secure the locking points and main deadbolt (if applicable) by turning the key.

To Unlock the Door:

1. Unlock the system by turning the key.
2. Push the handle downwards to disengage the locking points and retract the latch.

This comprehensive overview ensures you have all the necessary information for the Maco G-TS Repair multipoint door lock, facilitating a smooth installation and operation process.

Product Specification

• Manufacturer: Maco
• Spindle Size: 8mm
• Main Gearbox: Latch & deadbolt
• Spindle: Single 8mm
• Handing: Non handed
• Distance Between Inner Locking: 870mm
• Distance Between Outer Locking: 1635mm
• Height: 2400mm
• Top Hook to Spindle: 375mm
• Bottom Hook to Spindle: 495mm
• Top Roller to Spindle: 795mm
• Bottom Roller to Spindle: 840mm
• Door Material: UPVC, Aluminium, Timber, Composite

This detailed specification provides essential information for selecting and installing the Maco G-TS Repair multipoint door lock, ensuring compatibility with various door materials and configurations.
