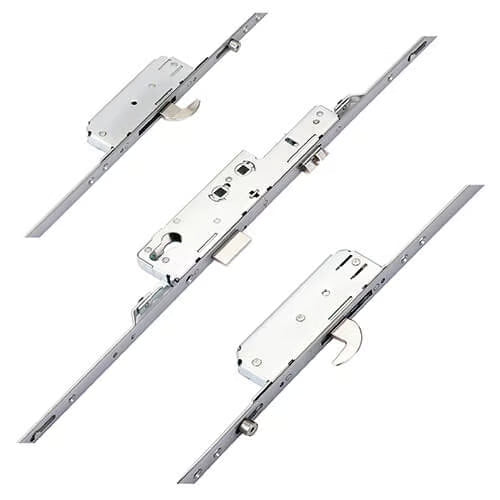

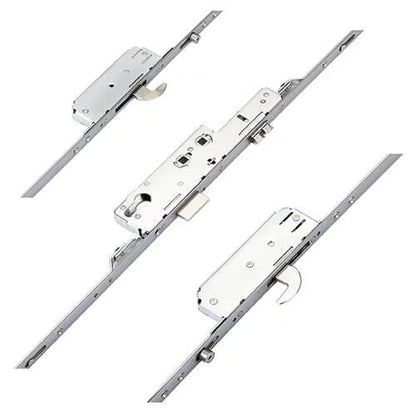

Latch Deadbolt 2 Hooks 2 Rollers Double Spindle Multipoint Door Lock (top roller to spindle = 675mm) - Shootbolt Compatible

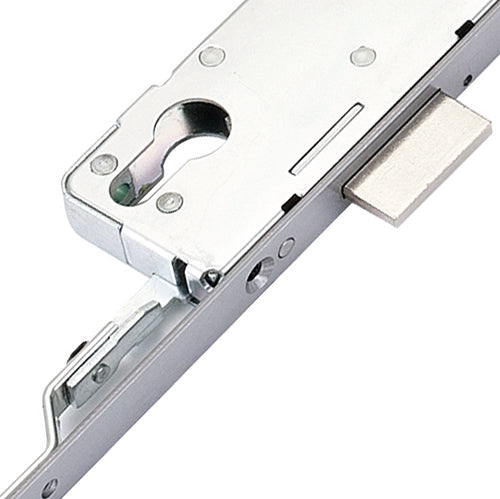

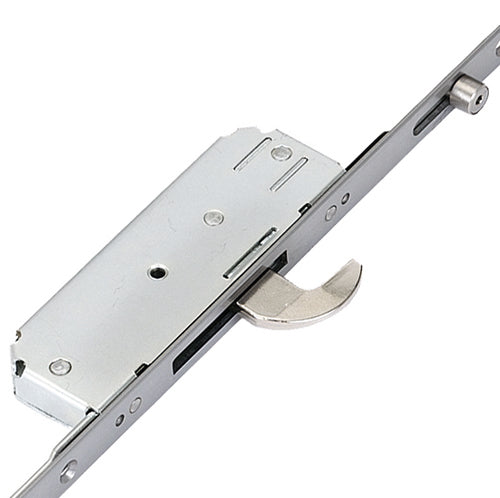

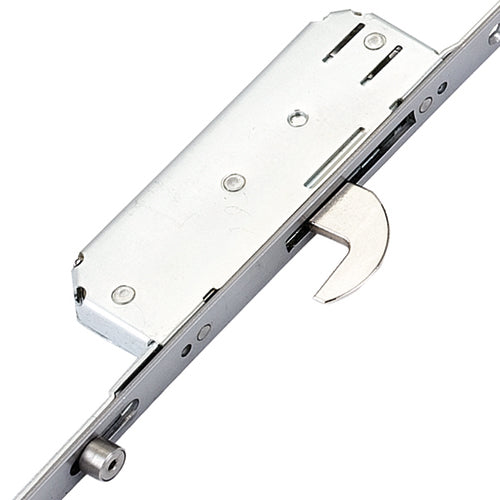

The Avocet 2 Hook, 2 Roller multipoint door lock combines security with weatherproofing in a single unit. This silver-finish lock features 2 rollers for compression and dust prevention, 2 opposing hooks for robust locking, 1 deadbolt with 20mm throw, and 1 latch, all operating through a double spindle nightlatch configuration. Designed for PVCu doors with a flat 16mm faceplate, this lock is shootbolt compatible and measures 35mm backset. The distinctive gearbox design—featuring a unique cut-out extending below the latch—makes identification straightforward. Rollers engage into keeps to support door height and prevent warping, while the deadbolt and hooks provide multi-point security at 62mm and 92mm centres. Easily recognisable by the Avocet logo stamped on the faceplate, this lock represents the modern silver version of the original yellow passivated design. Ideal for composite and PVCu doors requiring reliable multipoint locking with integrated weatherproofing.

Operation: Double Spindle

To lock the door:

1. On closing the door, the latch is automatically engaged.

2. Lift the handle up to engage the locking points.

3. Lock the system by turning the key.

To unlock the door:

1. Unlock the system by turning the key.

2. Push the handle downwards to disengage the locking points.

3. A further quarter turn of the key will retract the latch.

Corrosion resistance: BSEN1670:2007 Grade 4
Tested to 100,000 cycles.

We stock a range of associated products for Avocet multipoint door locks, including keeps, spindles, handles, and accessories. This ensures that you have everything you need for a complete and secure installation, enhancing the overall functionality and longevity of your locking system.

Product Specification

• Manufacturer: Avocet
• Backset: Select from drop-down
• Centres PZ: 92mm/62mm
• Faceplate: Select from drop-down
• Spindle Size: 8mm
• Rollers: 2
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Operation: Select from drop-down
• Spindle: Double 8mm
• Handing: Non handed

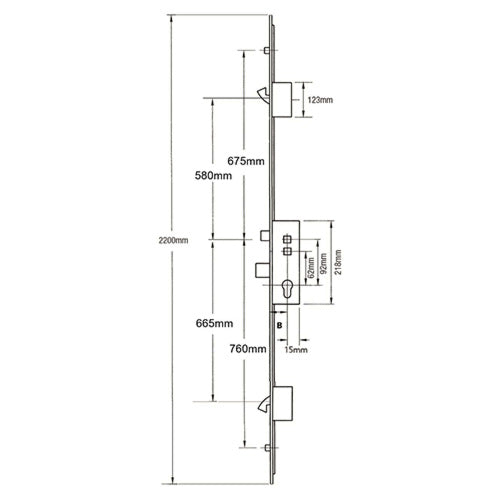

• Distance Between Inner Locking: 1245mm
• Distance Between Outer Locking: 1435mm
• Height: 2200mm
• Top Hook to Spindle: 580mm
• Bottom Hook to Spindle: 665mm
• Top Roller to Spindle: 675mm
• Bottom Roller to Spindle: 760mm
• Door Material: UPVC, Aluminium

Measuring Guidelines

To ensure accurate measurements for your Avocet multipoint door lock, follow these guidelines:

Backset Measurement:

1. Measure from the edge of the door to the center of the keyhole.
2. This distance is your backset.

Centres Measurement:

1. Measure the distance between the centers of the keyhole and the handle hole.
2. This will give you the PZ measurement (92mm or 62mm).

Faceplate Measurement:

1. Measure the width and length of the existing faceplate.
2. Ensure to check the thickness to select the correct option from the drop-down.

By following these steps, you can ensure that your lock installation is precise and secure.
