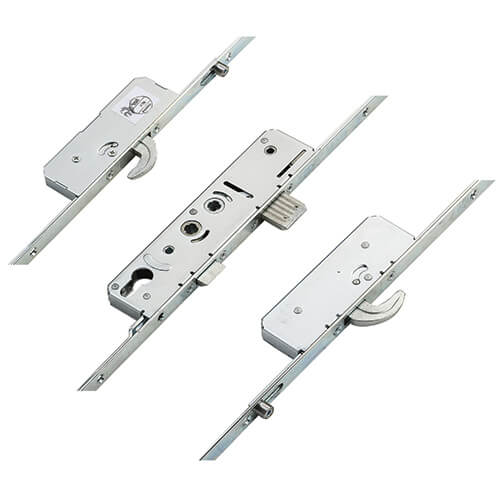

Latch Deadbolt 2 Hooks 2 Rollers Double Spindle Multipoint Door Lock (top hook to spindle = 640mm)

Avantis multipoint door lock – the tough and innovative solution to increase home security. It is one of the most dependable and efficient locks on the market featuring a unique configuration of 2 Rollers, 2 Hooks, 1 Deadbolt and 1 Latch.

The Avantis 650 Series Residential lock is distinguished by its unique latch and deadbolt configuration. Notably, Avantis locks have the biggest hooks on the market at 25mm, which significantly boosts their security performance. This standard version is also available in a narrow locking position variant for a wider range of installation requirements.

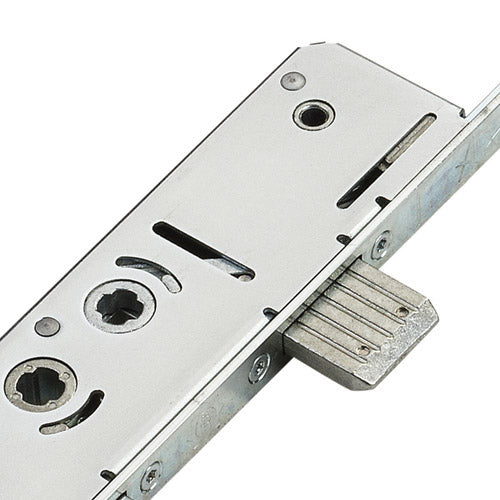

Avantis locks are designed specifically for the UK residential door market with a 25mm throw and a direct drive deadbolt in the main gear box. This is a huge advantage over many competitors whose gearbox deadbolts usually only extend 20mm. The Avantis deadbolt also features a unique design with 5 grooves and a chamfered edge that provides additional compression and overall security.

Compatibility is also a strong point, as 16mm faceplate locks can sit comfortably with shootbolts which give further locking options. Founded in 2006, Avantis has been fast building a reputation in the sector, thanks to the know-how of its founder, the former chief executive of Millenco. This background means that the brand, although young, is backed by substantial experience in the UK market.

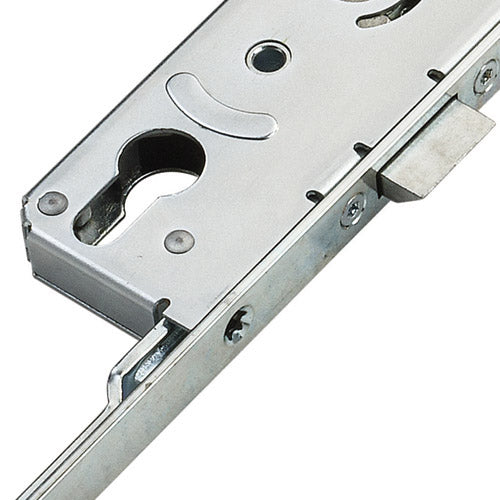

Avantis gearboxes are unique in that they have a grooved deadbolt above the latch that is 30mm high and extends 25mm when thrown. Correct installation and operation require the precise measurement from the bottom of the deadbolt to the top of the latch (60mm) and the latch height (24mm).

These come as a double spindle with 92mm and 62mm centres. These gearboxes can be used for double spindle nightlatch functionality or a standard lift lever making them versatile for many types of door. The spindles are cross shaped but also accept a common 8mm spindle so it will work with existing hardware.

When measuring for fitting, take into account the gearboxes are 220mm high plus a 15mm backset, and allow a further 2mm for locks with pre-fitted faceplates. Four screws are strategically placed to ensure that the gearboxes are securely attached to the faceplate.

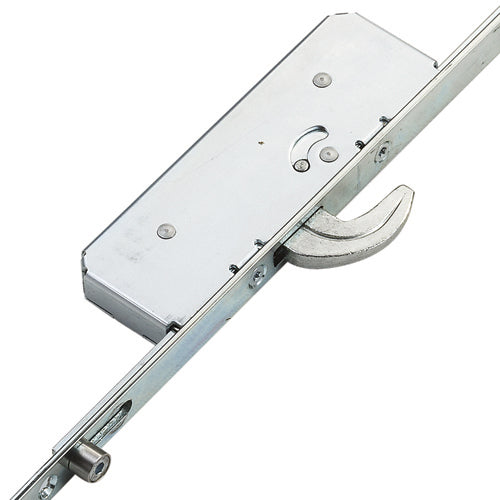

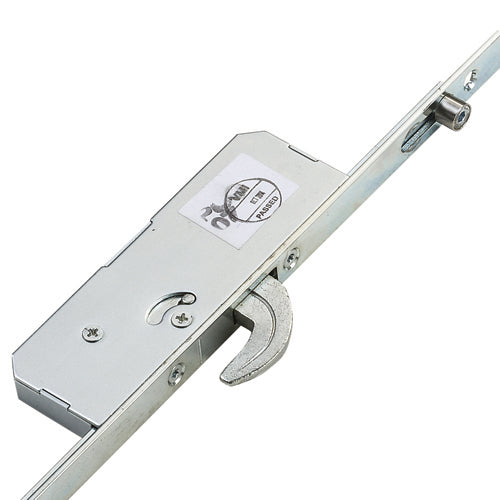

Avantis are proud to announce that they have the largest hooks on the UK market and provide unrivalled security. The chamfer design of the hooks pulls the door effectively to the frame, improving weather sealing and overall performance. Furthermore, the opposing throw of the hooks adds to the security features of the lock.

You need rollers for compression, to hold the door to the frame, to keep out dust and water. They might not add real security but they do help the door keep its shape. If the rollers are properly engaged with their keeps they will prevent warping of the door.

In conclusion, Avantis multipoint door locks offer an impressive blend of forward-thinking design, strong security features and compatibility. Making them an ideal selection for residential applications.

To lock the door.

1. The door closes and the latch catches automatically.
2. Lift the handle to engage the locking points.
3. Turn the key to lock the system.

To open the door

1. Unlock the system with the key.
2. Push the handle down to release the lock points.
3. With another quarter turn of the key the latch will be released.

Product Specification.

• Manufacturer: Avantis
• PZ Centres 92 mm/62 mm
• Spindle Size: 8 mm
• Number of Rollers: 2
• Hooks: 2 Hints:
• Dead Bolts: 1
• Latch: 1.
• Main Gearbox: Latch and Deadbolt
• Spindle: 8mm Double
• Handed: Non-handed
• Locking Distance Inner: 1303 mm
• Outer locking distance: 1535 mm
• Height: 2250 mm
• Top Hook to Spindle 640 mm
• Bottom Hook to Spindle: 663mm
• Top roller to spindle 768 mm
• Spindle to Bottom Roller 767mm
• Material of Door UPVC, Aluminum
