Latch Deadbolt 2 Hooks 2 Rollers Double Spindle Multipoint Door Lock

Product Overview: Elite Standard Multipoint Door Lock

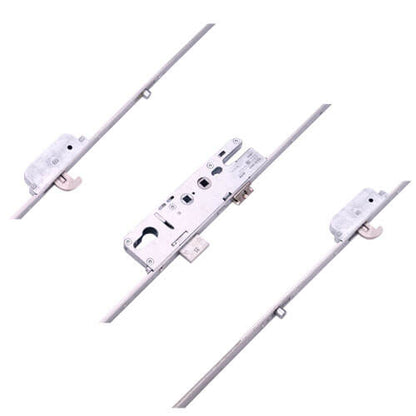

The Elite Standard multipoint door lock is designed for enhanced security and durability, featuring a robust configuration that includes 2 rollers, 2 hooks, 1 deadbolt, and 1 latch. This lock is an ideal choice for those looking to upgrade or replace older Roto locks, ensuring compatibility and ease of installation.

Key Features:

• Versatile Applications: Suitable for a wide range of door types, the Elite multipoint lock is crafted in Europe and boasts a "Silbear" coating, providing exceptional protection against corrosion with 480 hours of salt spray resistance.

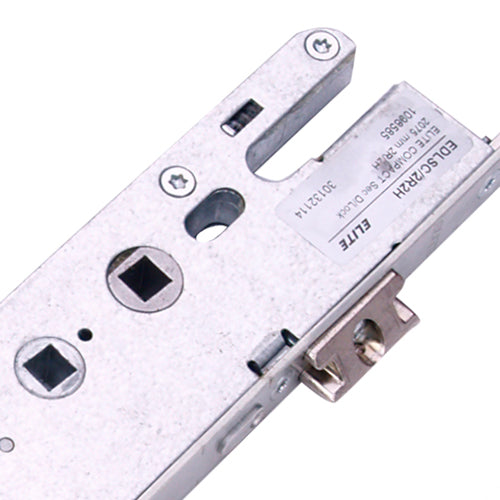

• Identification: To confirm you have an Elite lock, check for the stamped Elite logo on the faceplate. The gearbox is designed with a slot and a small hole for bolt-through handles, ensuring a secure fit.
• Legacy and Compatibility: Elite has taken over the manufacturing of these locks from Roto-Frank, maintaining the same specifications and tooling, with the addition of the advanced Silbear coating. This lock is recognized in our catalogues as the MVD range or "Roto mark 2" locks, allowing for a straightforward lock swap without needing to change the gearbox.
• Size Options: Available in both standard and compact versions, the Elite locks cater to shorter doors while maintaining a consistent handle height of 950mm. The compact version has an overall length of 1810mm.
• Gearbox Specifications: The gearboxes come in single spindle (35mm) or double spindle options (35mm or 45mm). Dimensions include a height of 200mm and a backset measurement that requires an additional 2mm for the faceplate.

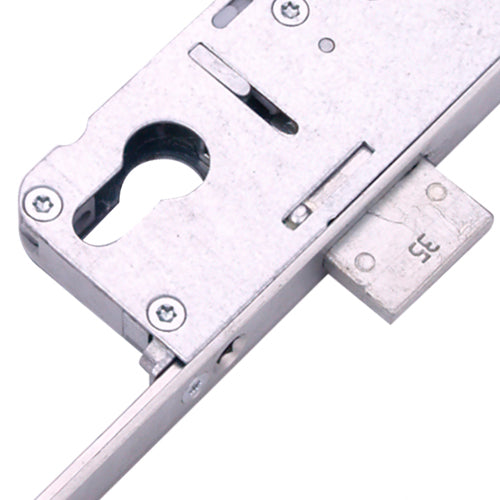

• Locking Mechanism: The deadbolt projects 20mm, while the latch projects 10mm. The distance between the latch and deadbolt is 63mm, with centers positioned at 62mm and 92mm.

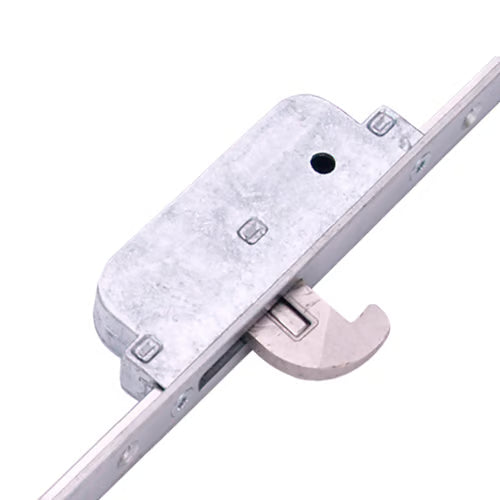

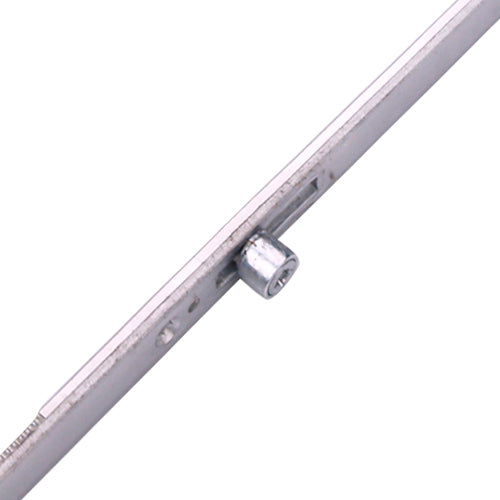

• Hook and Roller Functionality: Elite hooks can operate in various directions, depending on the model, and are coated with Silbear for maximum durability. Rollers assist in compressing the door against the frame, enhancing weather sealing and preventing warping.

Operation Instructions:

To Lock the Door:

1. Close the door to automatically engage the latch.
2. Lift the handle to engage the locking points.
3. Turn the key to secure the system.

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle down to disengage the locking points.
3. A quarter turn of the key will retract the latch.

This Elite multipoint door lock combines security, functionality, and ease of use, making it a reliable choice for any door installation.

Product Specification

• Manufacturer: Elite
• Spindle Size: 8mm
• Rollers: 2
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Double 8mm
• Handing: Non handed

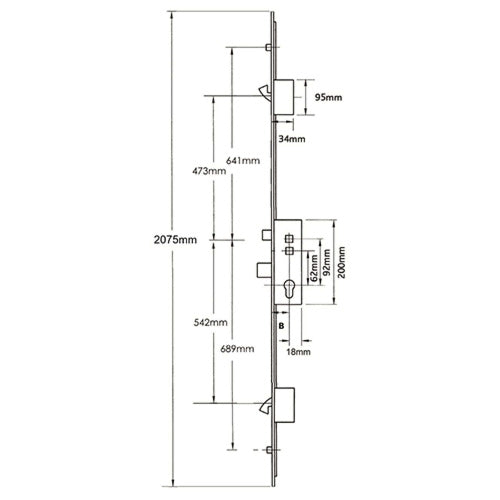

• Distance Between Inner Locking: 1015mm
• Distance Between Outer Locking: 1330mm
• Height: 2200mm
• Top Hook to Spindle: 473mm
• Bottom Hook to Spindle: 542mm
• Top Roller to Spindle: 641mm
• Bottom Roller to Spindle: 689mm
• Door Material: UPVC, Aluminium

This comprehensive specification ensures that you have all the necessary details for selecting and installing the Elite Standard multipoint door lock, providing both security and functionality for your door.
