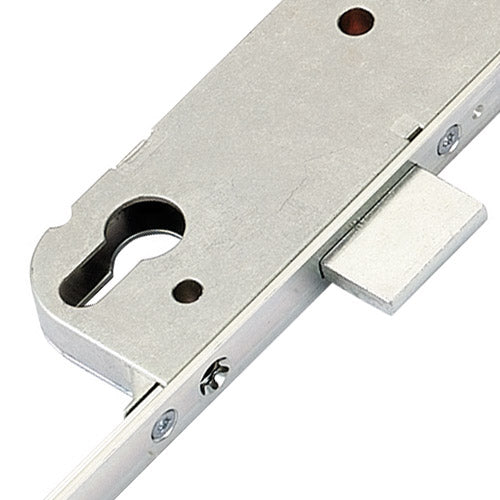

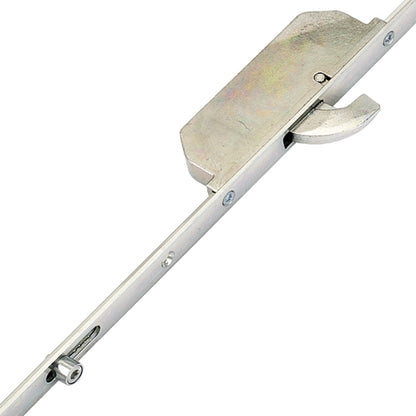

Latch Deadbolt 2 Hooks 2 Outboard Rollers Split Spindle Multipoint Door Lock (top hook to spindle = 440mm)

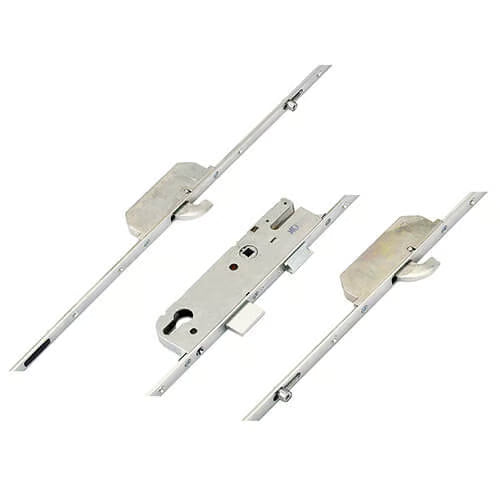

Product Overview: GU Europa Multipoint Door Lock

The GU Europa multipoint door lock is designed for enhanced security and functionality, featuring a robust configuration that includes 2 Rollers, 2 Hooks, 1 Deadbolt, and 1 Latch. This lock is part of the GU range known as "SECURY," specifically tailored for multipoint locking systems.

Key Features:

• Versatile Operation: Available in split spindle, lift lever, and wide versions, the Europa series caters to various door designs and user preferences.
• Identifiable Design: GU locks are easily recognizable by the logo stamped on the faceplate, ensuring authenticity and quality.
• Compatibility: While older GU locks may be referred to as "Ferco," the modern naming convention is "GU." This distinction is crucial for accurate replacements and repairs.

Installation Insights:

When replacing an old GU lock with a new version, adjustments may be necessary for the centre deadbolt and latch keep to align correctly. Although most locking point positions will match, some modifications might be required due to differences in deadbolt thickness between old and new models.

Locking Mechanism:

The GU Europa lock employs a split spindle operation, allowing for secure locking and unlocking through a simple handle lift and key turn. This mechanism ensures that the door remains tightly sealed against the frame, enhancing both security and weather resistance.

Maintenance and Adjustments:

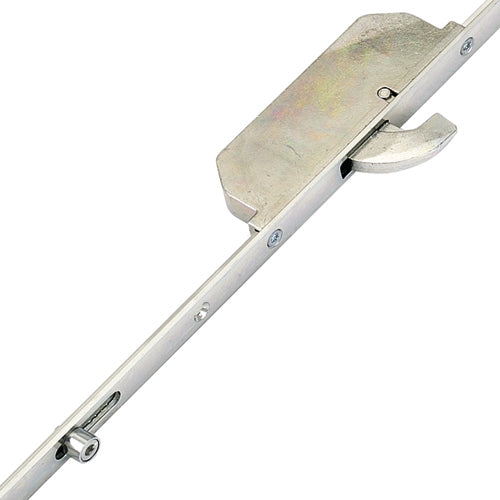

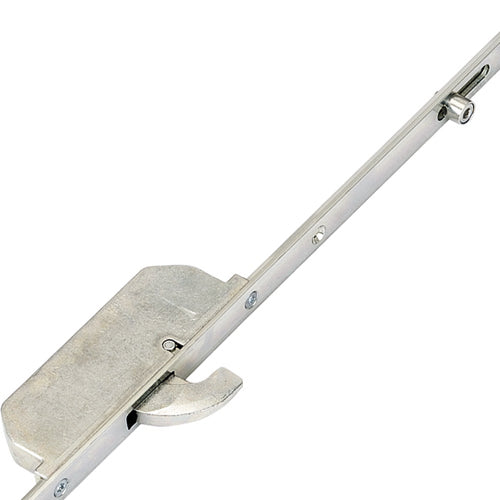

Regular checks on the rollers and hooks are recommended to ensure optimal performance. Rollers can be adjusted by +/- 1mm to achieve the best weather sealing, while the hooks and deadbolts are designed to withstand forced entry attempts.

Product Specification

• Manufacturer: GU
• Spindle Size: 8mm
• Rollers: 2
• Hooks: 2
• Deadbolts: 1
• Latch: 1

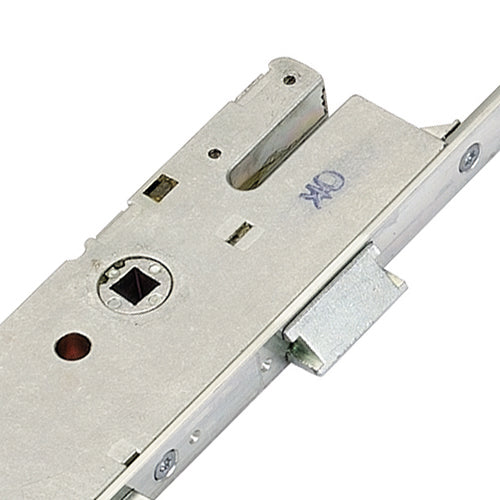

• Main Gearbox: Latch & deadbolt
• Spindle: Split 8mm
• Handing: Non handed
• Distance Between Inner Locking: 990mm
• Distance Between Outer Locking: 1330mm
• Height: 2285mm
• Top Hook to Spindle: 440mm
• Bottom Hook to Spindle: 550mm
• Top Roller to Spindle: 640mm
• Bottom Roller to Spindle: 690mm
• Door Material: UPVC, Aluminium

Measuring Guidelines:

To ensure accurate measurements for your GU Europa multipoint door lock, follow these guidelines:

• Backset Measurement:
  • Measure from the edge of the door to the center of the keyhole.
  • This distance is your backset.
• Centres PZ Measurement:
  • Measure from the center of the keyhole to the center of the handle hole.
  • This will give you the PZ measurement.
• Faceplate Measurement:
  • Measure the width and length of the existing faceplate.
  • Ensure to check the thickness as well for compatibility.
• Operation Selection:
  • Choose the operation type based on your door's design and user preference.
  • Options may include split spindle, lift lever, or wide versions.

By following these steps, you can ensure that your GU Europa lock fits perfectly and operates smoothly.
