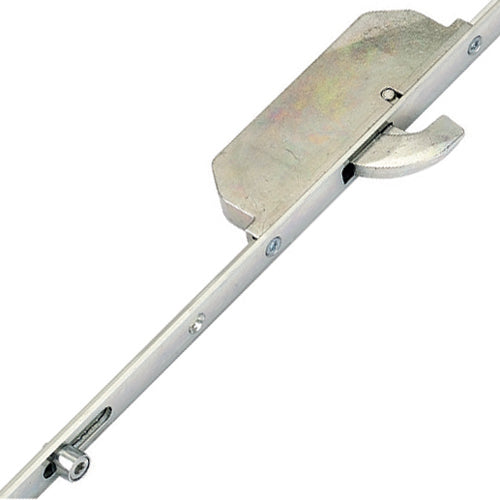

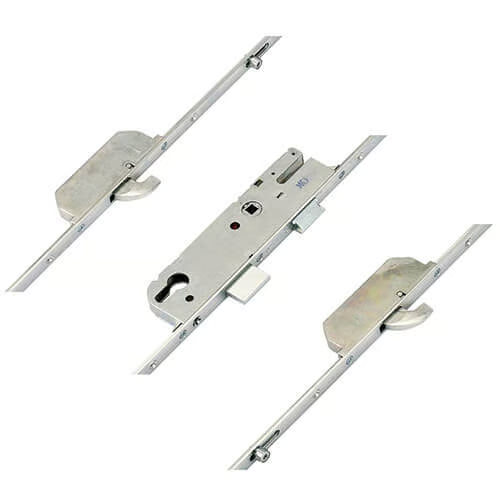

Latch Deadbolt 2 Hooks 2 Outboard Rollers Lift Lever Multipoint Door Lock - Option 1 (top hook to spindle = 455mm)

Product Overview: GU Europa Multipoint Door Lock

The GU Europa multipoint door lock is designed for enhanced security and functionality, featuring a robust configuration that includes 2 Rollers, 2 Hooks, 1 Deadbolt, and 1 Latch. This lock is part of the GU range known as "SECURY," with the Europa series specifically offering lever and split spindle operated versions.

Key Features:

• Versatile Operation: Available in both lift lever and split spindle nightlatch operations, ensuring flexibility for various door types.
• Identifiable Design: GU locks are easily recognizable by the logo stamped on the faceplate. Older models may differ in style, so it's essential to check for compatibility when replacing locks.
• Modern Upgrades: GU has transitioned from older styles to a new design, enhancing security features and ease of installation. If you're replacing an old lock, adjustments may be necessary for the center deadbolt and latch keep.

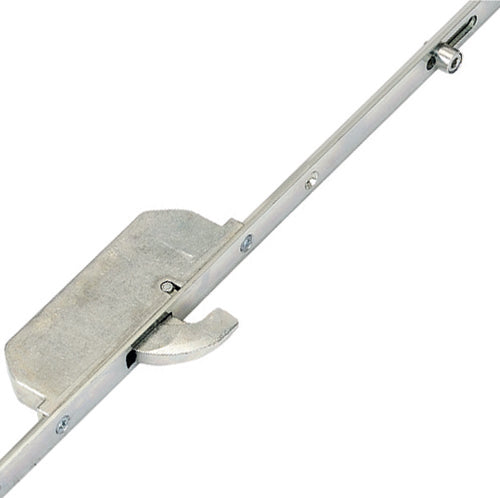

• Locking Mechanism: The lock features multiple locking points, including hooks and rollers, which provide additional security and weather sealing. Rollers help compress the door against the frame, preventing dust and water ingress.

Installation Notes:

• Compatibility: When replacing old GU locks, ensure that the new version aligns with existing keeps. The thickness of new deadbolts may require updated keeps for proper fit.

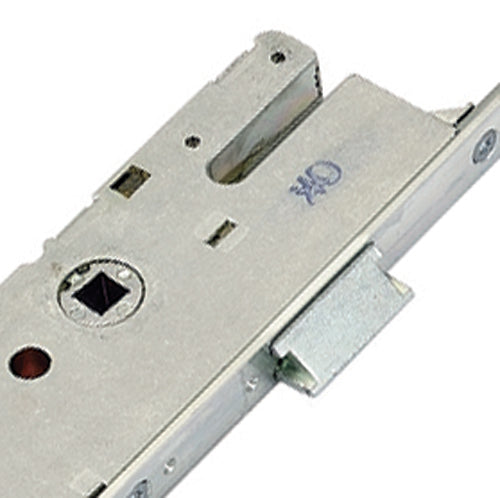

• Gearbox Specifications: New style GU gearboxes are distinct from older models, featuring a vertical groove for handle bolts. Measurements for the gearbox are 191mm high and vary in backset sizes, accommodating a wide range of installations.
• Adjustment Features: Rollers are adjustable by +/- 1mm, allowing for optimal weather sealing and door alignment.

Operation Instructions:

• To lock the door:
  • Lift the handle upwards to engage all locking points.
  • Turn the key to secure the locking points and main deadbolt.
• To unlock the door:
  • Turn the key to disengage the locking system.
  • Push the handle downwards to retract the latch and unlock the door.

Product Specification

• Manufacturer: GU
• Spindle Size: 8mm
• Rollers: 2
• Hooks: 2
• Deadbolts: 1
• Latch: 1

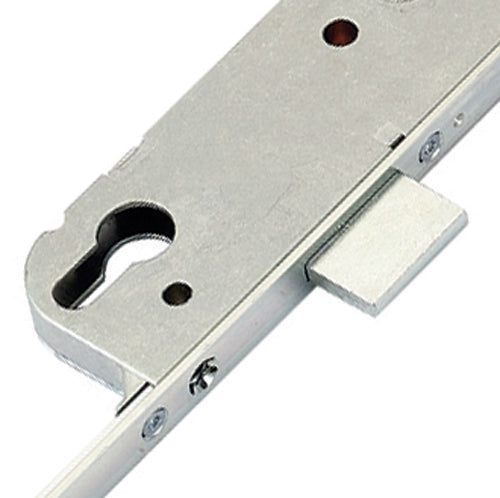

• Main Gearbox: Latch & deadbolt
• Spindle: Single 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1005mm
• Distance Between Outer Locking: 1325mm
• Height: 2285mm
• Top Hook to Spindle: 455mm
• Bottom Hook to Spindle: 550mm
• Top Roller to Spindle: 620mm
• Bottom Roller to Spindle: 705mm
• Door Material: UPVC, Aluminium

Measuring Guidelines:

To ensure accurate measurements for your GU Europa multipoint door lock, follow these guidelines:

Backset Measurement: To measure the backset, take a tape measure and measure the distance from the edge of the door to the center of the lock cylinder. This measurement is crucial for ensuring the lock fits properly.

Centres PZ Measurement: The PZ measurement refers to the distance from the center of the keyhole to the center of the handle hole. Use a tape measure to find this distance, ensuring that both holes are aligned correctly for optimal operation.

Faceplate Measurement: To measure the faceplate, remove the existing lock and measure the width and height of the faceplate. This will help you select the correct faceplate from the drop-down options.

By following these measurement guidelines, you can ensure that your GU Europa multipoint door lock installation is seamless and secure.
