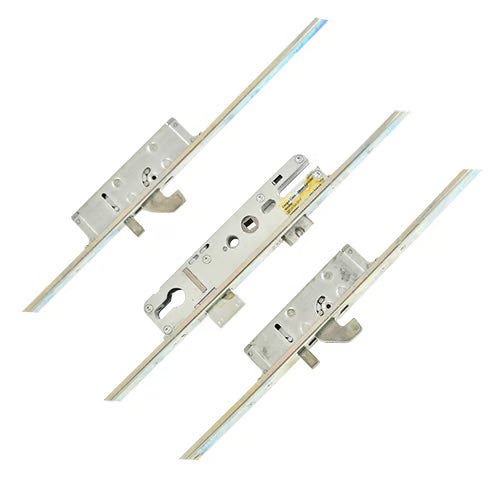

Latch Deadbolt 2 Hooks 2 Anti Lift Pins Lift Lever Bifold Multipoint Door Lock -Smarts ALUK version (top hook to spindle = 584mm)

Yale Lockmaster Bifold Multipoint Door Lock

The Yale Lockmaster Bifold multipoint door lock is designed for enhanced security and functionality in aluminium bifold doors. This lock features a robust configuration with 2 hooks, 1 deadbolt, 1 latch, and 2 anti-lift bolts, ensuring maximum protection against unauthorized access.

Key Features:

• Compatibility: Commonly fitted to aluminium bifold doors from manufacturers like Aluk and Smarts.
• Design: The lock includes a pair of hooks with anti-lift pins and a 28mm backset, tailored for the slim profile of aluminium bifold doors. Look for the Yale logo and Lockmaster logo stamped on the lock for authenticity.
• Versions Available:
  • Standard Version: Top hook positioned 584mm from the top spindle (Part Number: LM2H2824URSTD).
  • Long Version: Extended top hook at 720mm from the top spindle (Part Number: LM2H2824URLONG).
• Faceplate Dimensions: Features a distinctive 24mm x 7mm U-shaped faceplate, specifically designed to fit aluminium profiles.
• Unique Gearbox: The Yale Lockmaster bifold gearbox has a 28mm backset, differing from standard Lockmaster gearboxes (35mm and 45mm). Its compact size (202mm high by 45mm wide) and unique design make it a standout choice.
• Material Construction: Made from galvanised mild steel, with a cast zinc alloy deadbolt and latch for durability.

Installation and Operation:

• Backset Measurement: When measuring the backset, account for an additional 2-3mm for the faceplate. A 28mm backset gearbox will measure approximately 25mm when not attached to the strip.
• Locking Mechanism:
  • To Lock: Lift the handle upwards to engage the locking points, then turn the key to secure the deadbolt and locking points.
  • To Unlock: Turn the key to unlock, then push the handle down to disengage the locking points and retract the latch.

Testing and Standards:

• Security Testing: This lock is tested to PAS24:2016 standards, ensuring it meets high-security requirements.
• Corrosion Resistance: Tested to BS EN 1670:2007 Grade 4 for 240 hours, ensuring longevity in various environments.
• Endurance Testing: Successfully tested for 100,000 cycles, demonstrating its reliability over time.

Additional Products:

We offer a range of associated products for the Yale Lockmaster Bifold multipoint door locks, including keeps, spindles, handles, and accessories, to enhance your locking system.

Specifications:

• Manufacturer: Lockmaster
• Spindle Size: 8mm
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Anti Lift Bolts: 2
• Main Gearbox: Latch & deadbolt
• Spindle: Single 8mm
• Handing: Non-Handed
• Distance Between Inner Locking: 1226mm
• Height: 2200mm
• Top Hook to Spindle: 584mm
• Bottom Hook to Spindle: 642mm
• Door Material: UPVC, Aluminium

This comprehensive overview ensures you have all the necessary information to choose the right Yale Lockmaster Bifold multipoint door lock for your needs.
