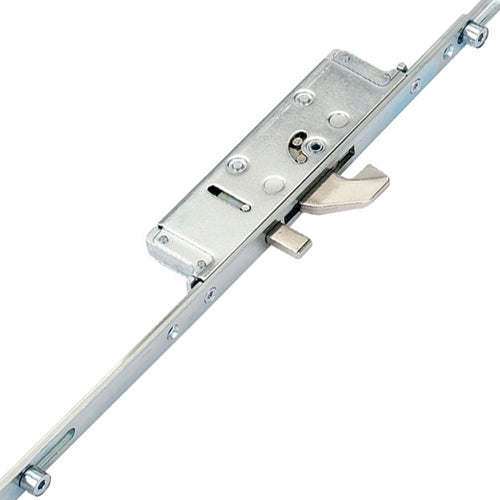

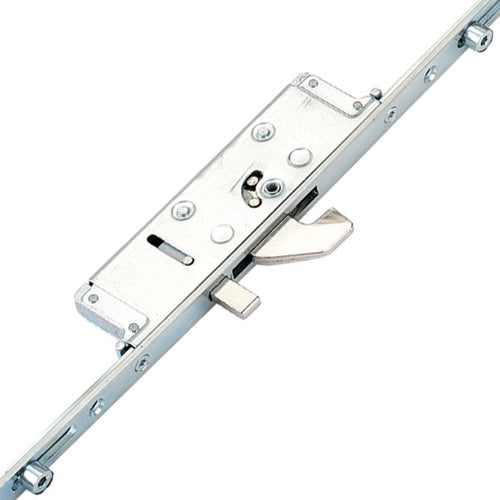

Latch Deadbolt 2 Hooks 2 Anti Lift Pins 4 Rollers Double Spindle Multipoint Door Lock

Product Overview: Mila Milamaster Multipoint Door Lock

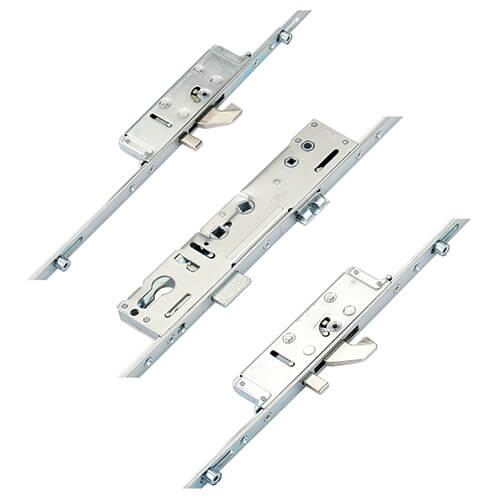

The Mila Milamaster multipoint door lock is designed for enhanced security and durability, featuring a robust configuration that includes:

• 4 Rollers
• 2 Hooks
• 1 Deadbolt
• 1 Latch
• 2 Anti Lift Bolts

This lock is equipped with anti lift pins positioned below each hook, providing an additional layer of security. It is important to note that this double spindle version is unsprung and should only be paired with sprung handles. If you are replacing a single spindle version, you may need to replace the handles as the screw could interfere with the lower spindle hole. Alternatively, consider purchasing a single spindle lockcase.

Versatile Locking Solutions

The Milamaster range, manufactured by Lockmaster for Mila, offers a variety of lock variants with locking points in different positions. We stock the most popular versions, which can be adapted for minor alterations, or we can source the exact product you need.

Identifying Milamaster locks is straightforward once removed from the door, even if the logo is not visible. Look for upward throwing locks, often featuring an anti lift pin, and a large gearbox measuring 228mm.

Lockmaster door locks are the best-selling multipoint door locks in the UK. Acquired by Yale in the early 2010s, they are now part of a broader range that includes Yale, Millenco, Millenco Mantis, and Lockmaster brands. Be aware that some older Milamaster locks may have slightly different locking point locations, which could necessitate enlarging the routing prep on the door by 40-50mm and repositioning the keeps.

Specifications and Features

Milamaster gearboxes are available in:

• 35mm or 45mm backsets
• Double spindle or single spindle mechanisms

Double spindle locks come with 62mm and 92mm centres and are unsprung, making them suitable for use with sprung door handles. They can function as lift lever or double spindle nightlatch. Single spindles are sprung and can only be used as a lift lever.

The dimensions of Milamaster gearboxes are 228mm high plus backset +15mm. The latch and deadbolt each measure 30mm high, with a 65mm gap between the bottom of the latch and the top of the deadbolt.

Gearboxes are fitted to faceplates with three screw holes, with the top to middle and middle to bottom screw holes each measuring 109mm apart. Earlier versions of these gearboxes included a small spindle hole at the top of the case, near the latch, used to hold the latch back.

The 45mm versions of the Lockmaster gearbox mirror the 35mm version but feature an extended latch and deadbolt, along with a cover plate to convert the lock to a 45mm backset.

Lock Operation

To lock the door:

1. Close the door to automatically engage the latch.
2. Lift the handle to engage the locking points.
3. Turn the key to lock the system.

To unlock the door:

1. Turn the key to unlock the system.
2. Push the handle down to disengage the locking points.
3. A further quarter turn of the key will retract the latch.

Corrosion Resistance

This lock has been corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST), ensuring its durability and reliability in various environments.

Product Specification

• Manufacturer: Milamaster
• Spindle Size: 8mm
• Rollers: 4
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Anti Lift Bolts: 2
• Main Gearbox: Latch & deadbolt
• Spindle: Double 8mm
• Handing: Non handed
• Distance Between Inner Locking: 745mm
• Distance Between Outer Locking: 1310mm
• Height: 2200mm
• Top Hook to Spindle: 465mm
• Bottom Hook to Spindle: 540mm
• Top Roller to Spindle: 615mm
• Bottom Roller to Spindle: 695mm
• Door Material: UPVC, Aluminium
