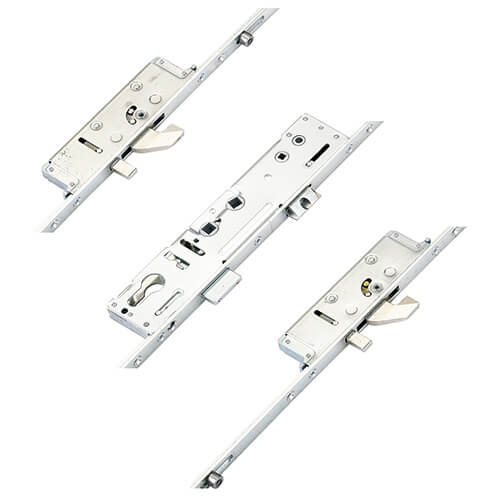

Latch Deadbolt 2 Hooks 2 Anti Lift Pins 2 Rollers Lift Lever or Double Spindle Multipoint Door Lock - Option 2 (top hook to spindle = 618mm)

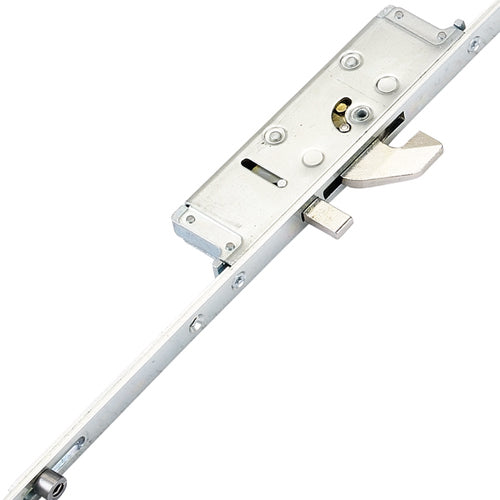

Product Overview: Lockmaster Standard Multipoint Door Lock

The Lockmaster Standard multipoint door lock is designed for enhanced security and durability, featuring a robust configuration that includes:

• 2 Rollers
• 2 Hooks
• 1 Deadbolt
• 1 Latch
• 2 Anti Lift Bolts

Versatile Locking Solutions

The Lockmaster range offers a variety of locks with different locking point positions. We stock the most popular versions, which can be easily adapted to meet your specific requirements. If you need a precise match, we can source the exact product you need.

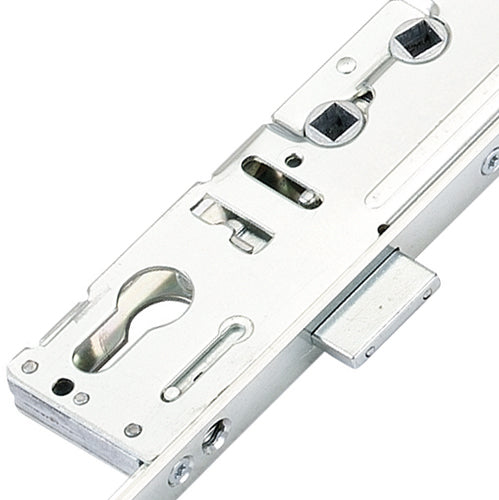

Identification and Features

Lockmaster locks are identifiable even without the logo on the faceplate. Key indicators include:

• Upwards throwing locks with an anti lift pin
• A large gearbox measuring 228mm

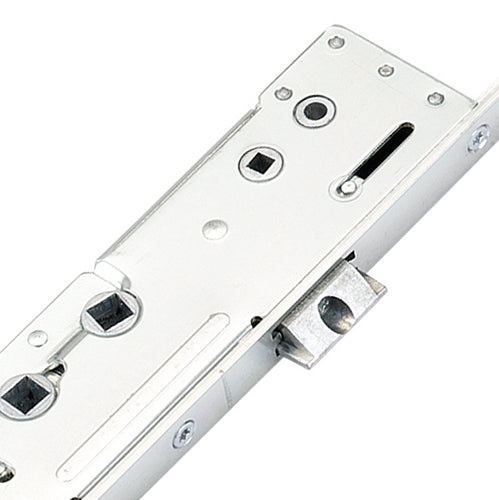

Gearbox Specifications

Lockmaster gearboxes come in:

• 35mm or 45mm backsets
• Double spindle or single spindle mechanisms
• Bifold door versions available in 25mm and 28mm backsets

Double spindle locks feature 62mm and 92mm centres and are unsprung, so we recommend using sprung door handles. Single spindles are sprung and can only function as lift levers.

Dimensions and Fitting

• Gearbox height: 228mm + backset + 15mm
• Latch and deadbolt height: 30mm
• Distance between latch and deadbolt: 65mm

Gearboxes are fitted to faceplates with three screw holes, with the top to middle and middle to bottom screw holes both measuring 109mm. Earlier versions included a small spindle hole near the latch for holding it back.

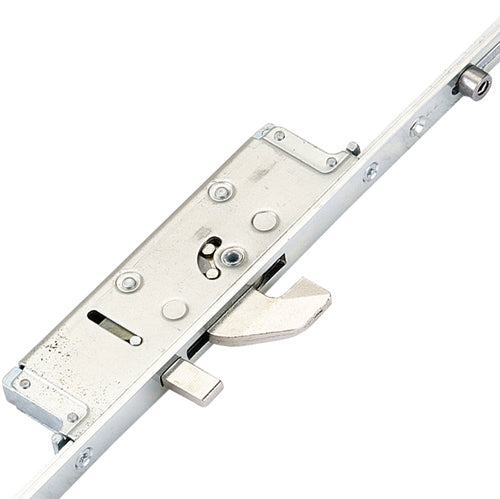

Lock Features

Lockmaster locks may feature:

• Normal hooks or hooks with an anti lift pin
• Chamfered edge deadbolts with cases measuring 154mm high
• Rollers for compression to prevent dust and water ingress, adjustable by 1mm for optimal weather sealing

Operation Instructions

To Lock the Door:

1. Close the door to engage the latch automatically.
2. Lift the handle to engage the locking points.
3. Turn the key to lock the system.

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle down to disengage the locking points.
3. A quarter turn of the key will retract the latch.

Corrosion Resistance

This lock has been corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST), ensuring long-lasting performance in various environments.

Product Specification

• Manufacturer: Lockmaster
• Spindle Size: 8mm
• Main Gearbox: Latch & deadbolt
• Spindle: Double 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1256mm
• Distance Between Outer Locking: 1570mm
• Height: 2200mm
• Top Hook to Spindle: 618mm
• Bottom Hook to Spindle: 638mm
• Top Roller to Spindle: 750mm
• Bottom Roller to Spindle: 820mm
• Door Material: UPVC, Aluminium

Measuring Guidelines

To ensure accurate measurements for your Lockmaster multipoint door lock, follow these guidelines:

Backset Measurement: To measure the backset, take a ruler and measure the distance from the edge of the door to the center of the lock cylinder. This will give you the backset size needed for your lock.

Centres Measurement: For measuring the centres (PZ), measure the distance between the center of the keyhole and the center of the handle hole. This is crucial for ensuring proper alignment and functionality of the locking mechanism.

Faceplate Measurement: To measure the faceplate, measure the width and height of the existing faceplate on your door. This will help you select the correct faceplate from the drop-down options.

Operation Selection: Choose the operation type from the drop-down menu based on your specific locking needs. This could include options like key operation, handle operation, or a combination of both.

By following these measurement guidelines, you can ensure that your Lockmaster multipoint door lock fits perfectly and operates smoothly.
